Control Valve Body Assembly

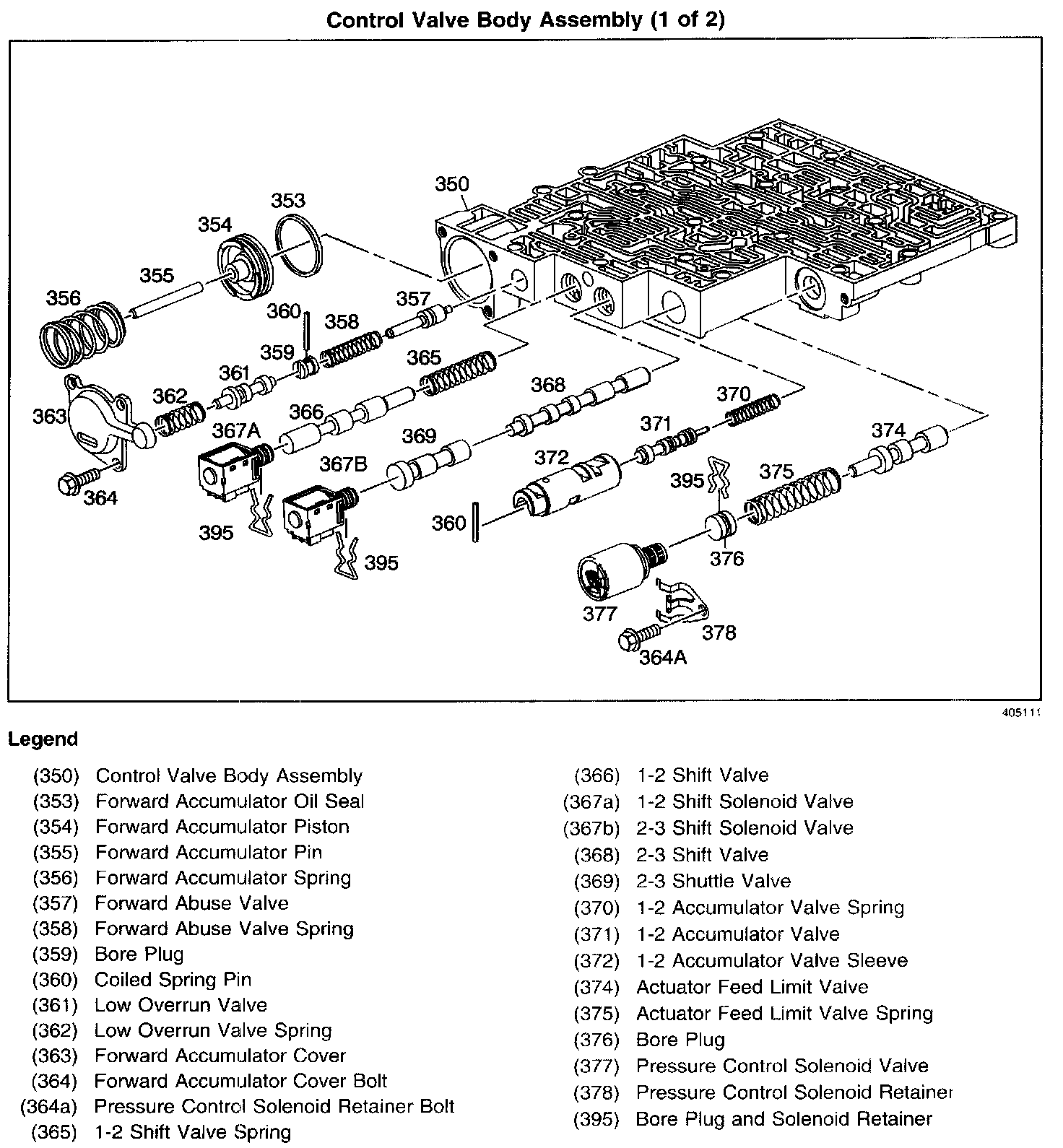

Control Valve Body Assembly(1 Of 2):

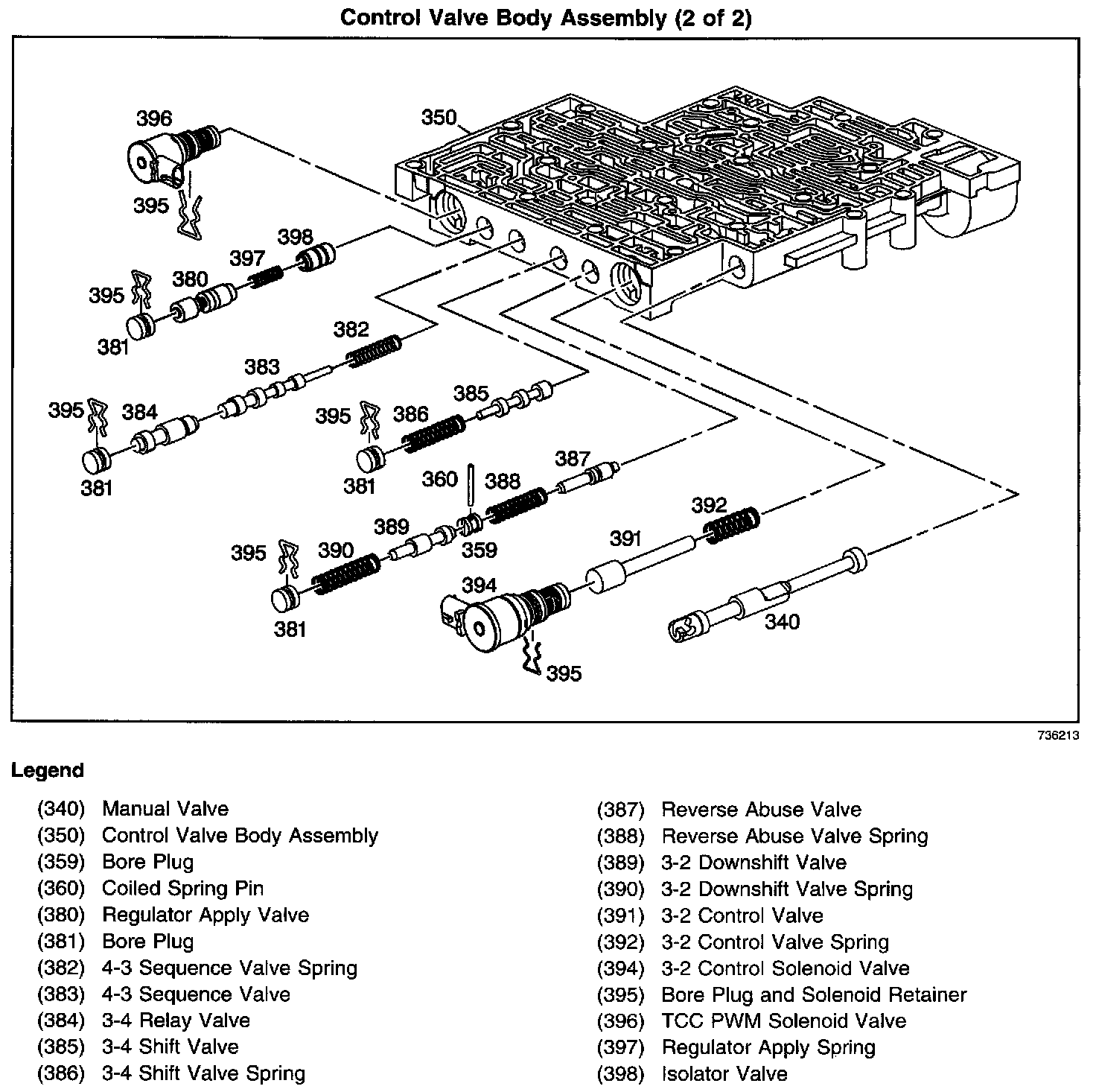

Control Valve Body Assembly(2 Of 2):
