Internal Parts

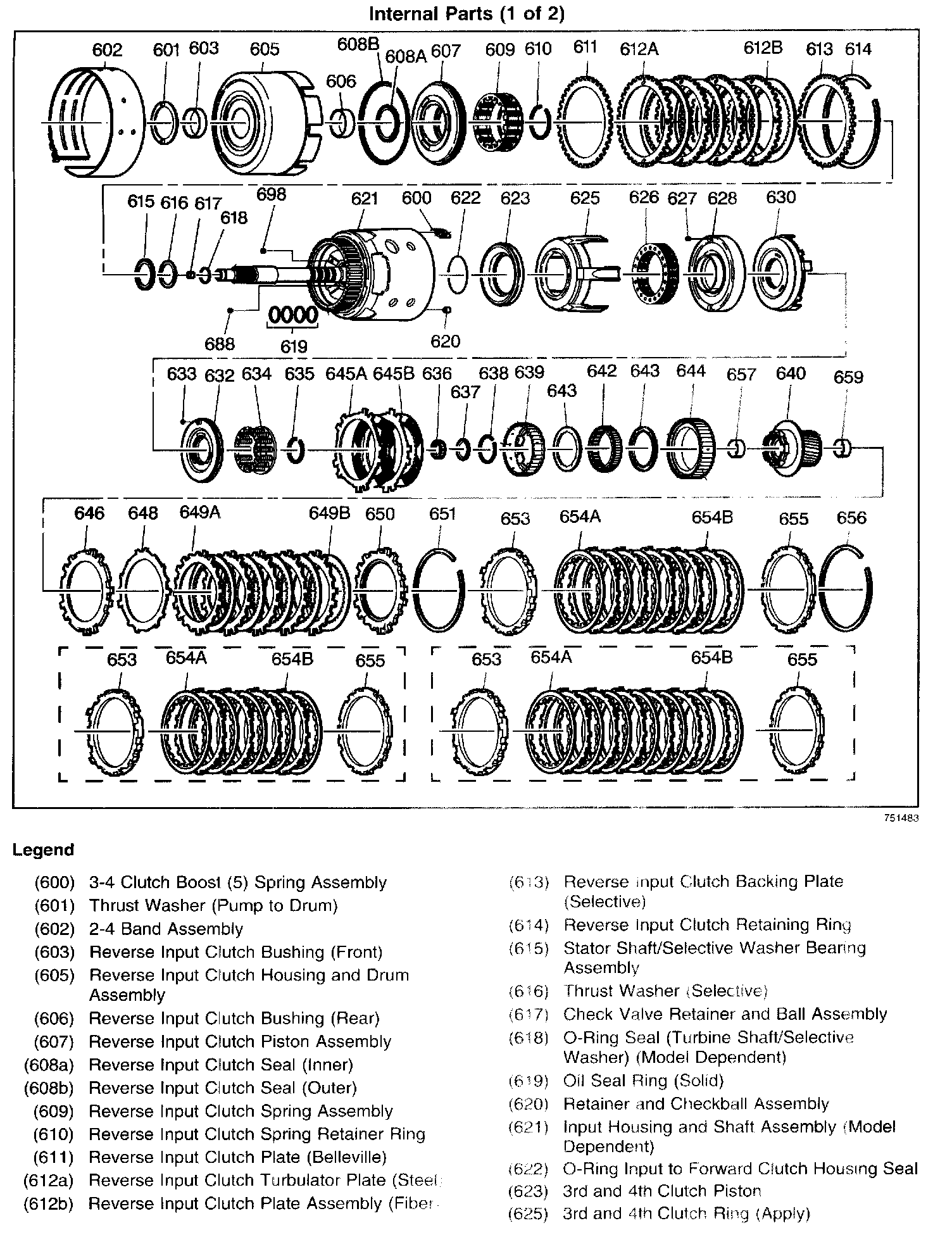

Internal Parts (1 Of 2) Part 1:

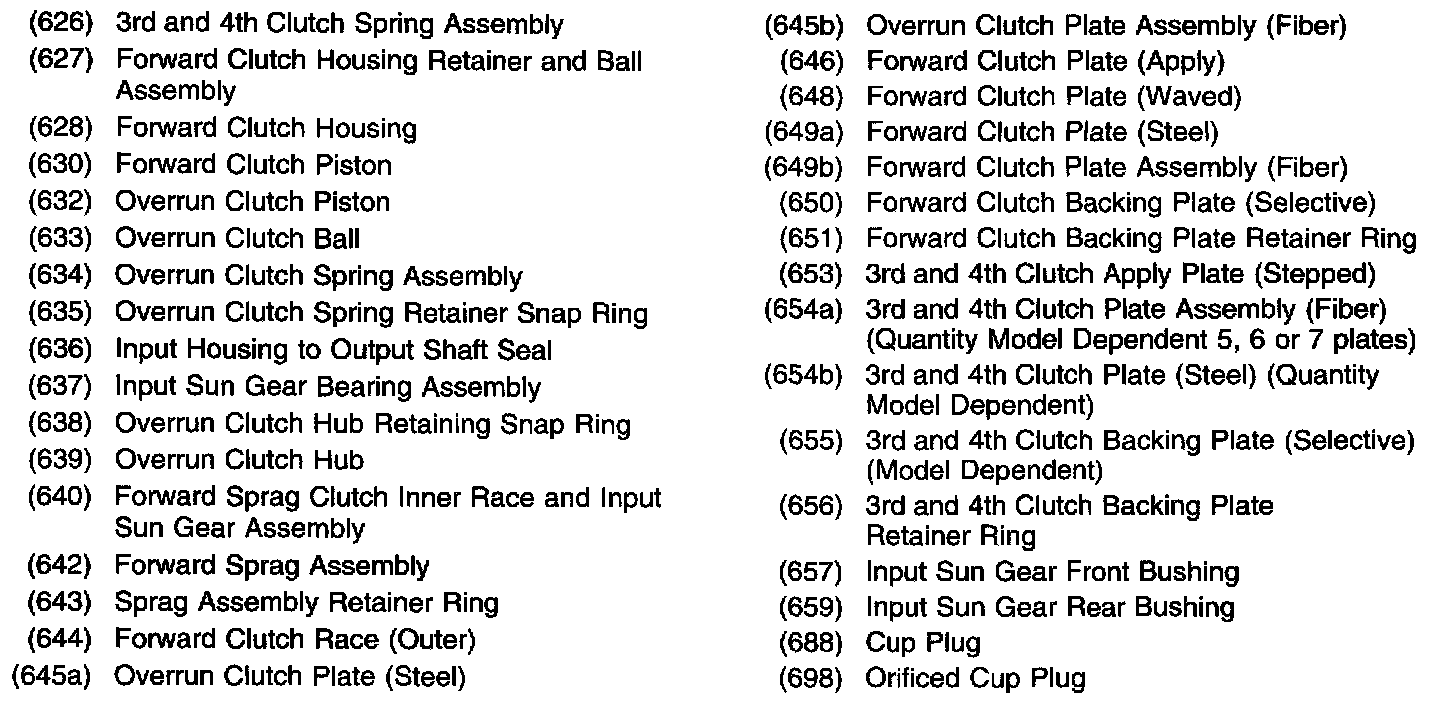

Internal Parts (1 Of 2) Part 2:

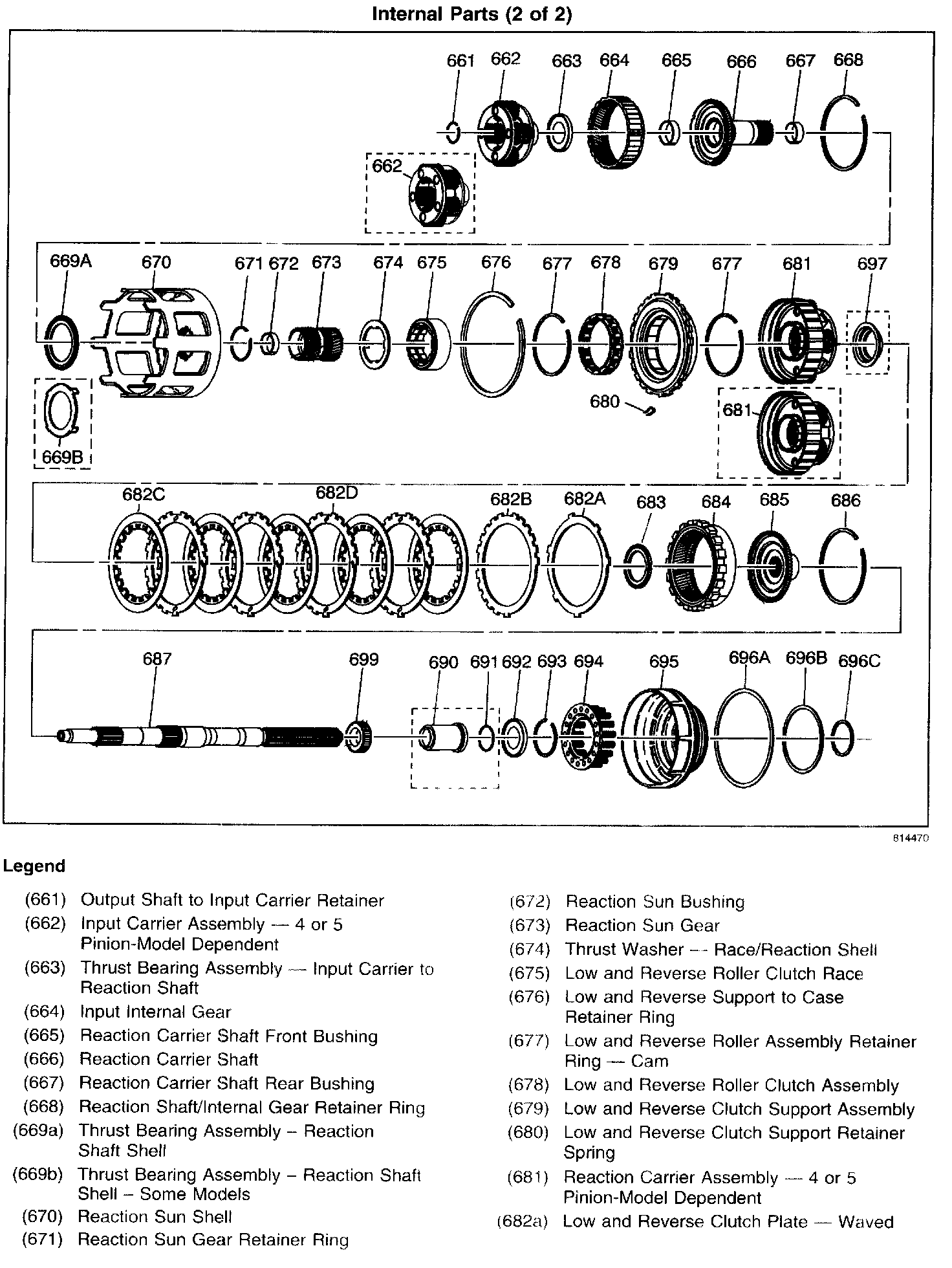

Internal Parts (2 Of 2) Part 1:

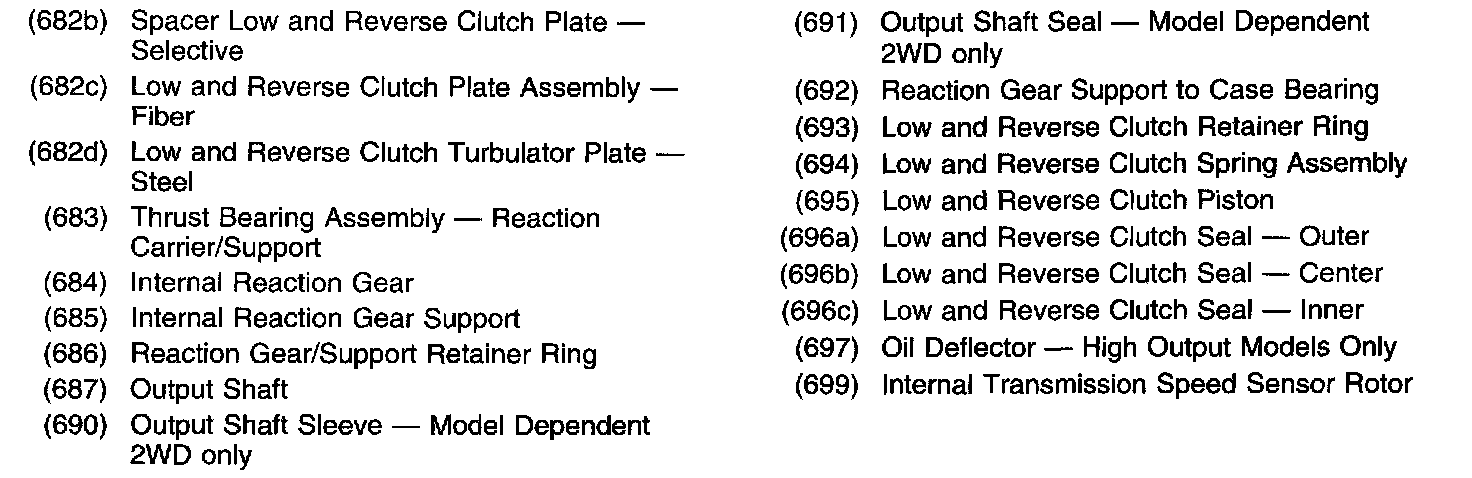

Internal Parts (2 Of 2) Part 2:
