Front Drive Axle

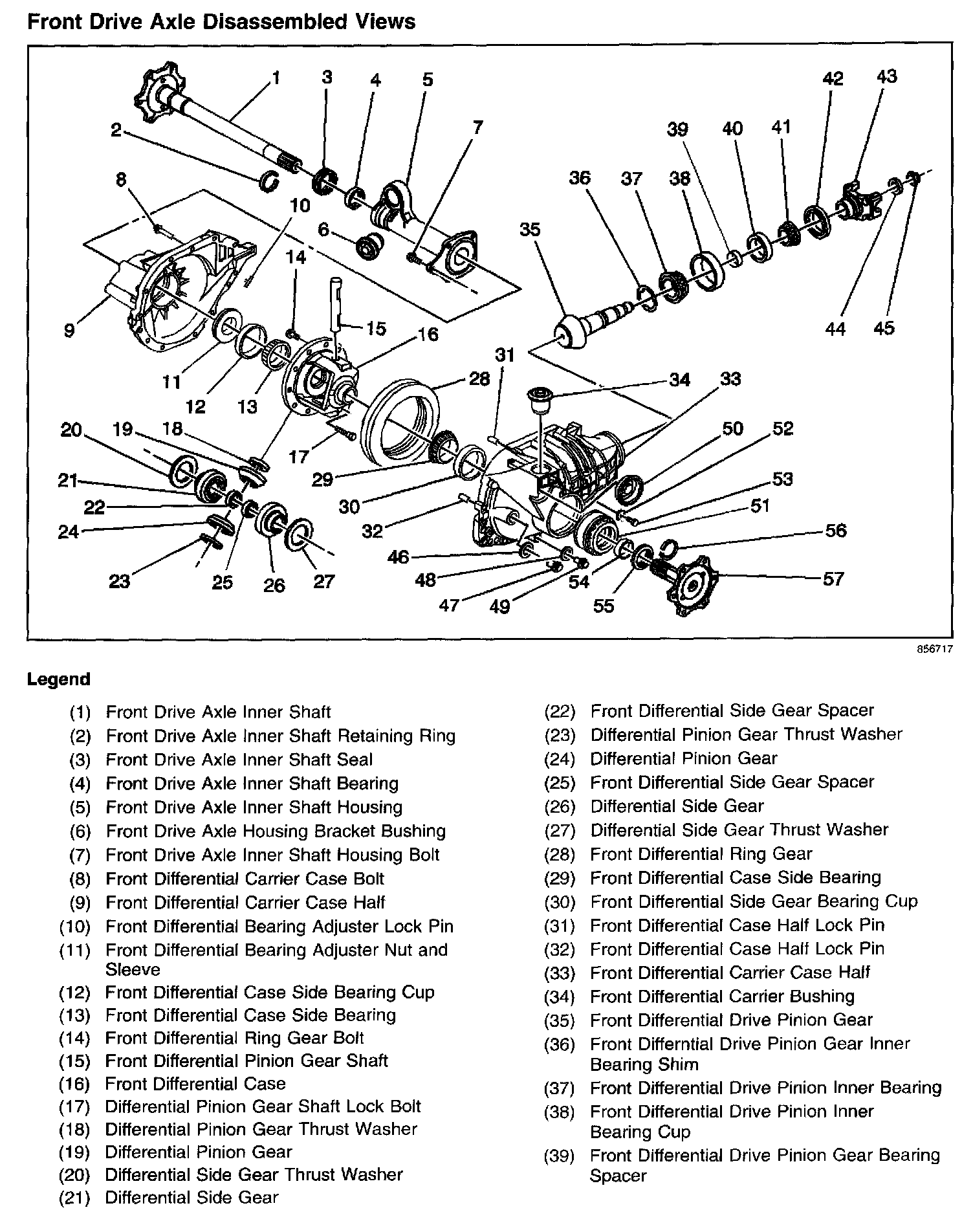

Front Drive Axle Disassembled Views Part 1:

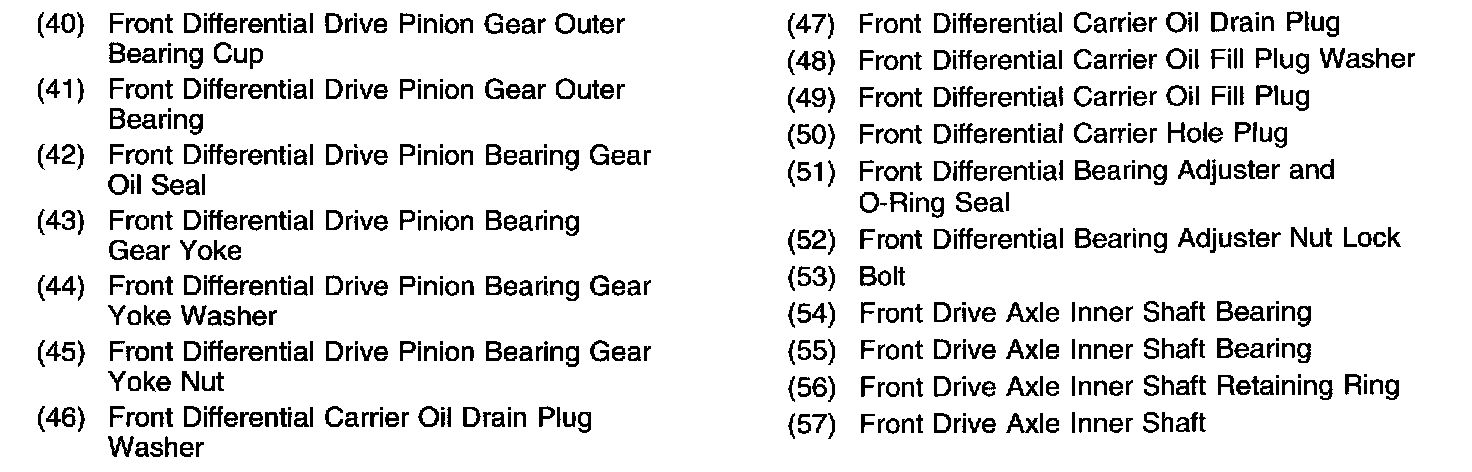

Front Drive Axle Disassembled Views Part 2:
