Liftgate Views

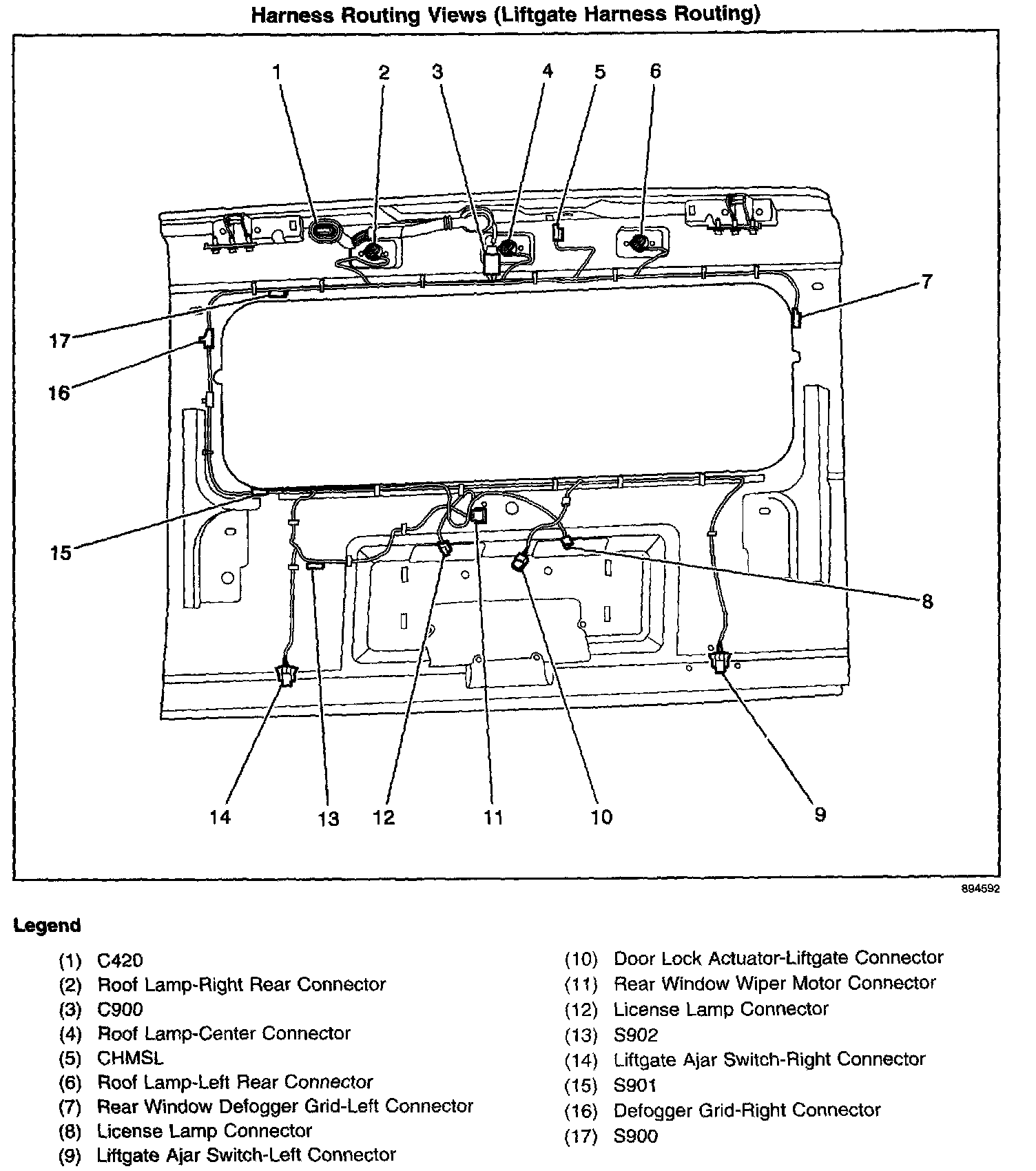

Harness Routing Views (Liftgate Harness Routing):

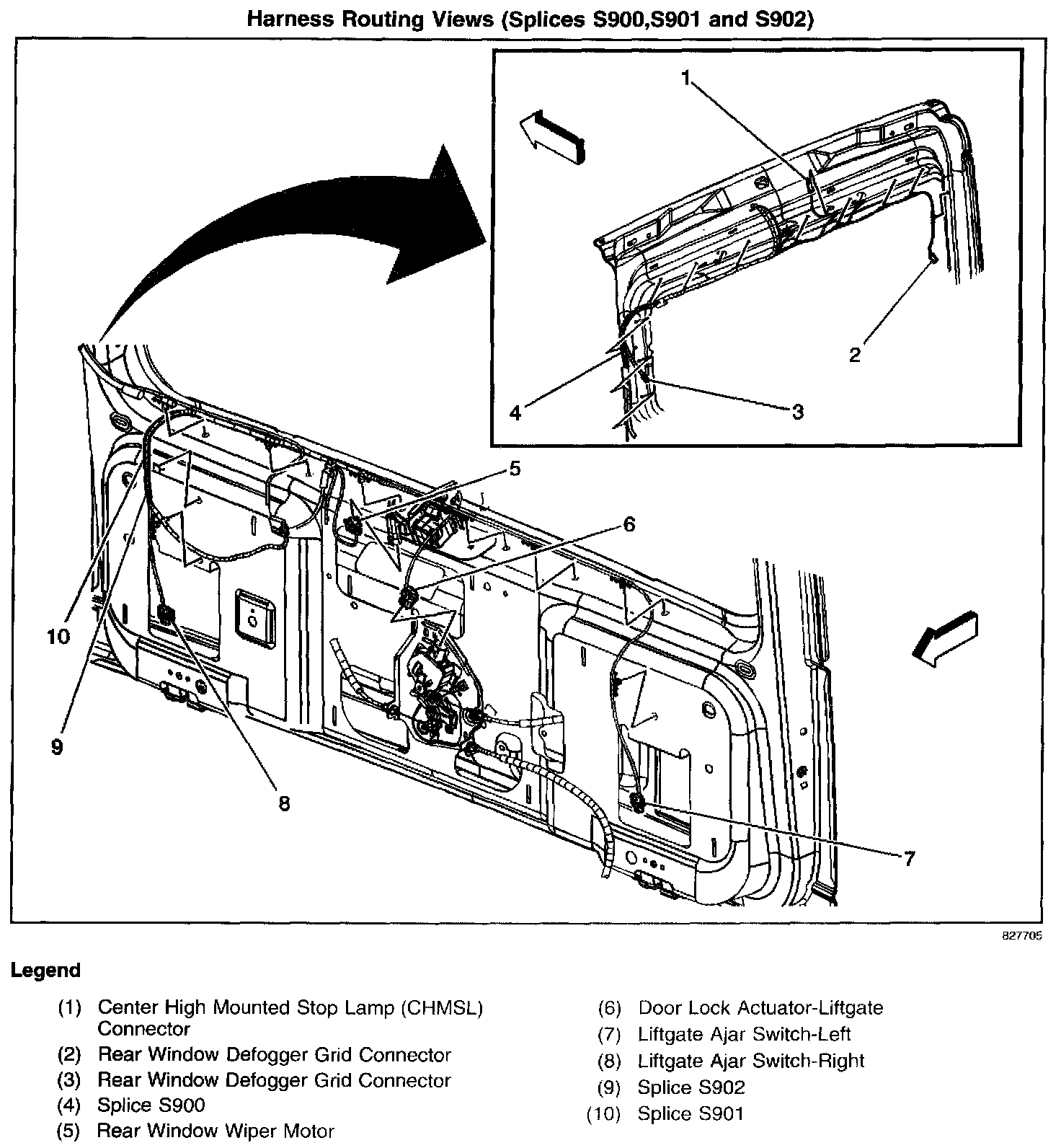

Harness Routing Views (Splices S900, S901 And S902):
