Junction Block - I/P Wire Entry

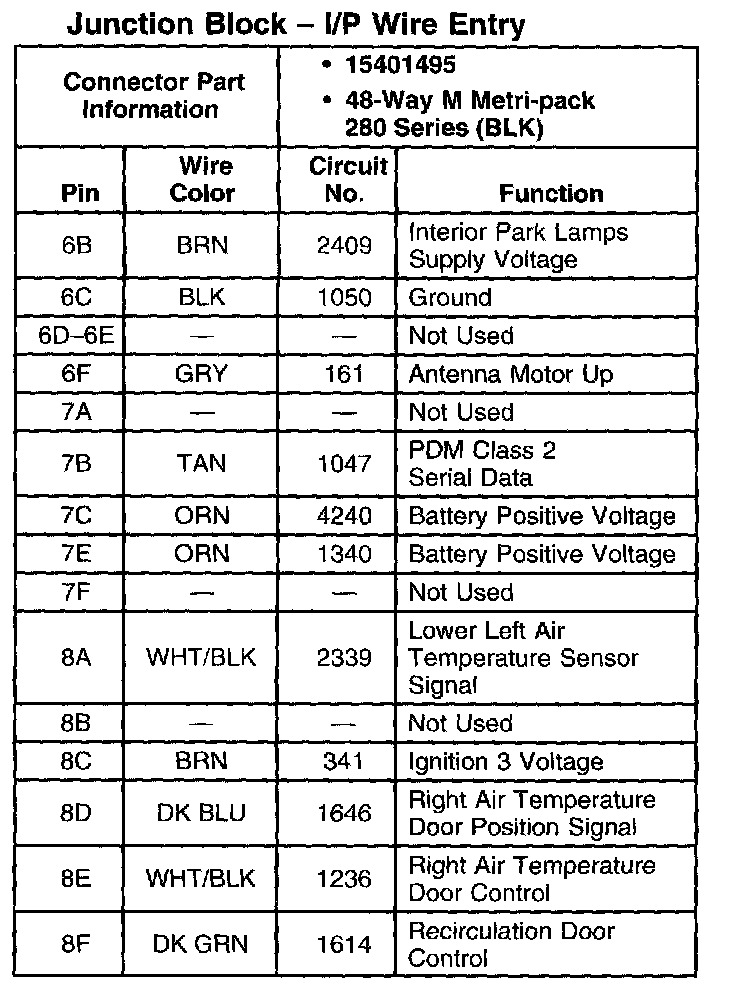

Junction Block - I/P Wire Entry Part 1:

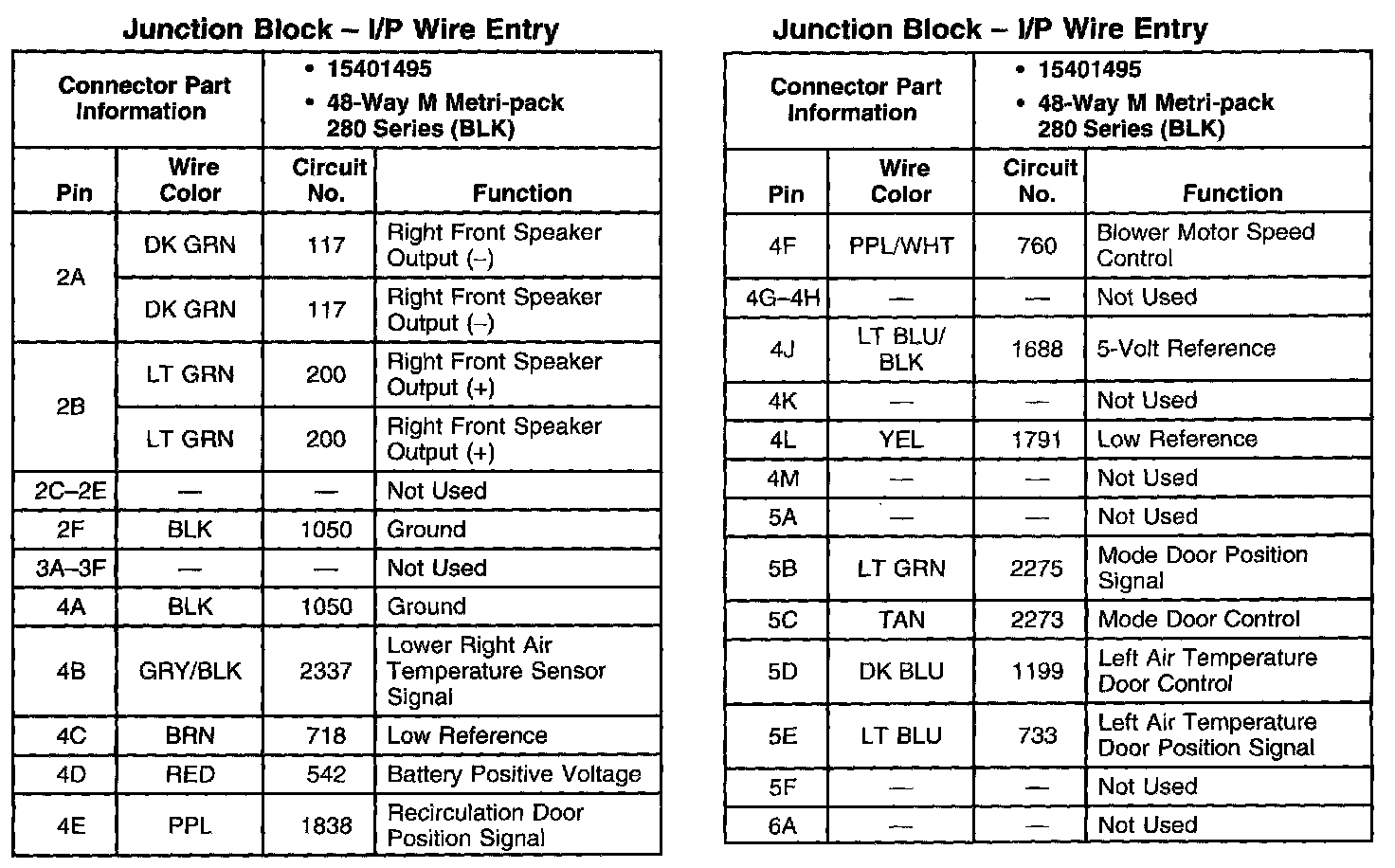

Junction Block - I/P Wire Entry Part 2:
