Ignition Coil: Diagrams

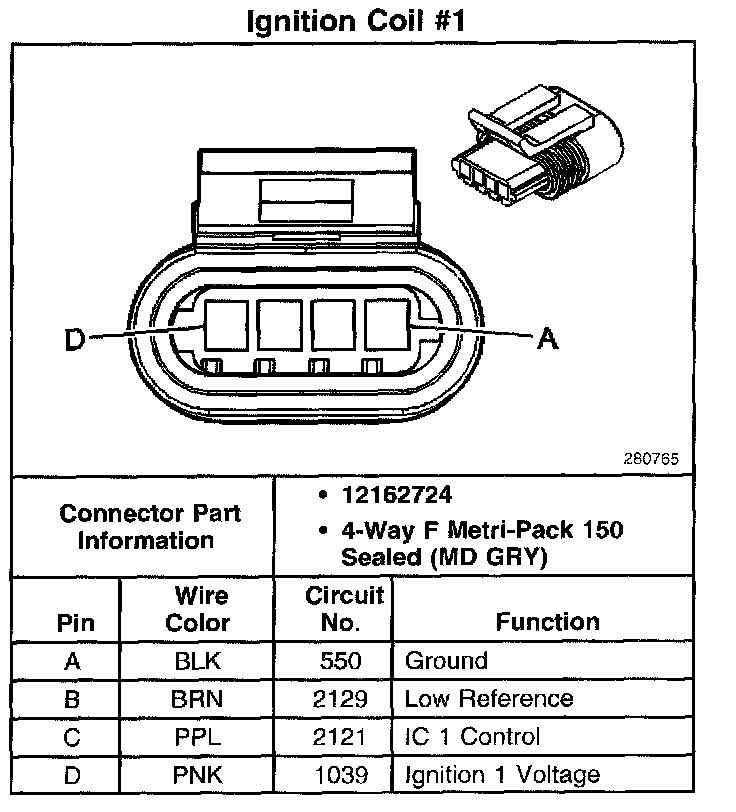

Ignition Coil #1:

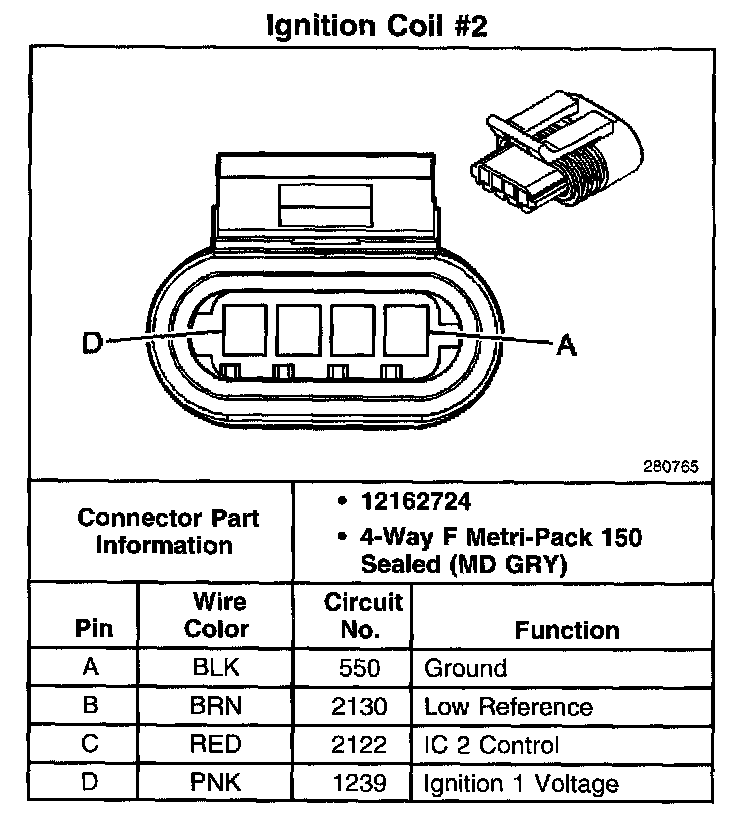

Ignition Coil #2:




Ignition Coil #3:

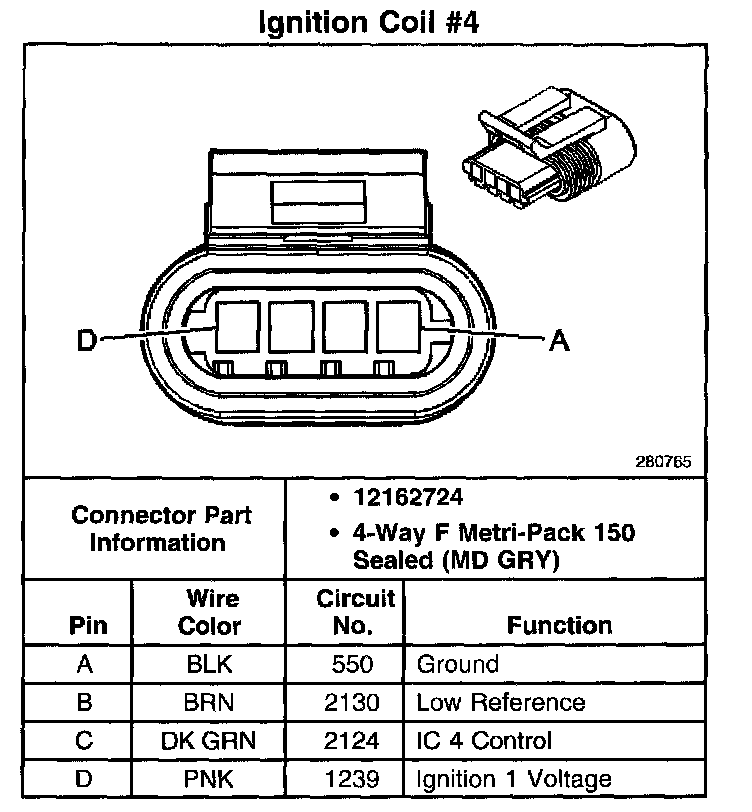

Ignition Coil #4:

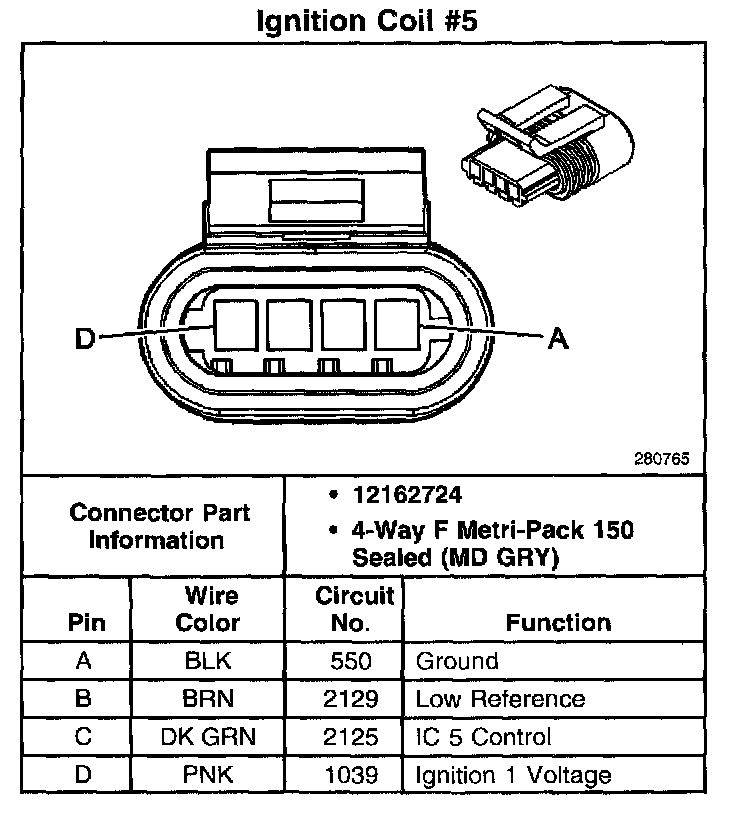

Ignition Coil #5:

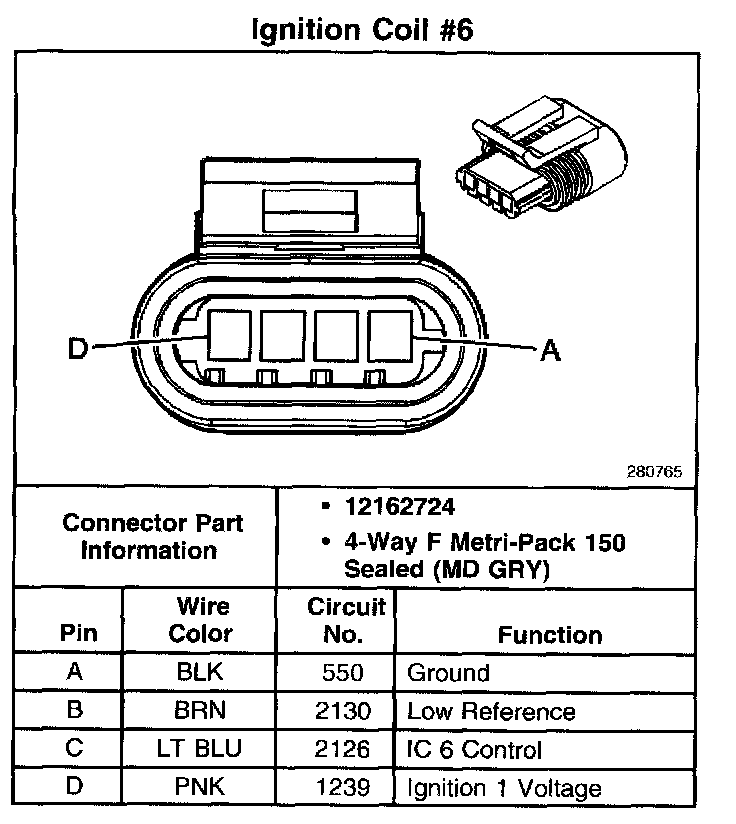

Ignition Coil #6:

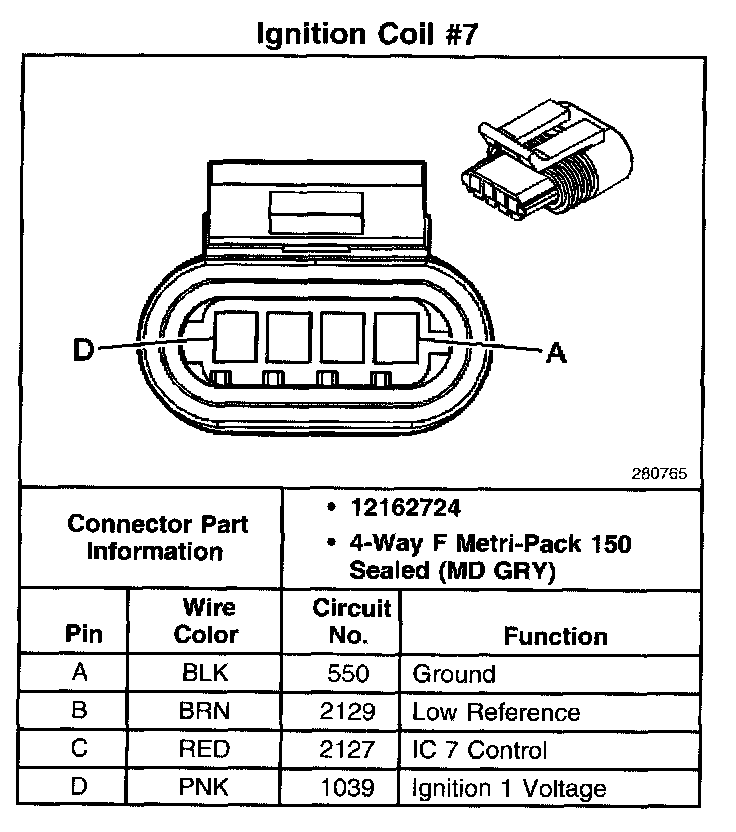

Ignition Coil #7:




Ignition Coil #8:
