Scan Tool Data List

TRANSMISSION SCAN TOOL DATA LIST
Use the scan tool data list under the following conditions:
- The Diagnostic System Check - Automatic Transmission is complete.
- The on-board diagnostics are functioning properly.
- No DTCs are present.

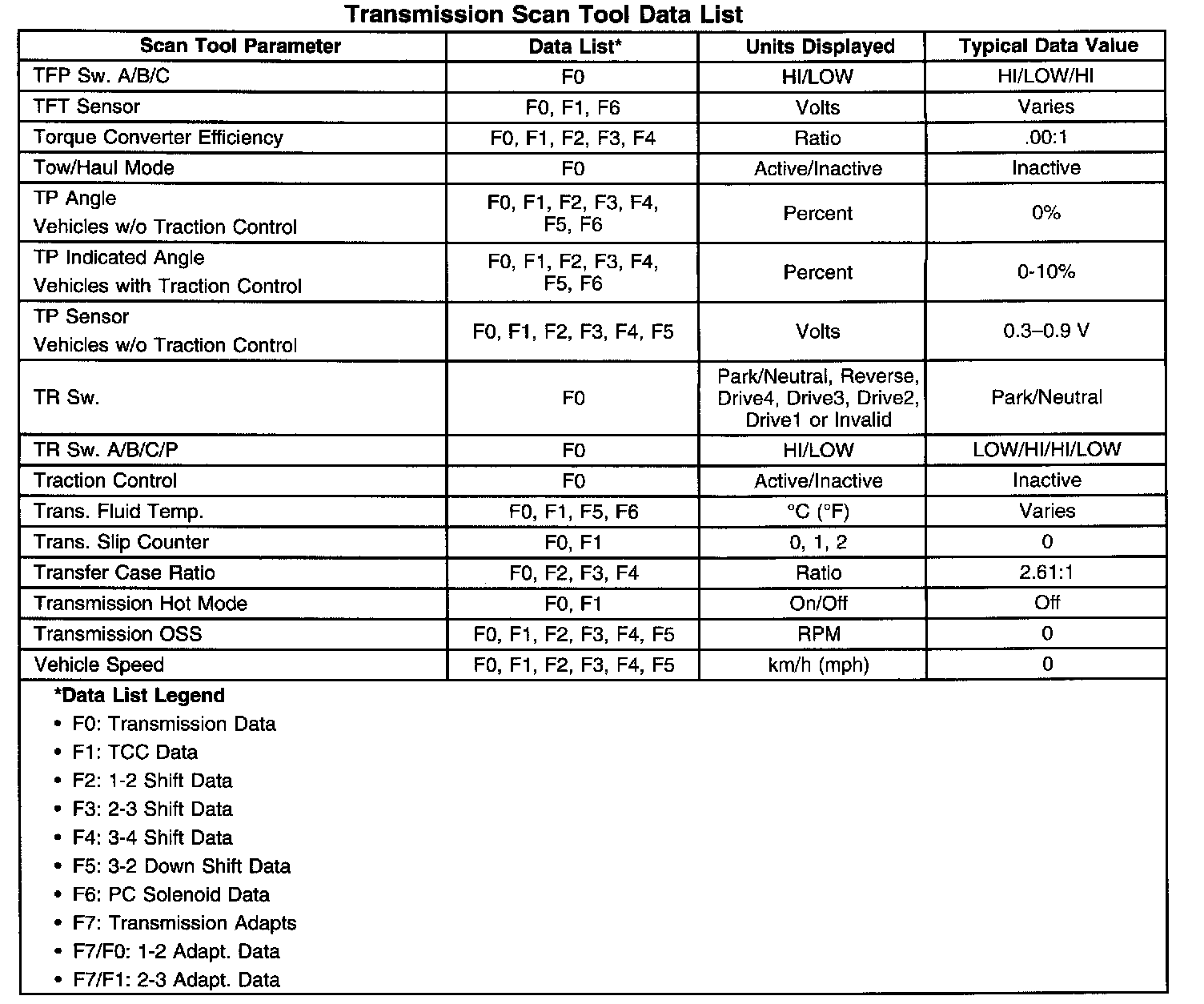

Transmission Scan Tool Data List Part 1:

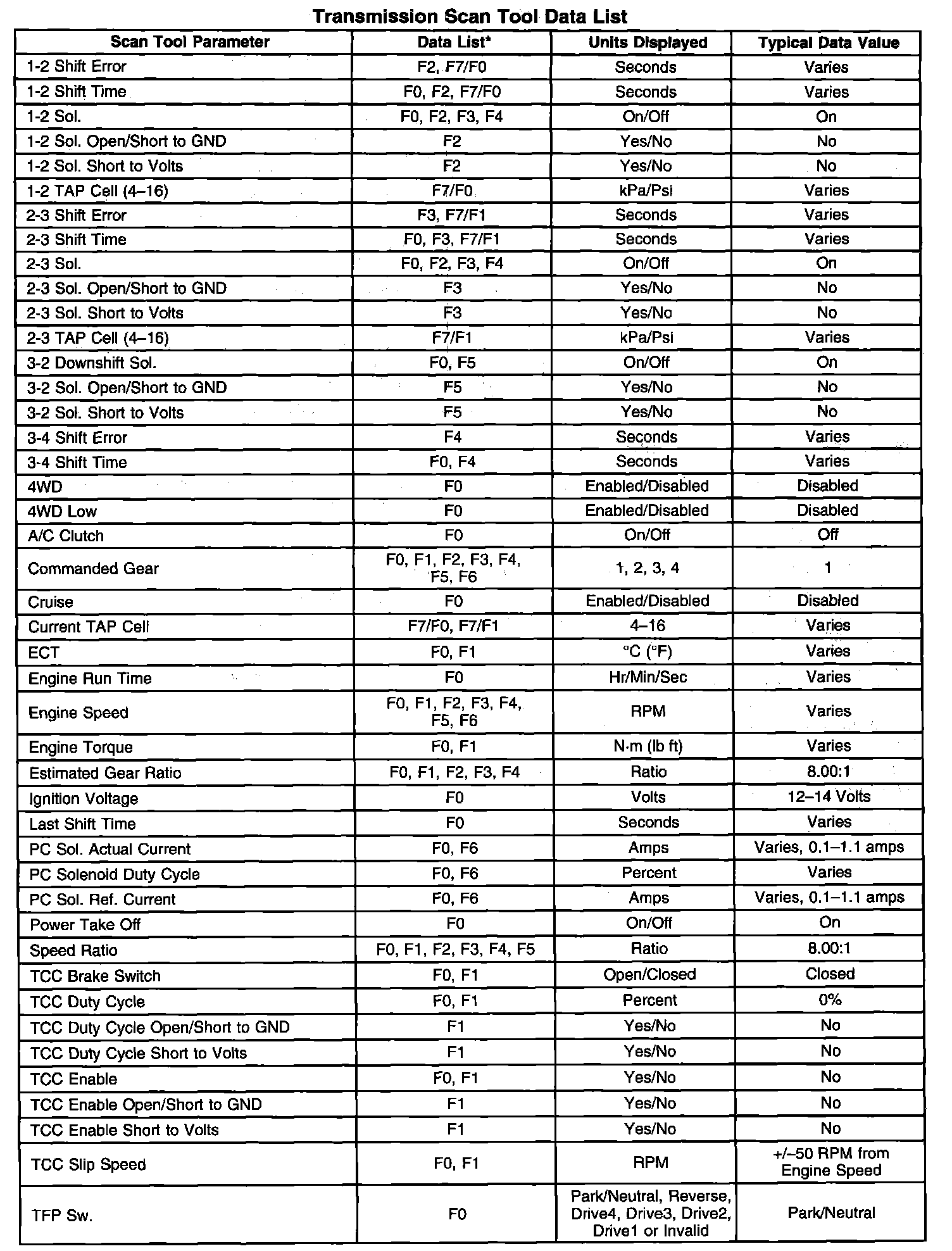

Transmission Scan Tool Data List Part 2:

The values shown represent a typical display recorded from a properly functioning system.

IMPORTANT: Do not use a scan tool that displays faulty data. Report the condition to the scan tool manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.

Only the parameters listed here are used for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis.

Scan tool values were recorded under the following conditions:
- Engine at idle
- Upper radiator hose hot
- Closed throttle
- Transmission in PARK
- Closed Loop operation
- Accessories OFF
- Brake pedal not applied
