Front Passenger Door Module (FPDM) Connector Locations

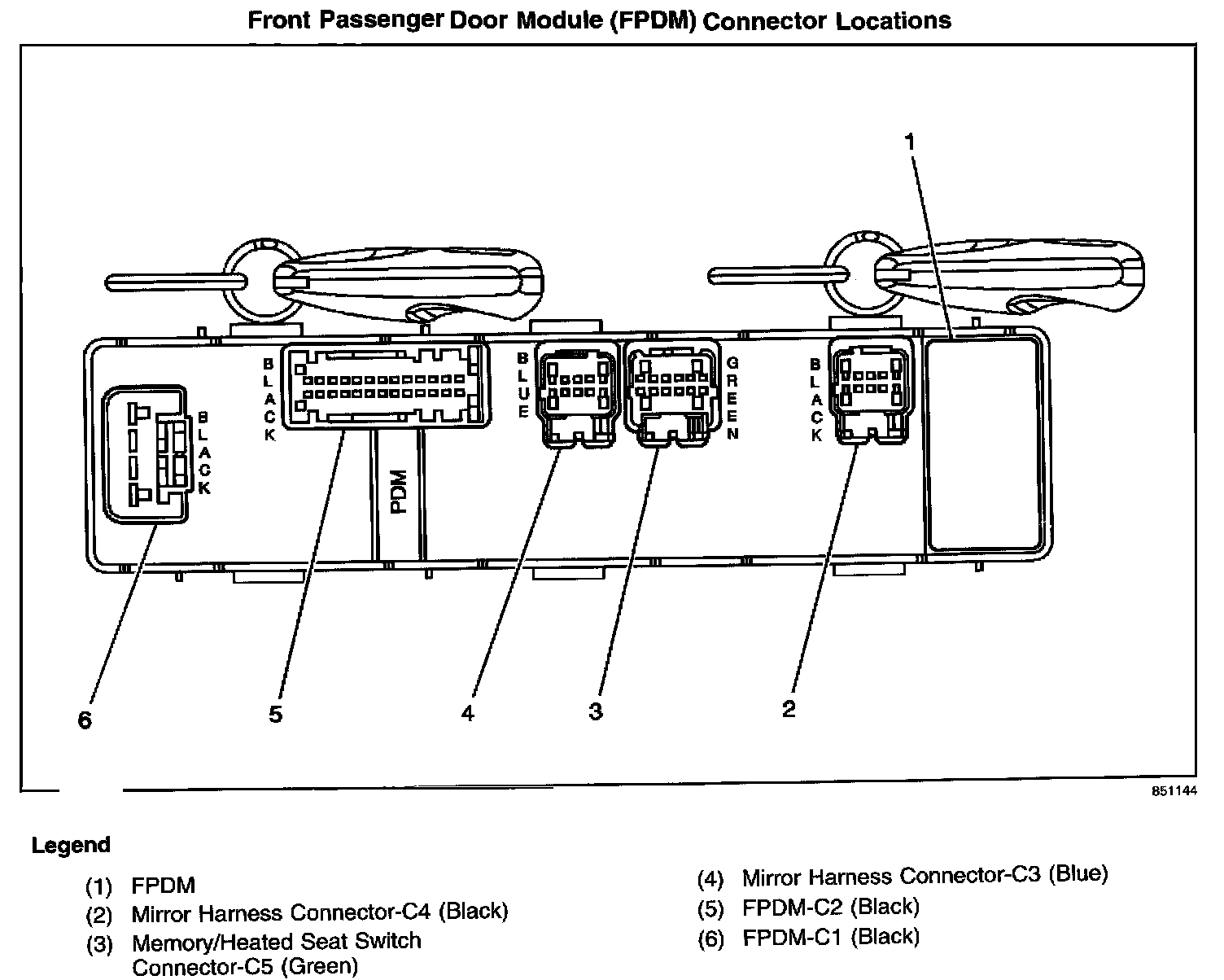

Front Passenger Door Module(FPDM) Connector Locations:
