Installation Procedure

  1. Install the body control module (1) into the bracket.

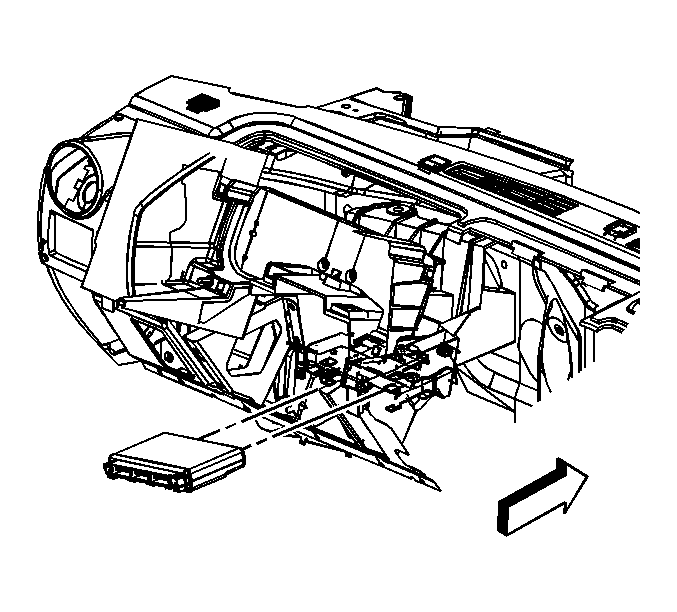

    Fig 1: Body Control Module
    GM832814Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P carrier. Refer to Instrument Panel (I/P) Carrier Replacement in Instrument Panel, Gages and Console.
  3. Connect the battery negative cables. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery) in Engine Electrical.
  4. Setup the body control modules customized options. Refer to Body Control Module (BCM) Programming/RPO Configuration .
