Point-To-Point Measurements
Point-to-point measurements are for reference only. Use these measurements for diagnosis for validating. Point-to-point measurements do not afford the accuracy that 3-Dimensional measuring systems have. Point-to-point measurements are duplicated with tram bar pointers set at equal lengths. All holes, slots and fasteners are measured to the center.

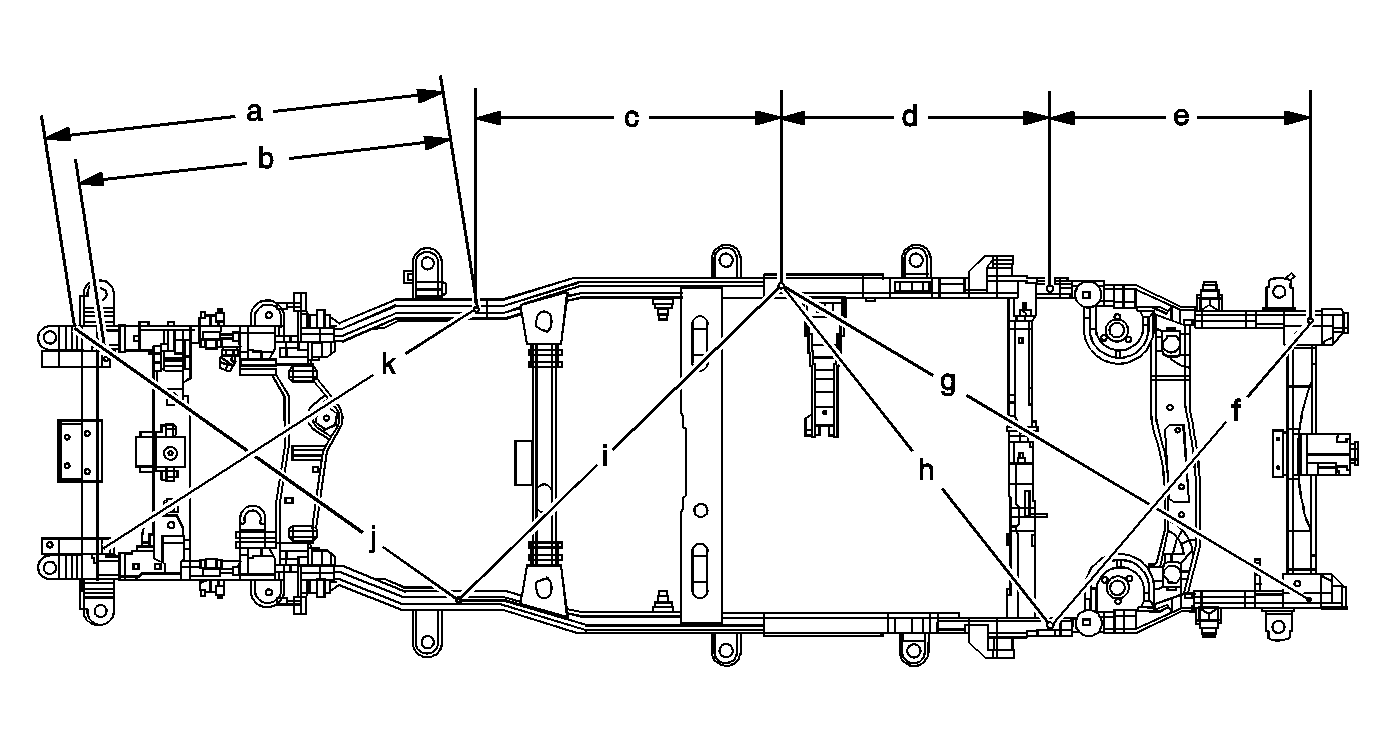

Point-To-Point Frame Measurements
| Location | Point to Point |
|---|---|
| a | 1417 mm |
| b | 1298 mm |
| c | 1122 mm |
| d | 982 mm |
| e | 950 mm |
| f | 1449 mm |
| g | 2220 mm |
| h | 1550 mm |
| i | 1585 mm |
| j | 1548 mm |
| k | 1719 mm |
