Throttle Actuator Control Module: Removal

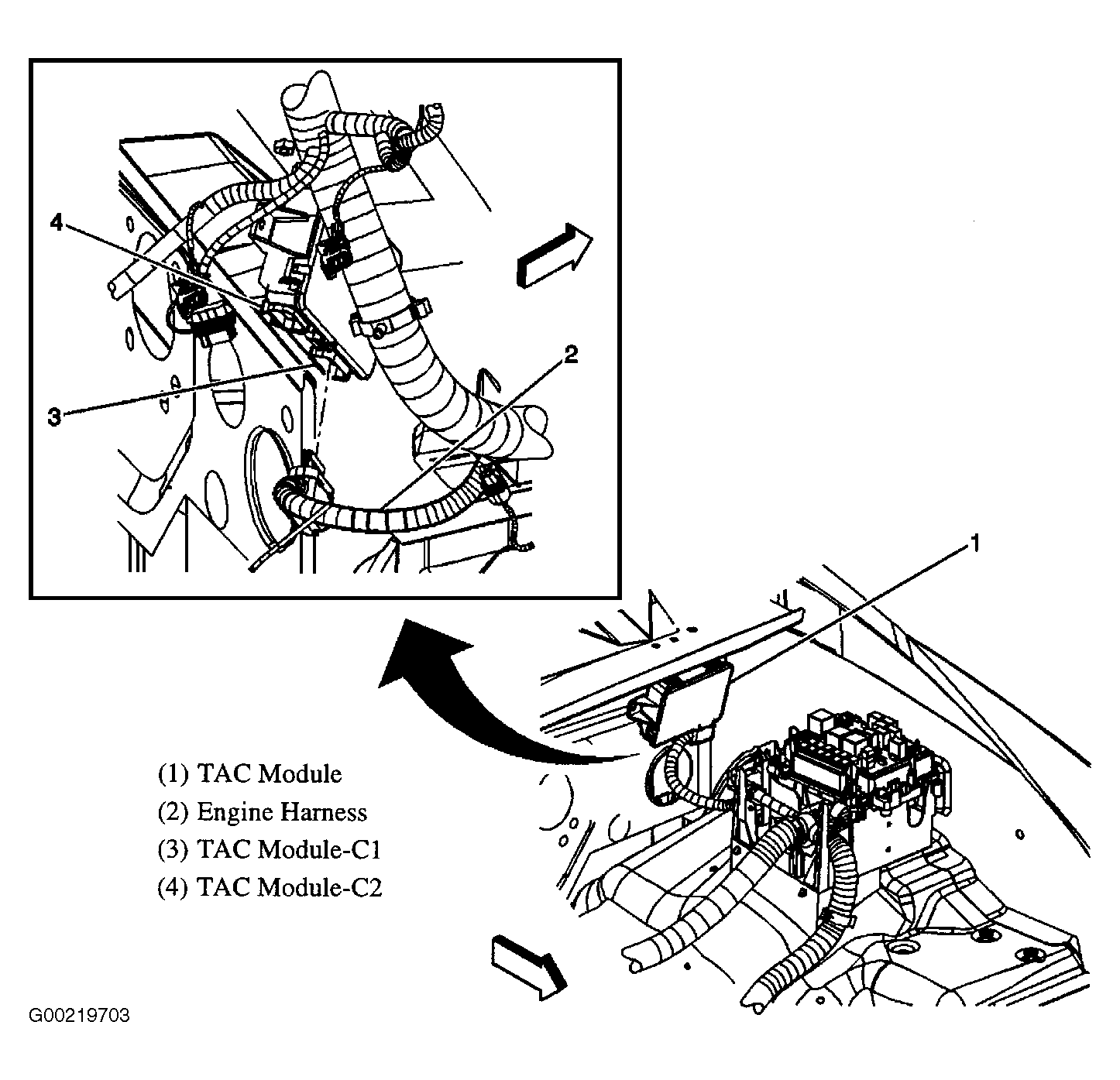

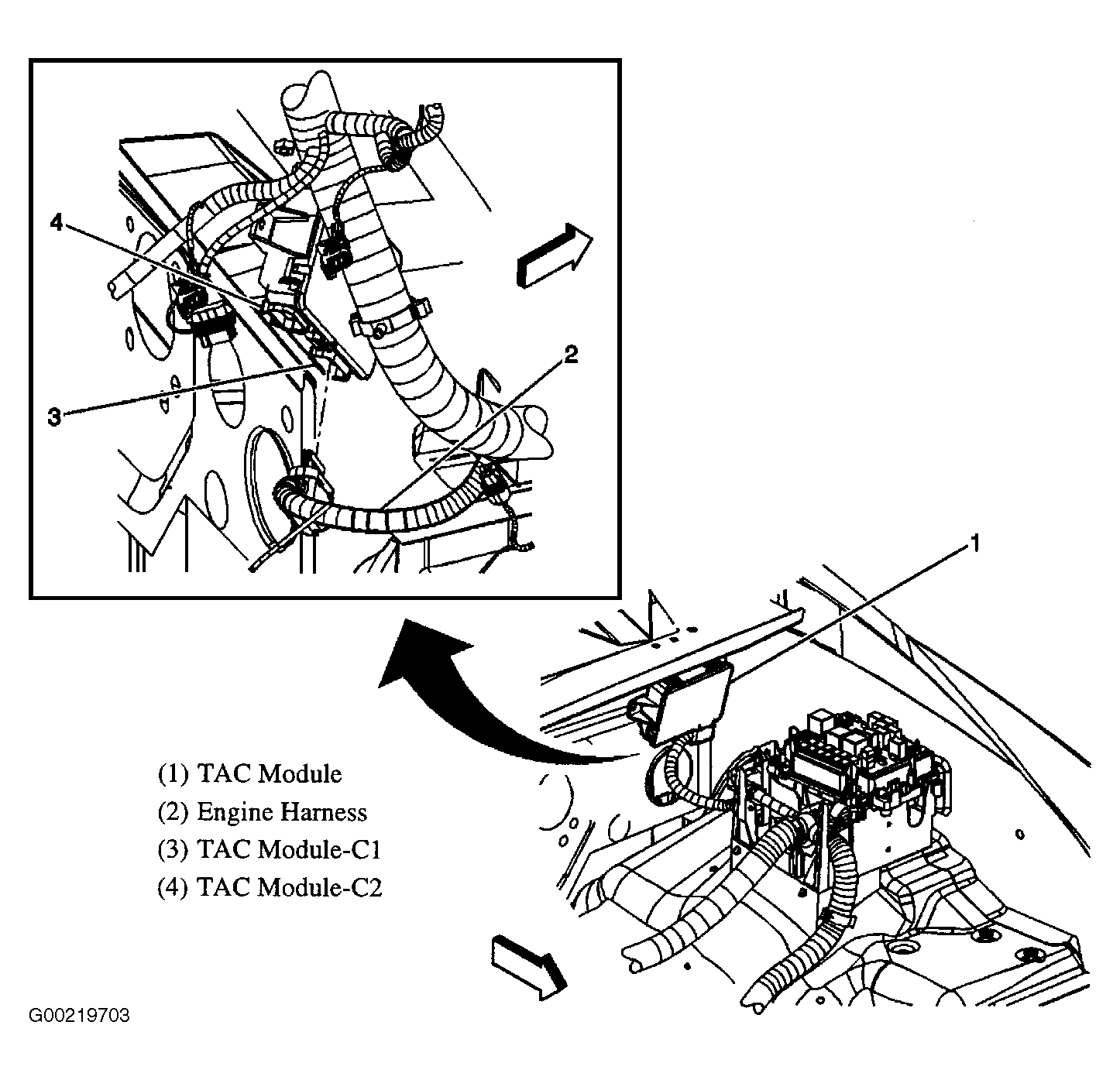

Release retaining tab on left side of Throttle Actuator Control (TAC) module. TAC module is located on left rear of engine compartment, near underhood fuse/relay block. See Figure. Remove TAC module mounting nuts. Remove TAC module. Disconnect TAC module harness connectors.
