Installation Procedure

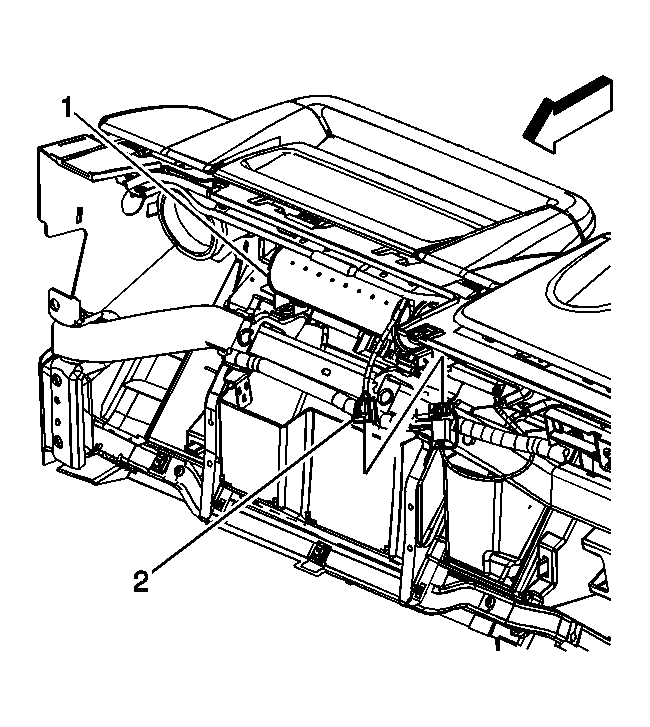

Fig 1: Inflatable Restraint I/P Module

Courtesy of GENERAL MOTORS CORP.

Install the inflatable restraint I/P module (1) to the mounting bracket through the front of the instrument panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the fasteners (2) to the inflatable restraint I/P module.
Tighten: Tighten the fasteners to 10 N.m (89 lb in).
Enable the SIR system. Refer to SIR Disabling and Enabling Zones .
Install the yellow connector to the I/P.
Install the trim panel to the substraight. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory Right in Instrument Panel, Gages and Console.
