Installation Procedure

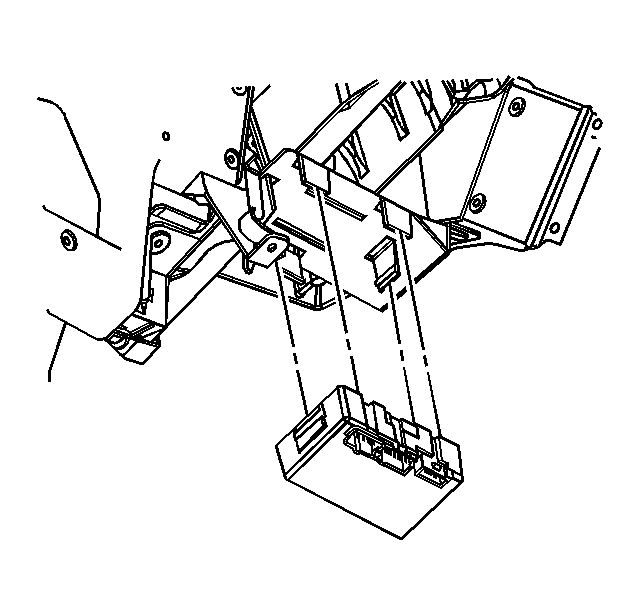

    Fig 1: Transfer Case Shift Control Module
    GM860519Courtesy of GENERAL MOTORS CORP.
  1. Install the shift control module to the vehicle.
  2. Connect the shift control module electrical connectors.
  3. Install the knee bolster. Refer to Trim Panel Replacement - Knee Bolster .
  4. Start the engine and test the automatic transfer case system for proper shift operation.
