Body Control System Component Views

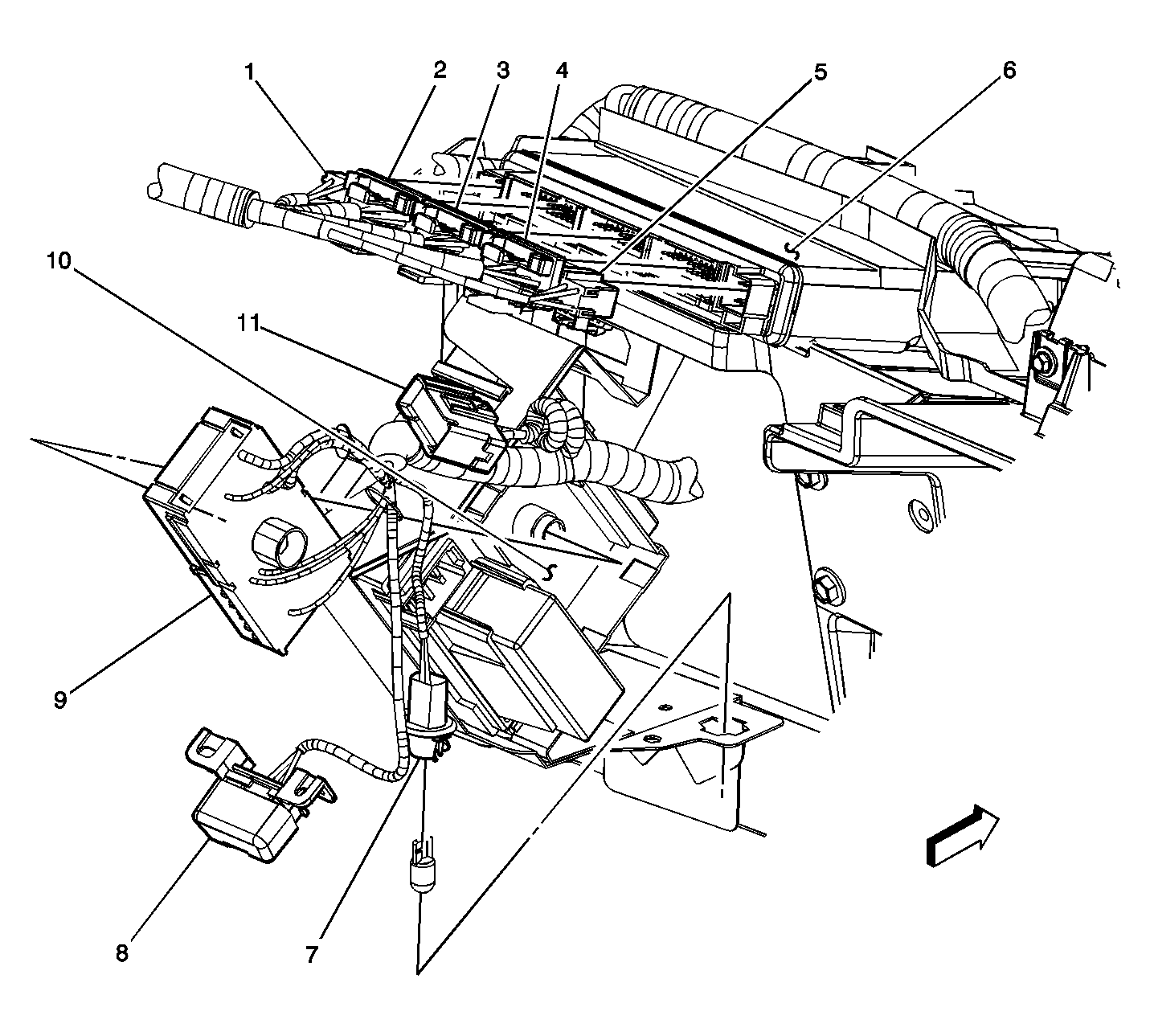

Fig 1: I/P Harness And Body Control Module (BCM) Component Views

GM819776

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	BCM-C1
2	BCM-C2
3	BCM-C3
4	BCM-C4
5	BCM-C5
6	Body Control Module (BCM)
7	Footwell Courtesy Lamp-Left
8	Data Link Connector (DLC)
9	Fuse Block-I/P-C1
10	Fuse Block-I/P Center Block
11	Splice Pack SP205
