Body Control System Schematics

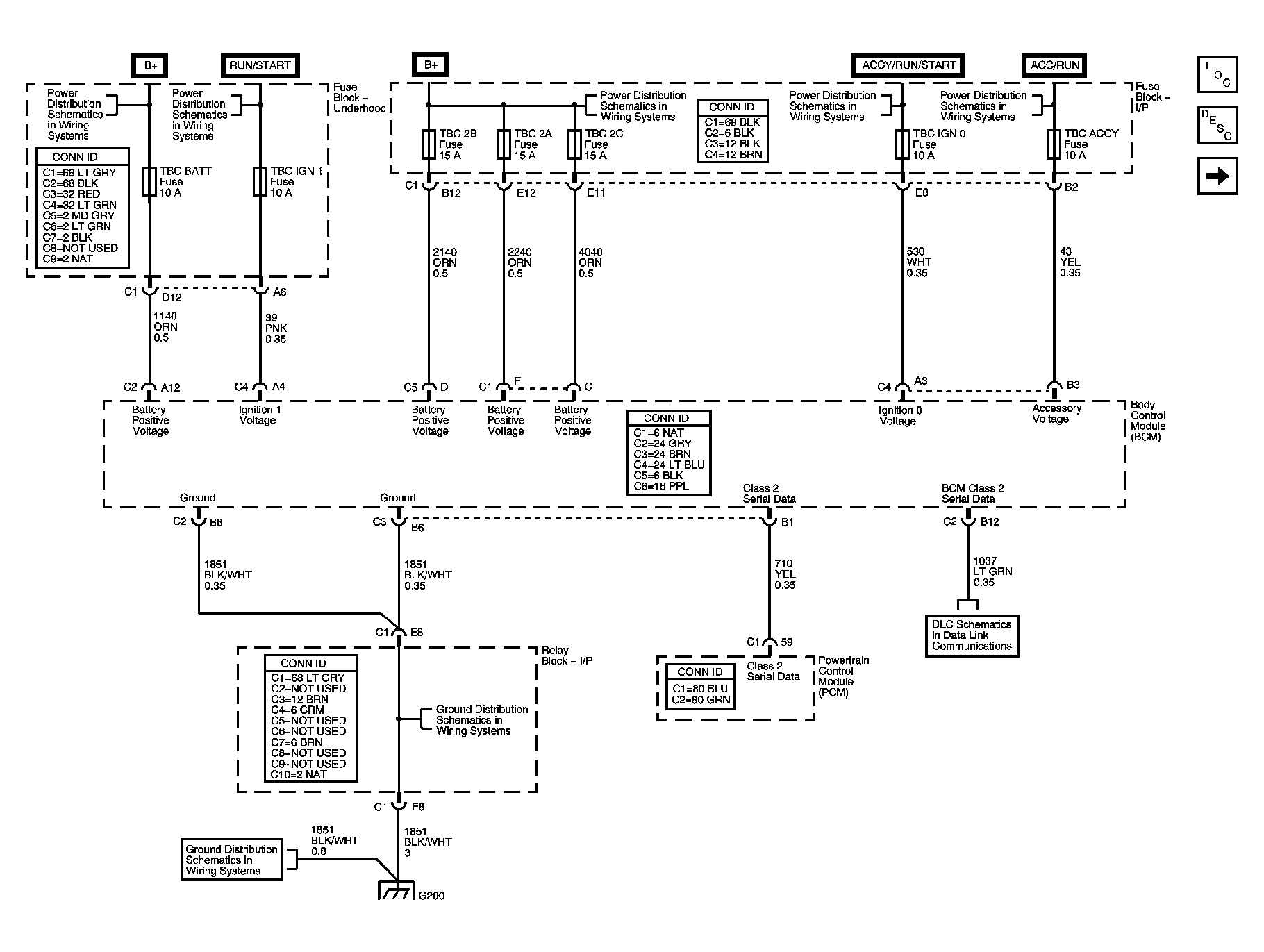

Fig 1: Power, Ground, and Serial Data Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

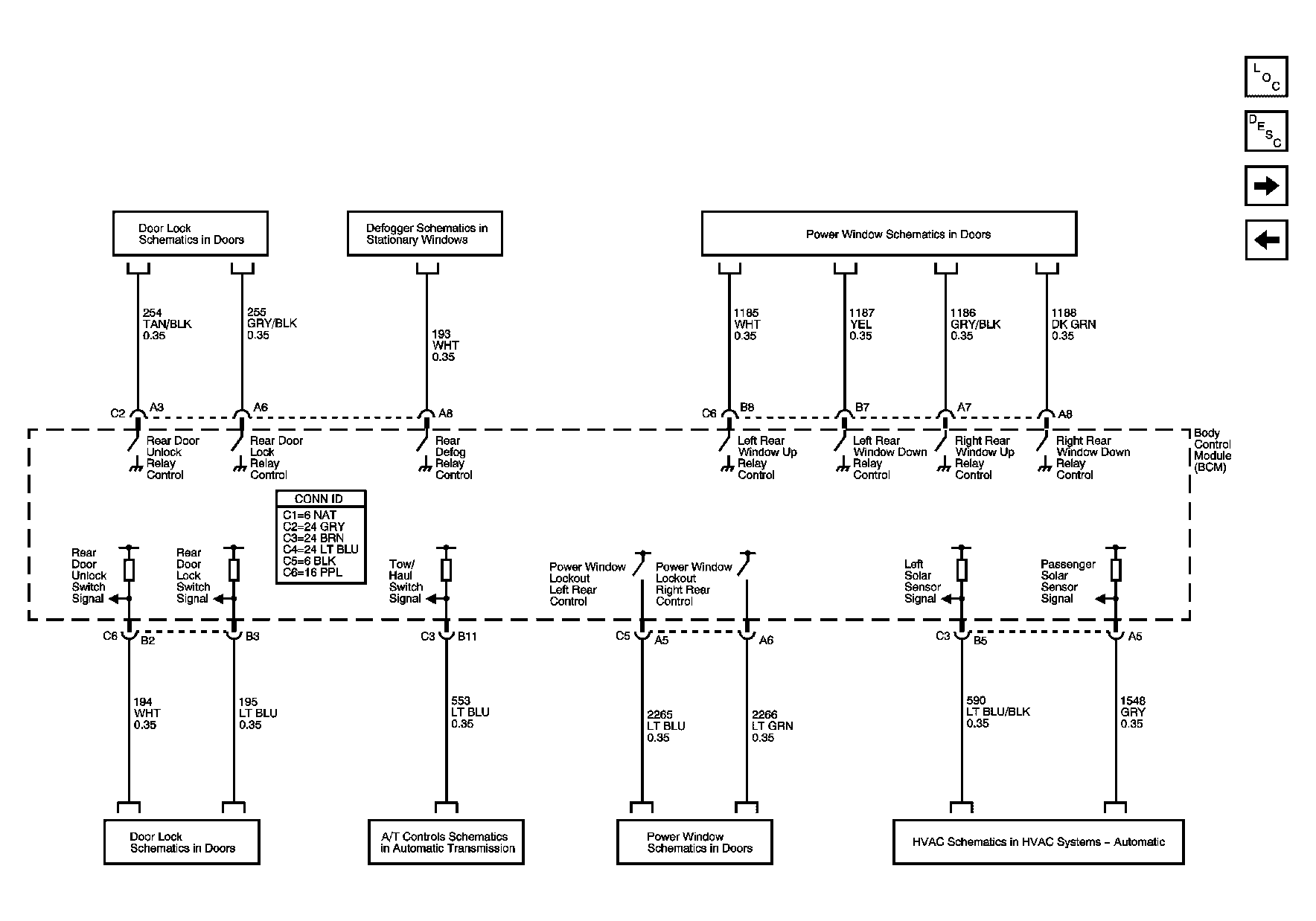

Fig 2: Power Windows and Door Locks, HVAC, and A/T Controls Schematic

Courtesy of GENERAL MOTORS CORP.

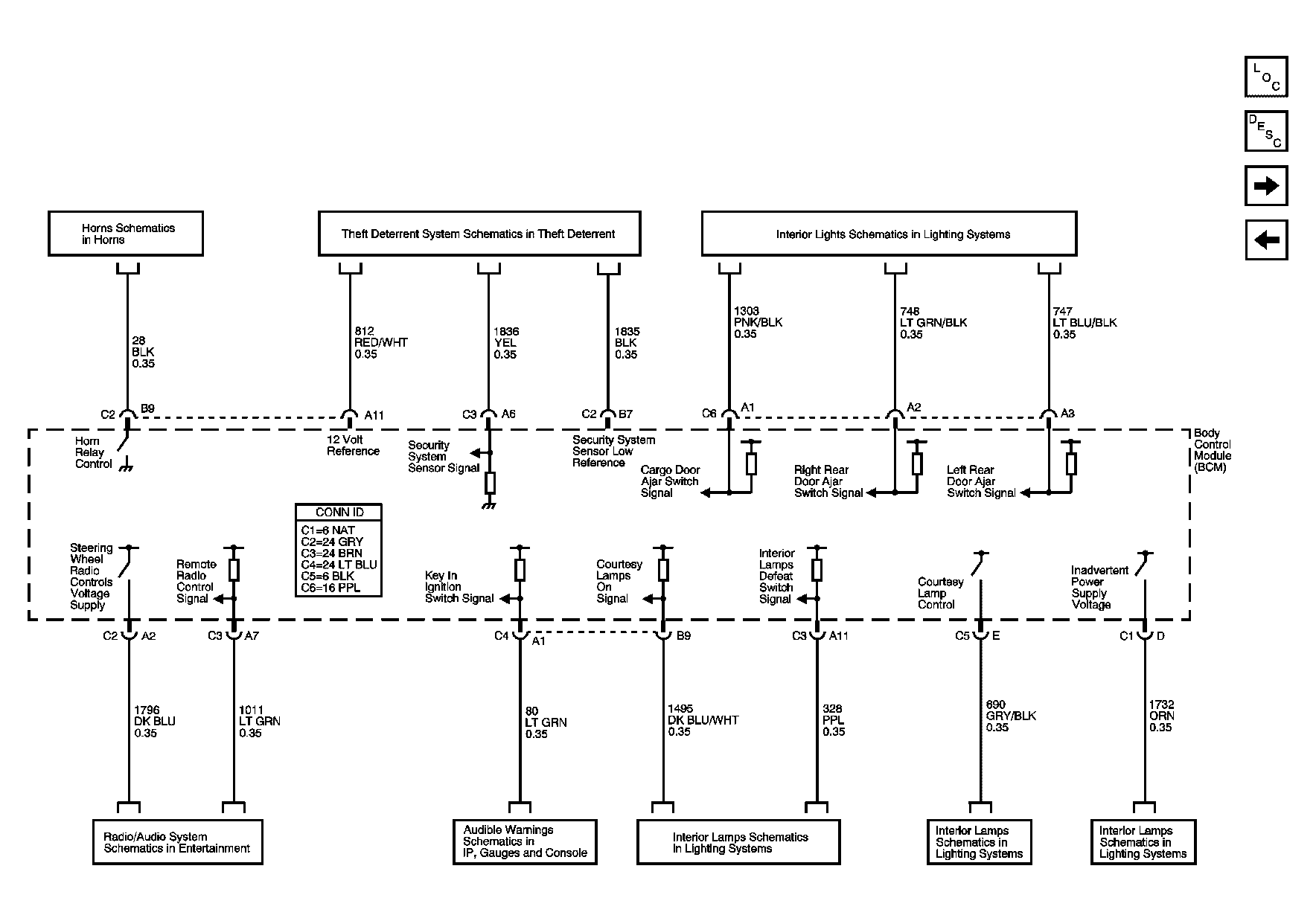

Fig 3: Interior Lights, Horns, Entertainment, and Theft Deterrent Schematic

Courtesy of GENERAL MOTORS CORP.

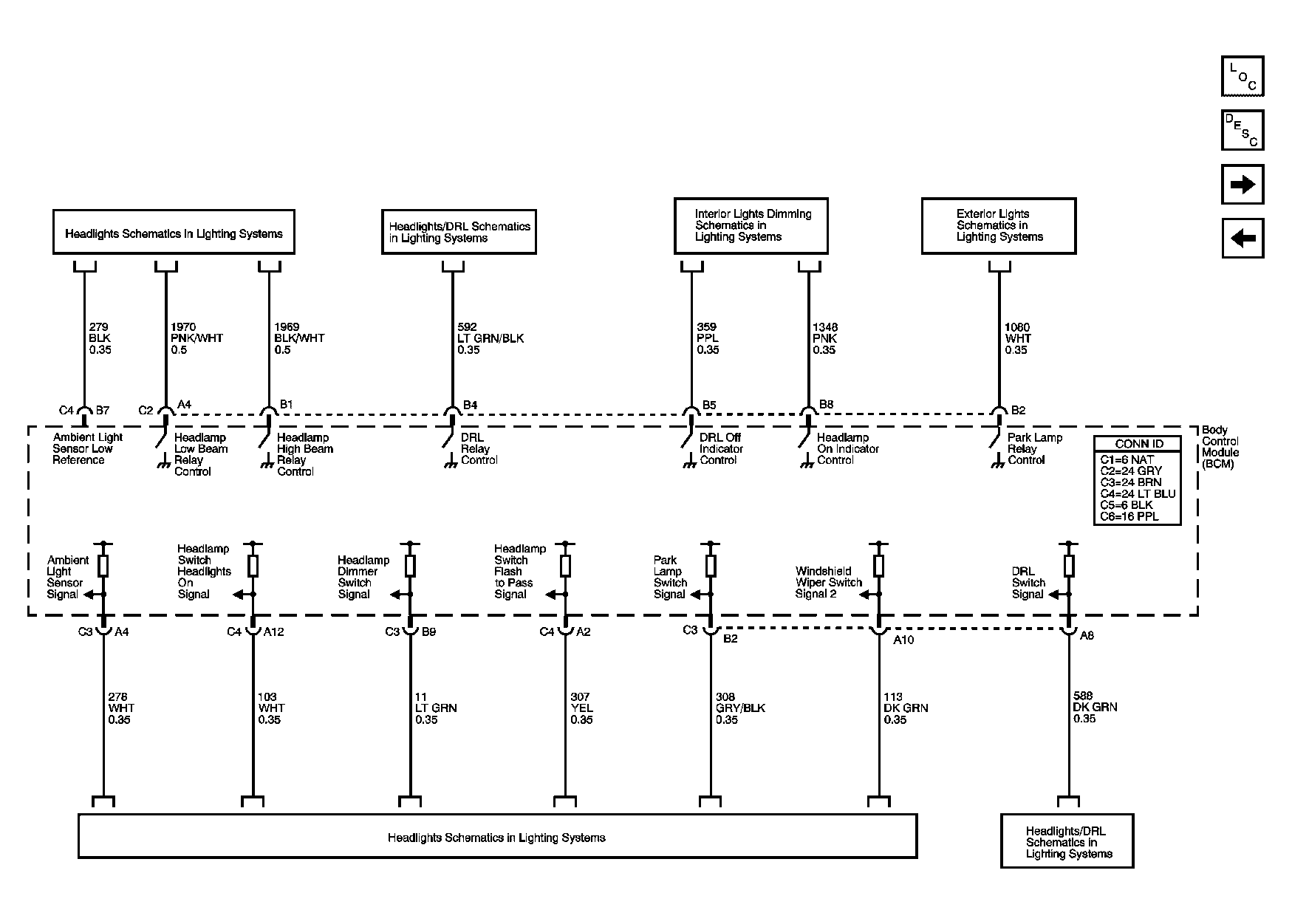

Fig 4: Headlamps, Park Lamps, and DRL Controls, Park Brake Signal Schematic

Courtesy of GENERAL MOTORS CORP.

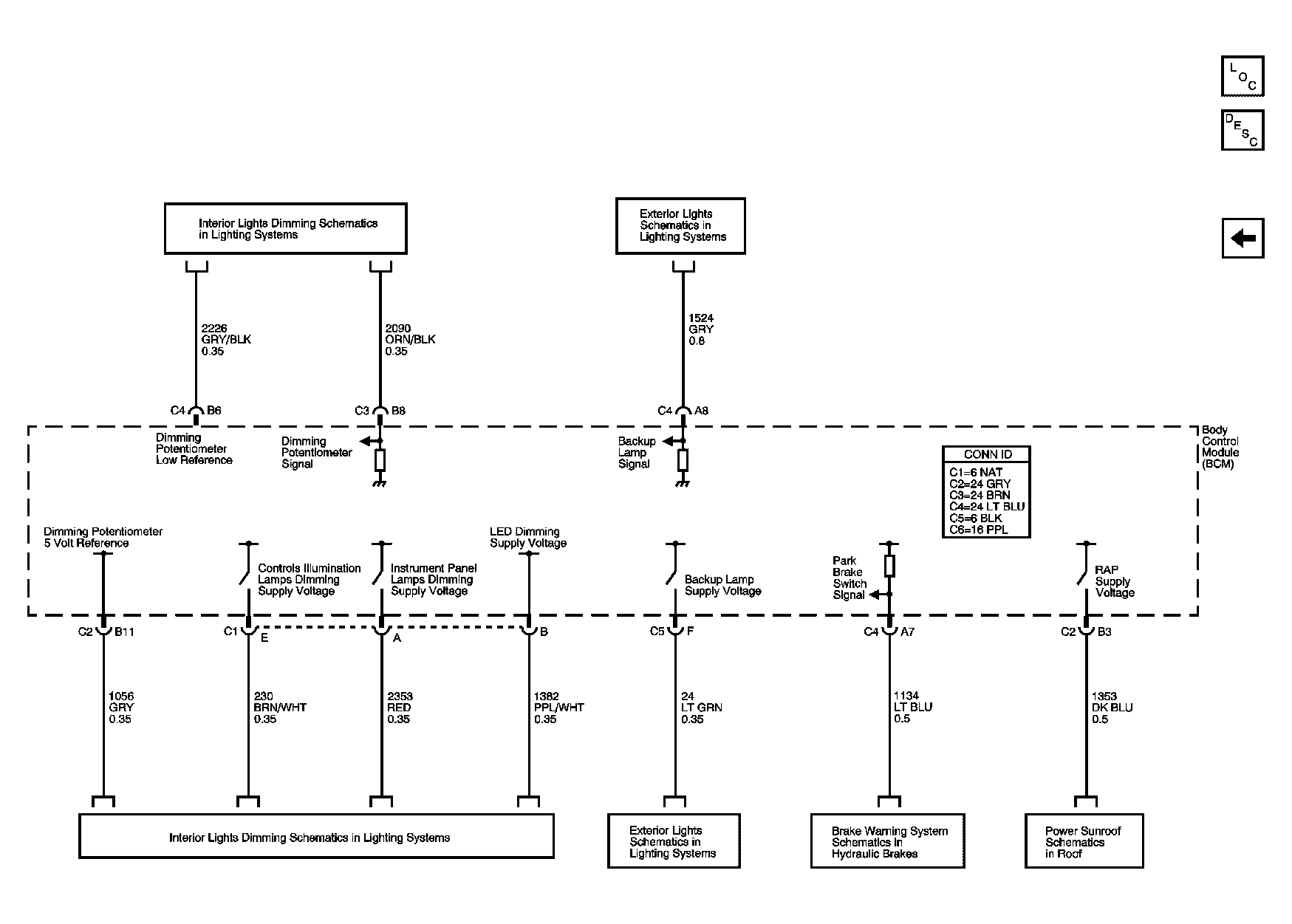

Fig 5: Interior Lights Dimming, Backup Lights, and Sunroof Power Schematic

Courtesy of GENERAL MOTORS CORP.
