Keyless Entry Component Views

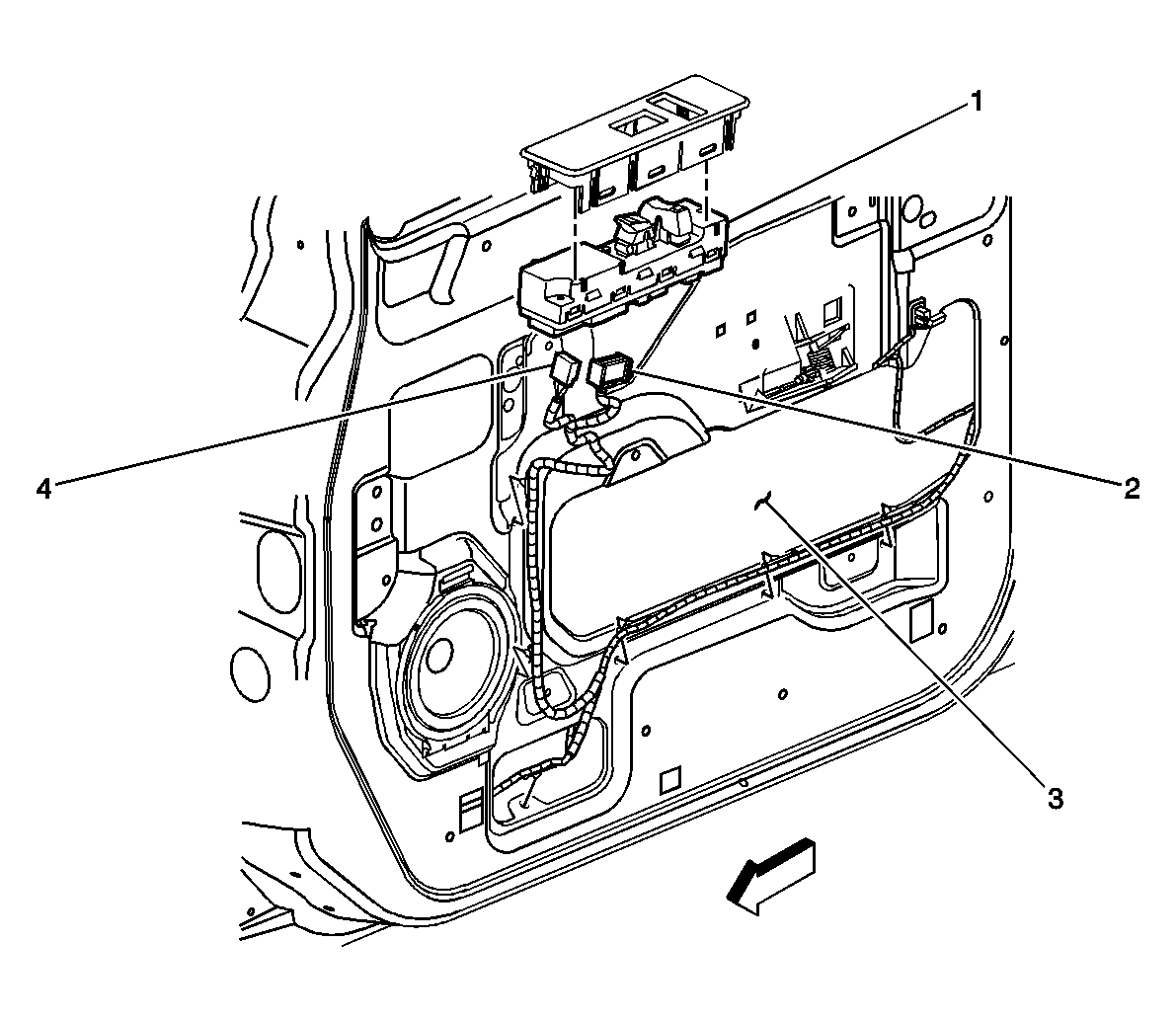

Fig 1: Remote Control Door Lock Receiver (RCDLR)
GM850801Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RCDLR (Part of the Front Passenger Door Module)
2 FPDM-C2
3 Passenger Inner Side Door Panel
4 FPDM-C1
