Keyless Entry Connector End Views

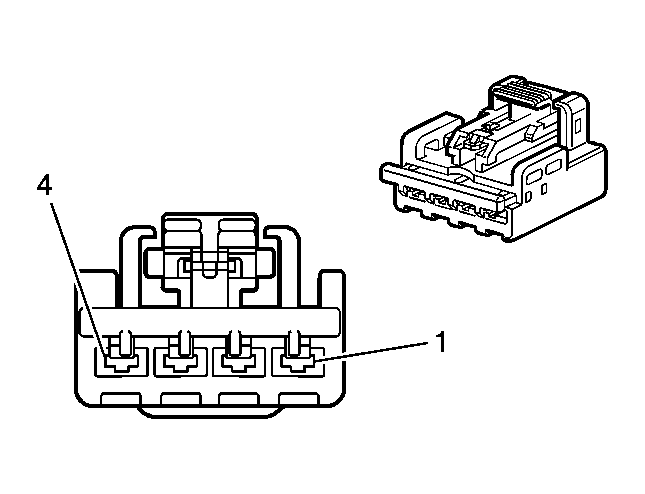

Driver Door Module (DDM) Connector End View - C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15393410 4-Way F AMP 2.8mm Sealed (NAT)
Pin	Wire Color	Circuit No.	Function
1	BRN	165	Power Window Motor Left Front Down Control
2	ORN	1240	Battery Positive Voltage
3	DK BLU	164	Power Window Motor Left Front Up Control
4	BLK	1050	Ground

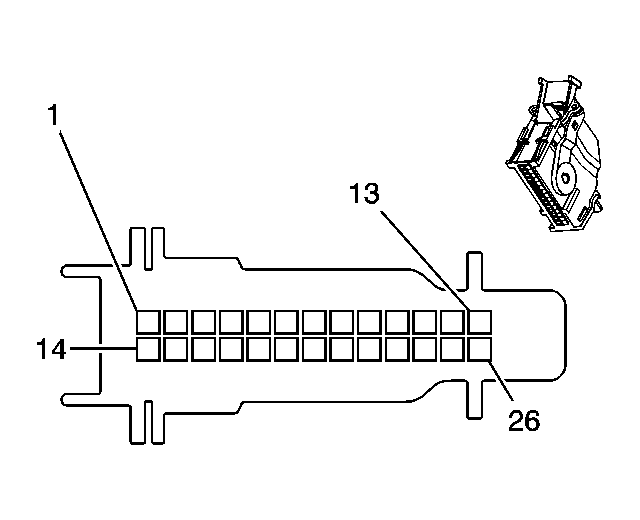

Driver Door Module (DDM) Connector End View - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15398841 26-Way F AMP Lever Assist (BLK)
Pin	Wire Color	Circuit No.	Function
1-2	-	-	Not Used
3	BRN	1183	Left Front Door Switch Low Reference
4	DK BLU	660	Left Front Door Courtesy Lamp Control
5-9	-	-	Not Used
10	GRY	1690	Automatic Day/Night Mirror Signal
11	-	-	Not Used
12	PNK	1691	Automatic Day/Night Mirror Low Reference
13	DK BLU/WHT	149	Courtesy Lamp-Left Front Door Supply Voltage
14	ORN	4140	Battery Positive Voltage
15	LT GRN	262	Driver Door Key Switch Signal
16-17	-	-	Not Used
18	GRY/BLK	745	Left Front Door Ajar Switch Signal
19	-	-	Not Used
20	TAN	294	Door Lock Actuator Unlock Control
21	GRY	295	Door Lock Actuator Lock Control
22	BRN	1046	DDM Class 2 Serial Data
23-26	-	-	Not Used

Front Passenger Door Module (FPDM) Connector End View - C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15393410 4-Way F 2.8mm Sealed AMP (NAT)
Pin	Wire Color	Circuit No.	Function
1	BRN	667	Power Window Motor Right Front Down Control
2	ORN	1340	Battery Positive Voltage
3	BLK	1050	Ground
4	DK BLU	666	Power Window Motor Right Front Up Control

Front Passenger Door Module (FPDM) Connector End View - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15398841 26-Way F AMP Lever Assist (BLK)
Pin	Wire Color	Circuit No.	Function
1-4	-	-	Not Used
5	BLK/WHT	746	Right Front Door Ajar Switch Signal
6-7	-	-	Not Used
8	WHT	156	Courtesy Lamp-Right Front Door Supply Voltage
9	-	-	Not Used
10	GRY	295	Door Lock Actuator Lock Control
11	TAN	294	Door Lock Actuator Unlock Control
12-13	-	-	Not Used
14	ORN	4240	Battery Positive Voltage
15-18	-	-	Not Used
19	LT BLU	661	Right Front Door Courtesy Lamp Control
20	DK GRN	1178	Right Front Door Switch Low Reference
21	-	-	Not Used
22	TAN	1047	PDM Class 2 Serial Data
23	-	-	Not Used
24	LT GRN	265	Passenger Door Key Switch Signal
25-26	-	-	Not Used
