Installation Procedure

  1. Install the lumbar switch to the power seat switch bezel.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the lumbar switch screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

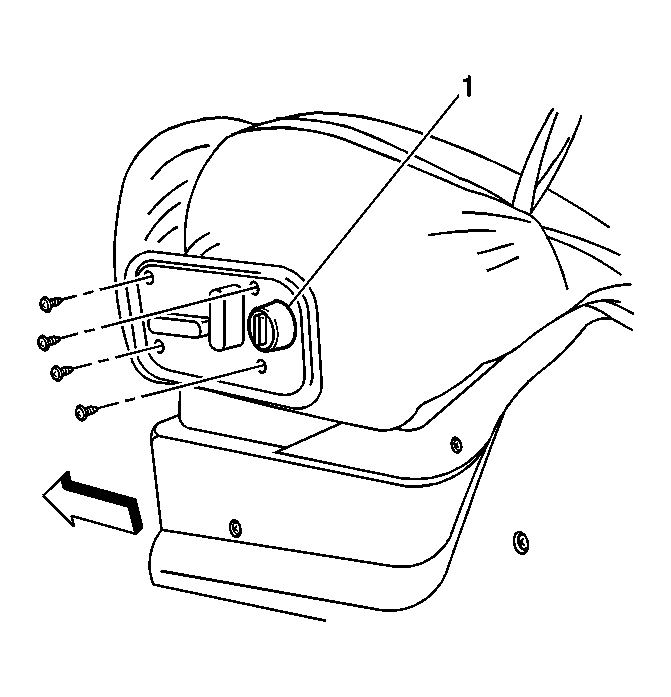

    3. Fig 1: Installing Power Seat Switch Bezel & Lumbar Switch
    GM409526Courtesy of GENERAL MOTORS CORP.
  3. Install the power seat switch bezel (1) to the seat. Refer to Seat Switch Bezel Replacement .
