Installation Procedure

  1. Position the seat back frame on the seat.

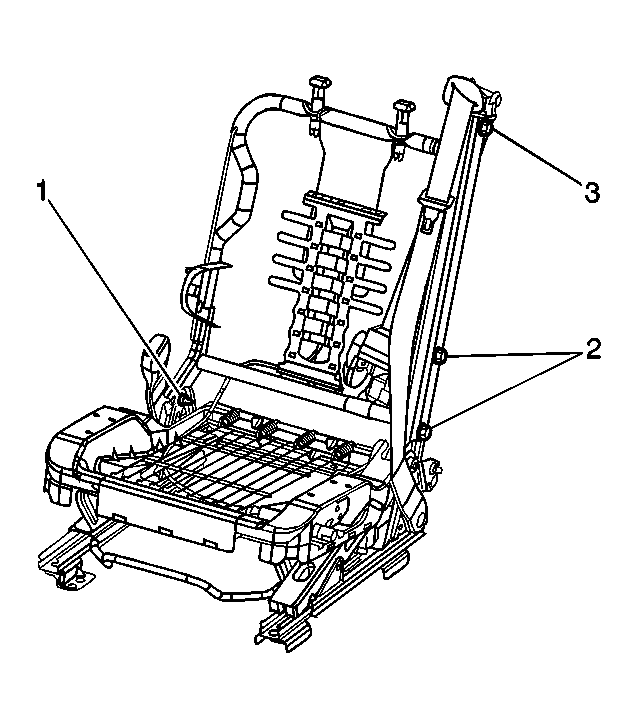

    2. Fig 1: Front Seat Back Frame
    GM386187Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the recliner arm attachment bolts (2).

    Tighten:  Tighten the bolts to 53 N.m (39 lb ft).

  3. Install the inboard pivot bolt (1).

    Tighten:  Tighten the bolt to 35 N.m (26 lb ft).

  4. Install the seat belt retractor. Refer to Seat Belt Retractor Replacement - Left Front or Seat Belt Retractor Replacement - Right Front in Seat Belts.
  5. Install the lumbar assembly or power lumbar/bolster assembly if equipped. Refer to Lumbar Replacement - Front Seat .
  6. Install the seat back trim cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .

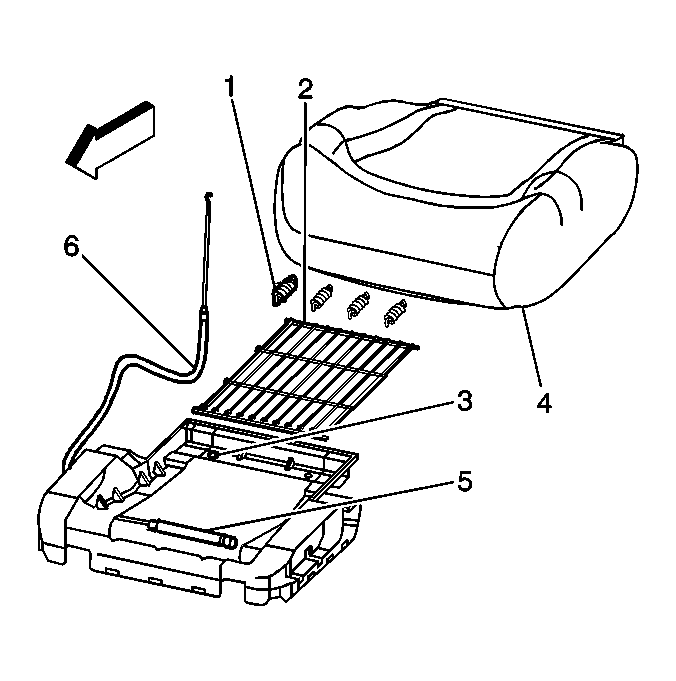

    7. Fig 2: View Of Lumbar Cable And Front Seat Cushion Frame Components
    GM407184Courtesy of GENERAL MOTORS CORP.
  7. Connect the lumbar cable (6) underneath the seat cushion. Disconnect the wire harness if equipped with power lumbar.
  8. Install the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  9. Install the head restraint and guides. Refer to Head Restraint Replacement .
  10. Install the seat into the vehicle. Refer to Seat Replacement - Front Bucket .
