Installation Procedure

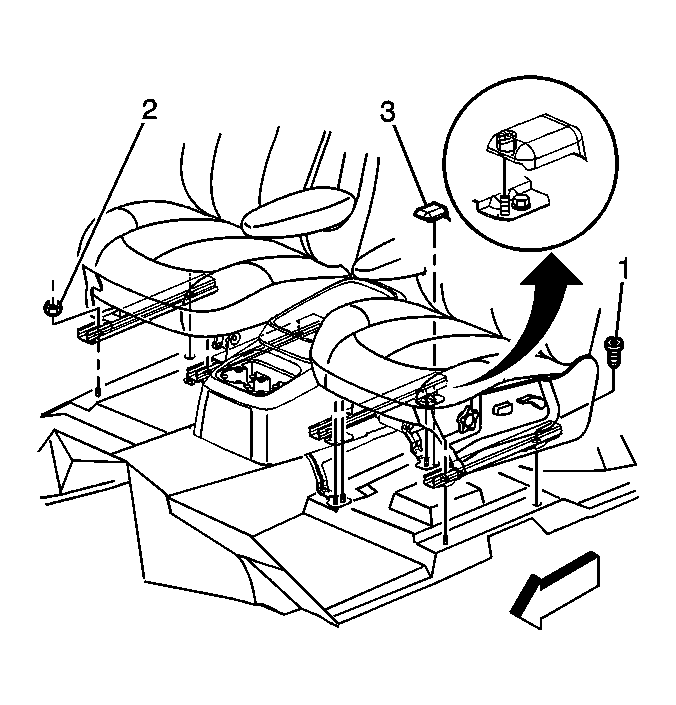

    Fig 1: Front Bucket Seat
    GM363709Courtesy of GENERAL MOTORS CORP.
  1. Position the seat in the vehicle.
  2. Connect the electrical harness.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. With the seat in the full forward position. Install the seat retaining rear bolts (1).

    Tighten:  Tighten the retaining rear bolts to 55 N.m (41 lb ft).

  4. Install the front seat retaining bolt cover (3).
  5. Move the seat to the full rearward position, and install the seat retaining front nuts (2).

    Tighten:  Tighten the nuts to 55 N.m (41 lb ft).
