Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.

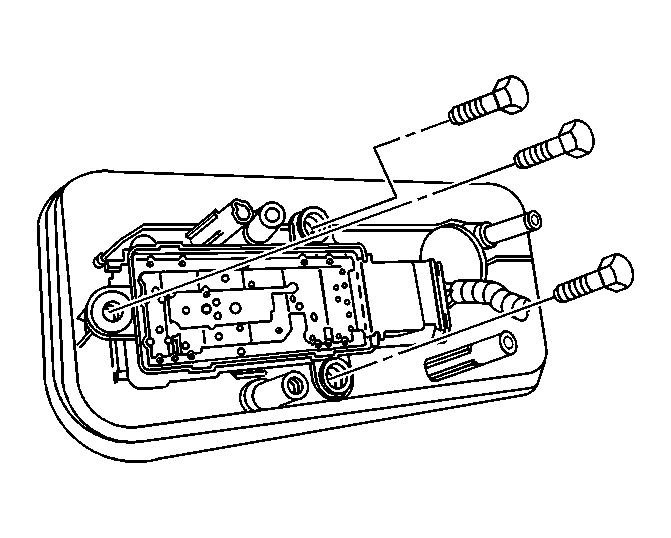

Fig 1: Installing Power Seat Switch To Bezel Screws

Courtesy of GENERAL MOTORS CORP.

Install the power seat switch to the bezel.
Tighten: Tighten the screws to 2 N.m (18 lb in).

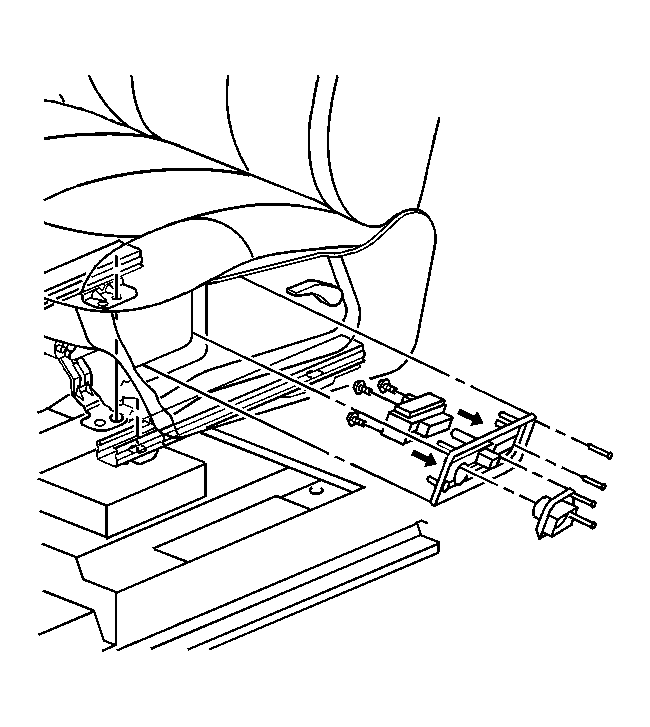

Fig 2: View Of Seat Switch Bezel

Courtesy of GENERAL MOTORS CORP.

Install the power seat switch to bezel screws.
Install the power seat switch bezel to the seat. Refer to Seat Switch Bezel Replacement .
