Stationary Windows Component Views

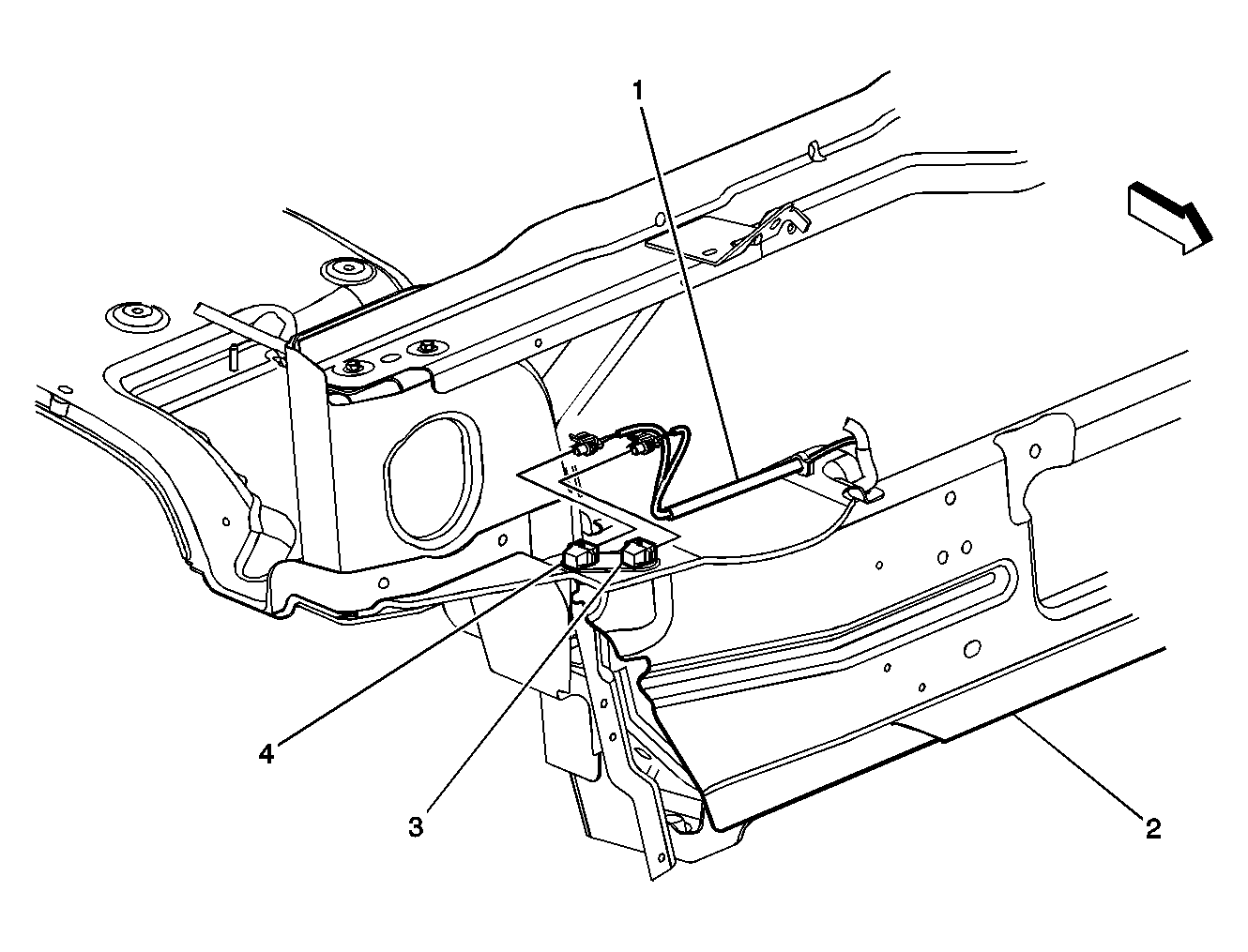

| Callout | Component Name |
|---|---|
| 1 | Forward Lamp Harness |
| 2 | Radiator Support |
| 3 | Ambient Air Temperature Sensor - HVAC |
| 4 | Ambient Air Temperature Sensor - Mirror |
| Callout | Component Name |
|---|---|
| 1 | Inside Rearview Mirror Connector |
| 2 | Vanity Mirror Lamp Connector - Left |
| 3 | Vanity Mirror Lamp Connector - Right |

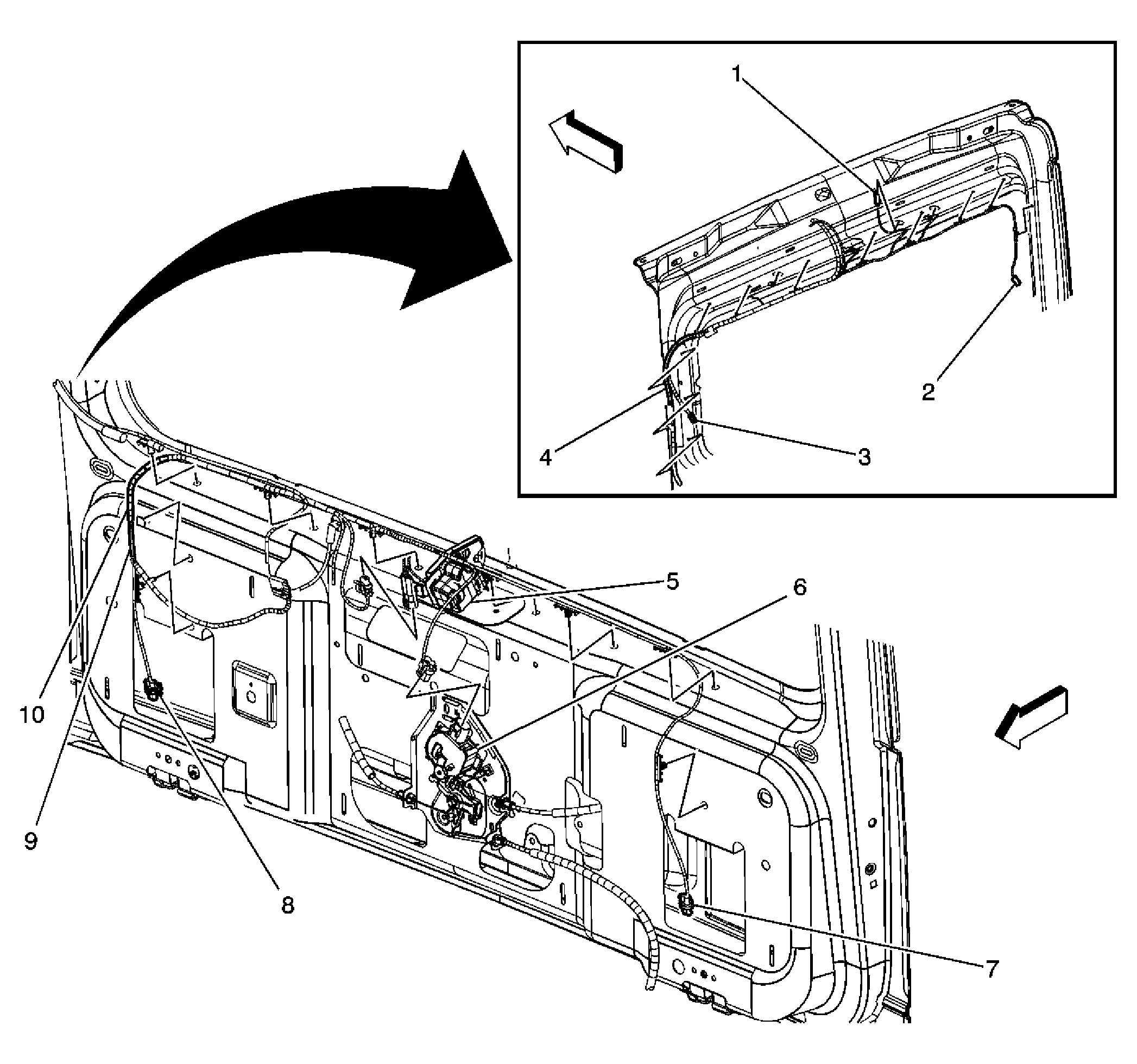

| Callout | Component Name |
|---|---|
| 1 | Center High Mounted Stop Lamp (CHMSL) Connector |
| 2 | Rear Window Defogger Grid Connector |
| 3 | Rear Window Defogger Grid Connector |
| 4 | Splice S900 |
| 5 | Rear Window Wiper Module - w/Motor |
| 6 | Door Lock Actuator-Liftgate |
| 7 | Liftgate Ajar Switch-Left |
| 8 | Liftgate Ajar Switch-Right |
| 9 | Splice S902 |
| 10 | Splice S901 |
