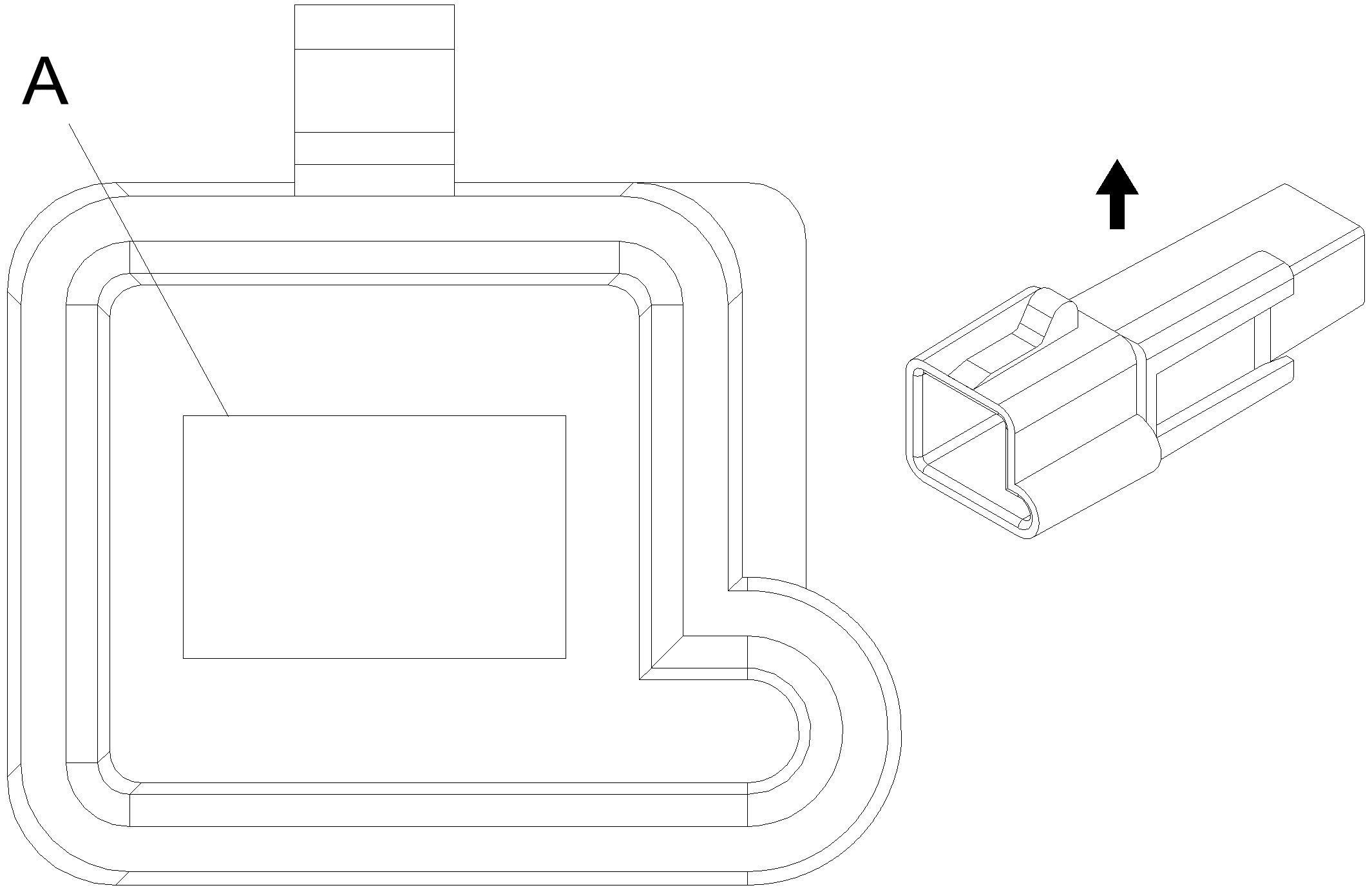

Stationary Windows Connector End Views

Ambient Air Temperature Sensor Connector End View - Mirror

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052642 2-Way F Metri-Pack 150 Series Sealed (LT GRN)
Pin	Wire Color	Circuit No.	Function
A	DK GRN/WHT	636	Ambient Air Temperature Sensor Signal
B	BLK/WHT	1704	Low Reference

Driver Door Module (DDM) Connector End View - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15398841 26-Way F AMP Lever Assist (BLK)
Pin	Wire Color	Circuit No.	Function
1-2	-	-	Not Used
3	BRN	1183	Left Front Door Switch Low Reference
4	DK BLU	660	Left Courtesy Lamp Control
5-9	-	-	Not Used
10	GRY	1690	Automatic Day/Night Mirror Signal
11	-	-	Not Used
12	PNK	1691	Automatic Day/Night Mirror Low Reference
13	DK BLU/WHT	149	Courtesy Lamp-Left Front Door Supply Voltage
14	ORN	4140	Battery Positive Voltage
15	LT GRN	262	Driver Door Key Switch Signal
16-17	-	-	Not Used
18	GRY/BLK	745	Left Front Door Ajar Switch Signal
19	-	-	Not Used
20	TAN	294	Door Lock Actuator Unlock Control
21	GRY	295	Door Lock Actuator Lock Control
22	BRN	1046	DDM Class 2 Serial Data
23-26	-	-	Not Used

Driver Door Module (DDM) Connector End View - C3

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		6383393-7 10-Way F 0.64mm Unsealed AMP (BLU)
Pin	Wire Color	Circuit No.	Function
1-2	-	-	Not Used
3	BLK	-	Driver Mirror Heating Element Low Reference
4	PPL	-	Mirror Sensor Low Reference
5-6	-	-	Not Used
7	GRY	-	Automatic Day/Night Mirror Signal
8	PNK	-	Automatic Day/Night Mirror Low Reference
9-10	-	-	Not Used

Inside Rearview Mirror (ISRVM) Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15324871 16-Way F AMP (BLK)
Pin	Wire Color	Circuit No.	Function
1-4	-	-	Not Used
5	GRY	1690	Automatic Day/Night Mirror Signal
6	DK GRN/WHT	636	Ambient Air Temperature Sensor Signal
7	BLK/WHT	1704	Low Reference
8	BLK	1050	Ground
9	LT GRN	24	Backup Lamp Supply Voltage
10-12	-	-	Not Used
13	BRN	341	Ignition 3 Voltage
14-15	-	-	Not Used
16	PNK	1691	Automatic Day/Night Mirror Low Reference

Rear Window Defogger Grid Connector End View - C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12059885 1-Way M Metri-Pack 480 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	PPL	293	Rear Defog Element Supply Voltage

Rear Window Defogger Grid Connector End View - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12059885 1-Way M Metri-Pack 480 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1450	Ground
