Installation Procedure

  1. Install the stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .

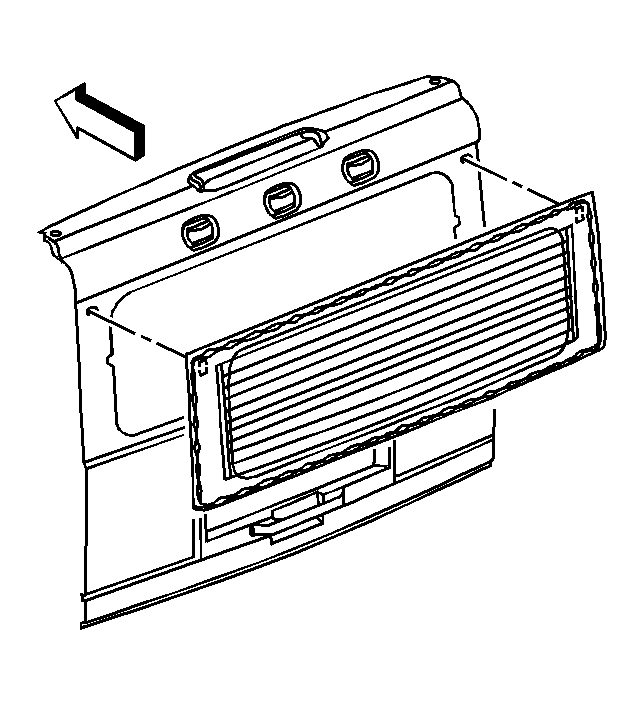

    2. Fig 1: Identifying Rear Lift Window
    GM870674Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the window defogger on the window, if equipped.

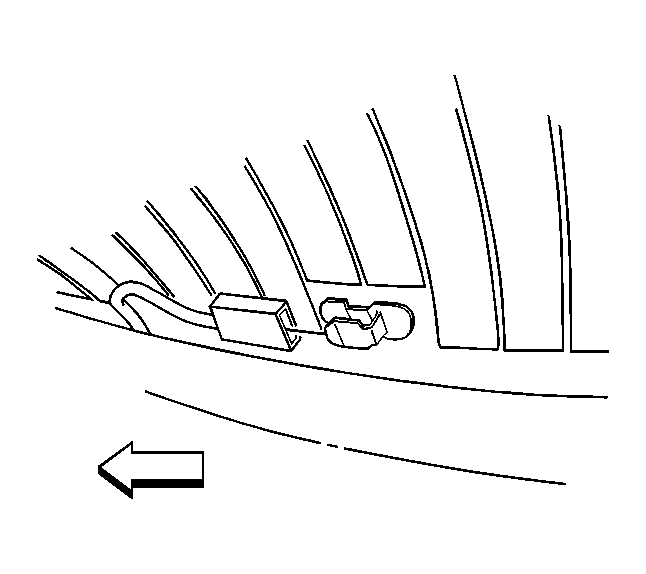

    3. Fig 2: Disconnecting/Reconnecting Rear Window Defogger Electrical Connector
    GM379401Courtesy of GENERAL MOTORS CORP.
  3. Install the window garnish molding to the door frame.
  4. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
