Installation Procedure

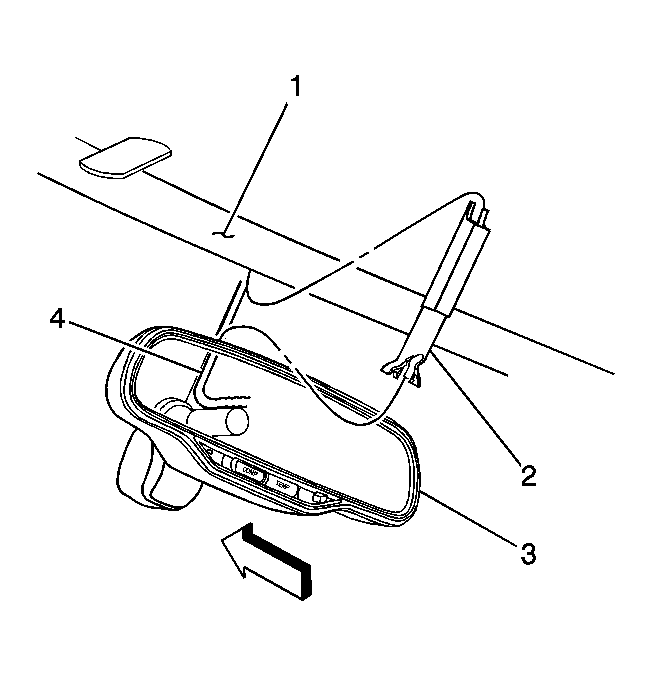

Fig 1: Electrical Connector & Rearview Mirror

GM1453822

Courtesy of GENERAL MOTORS CORP.

Slide the mirror (3) onto the mirror support.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the set screw.
Tighten: Tighten the set screw to 2 N.m (18 lb in).
Connect the electrical connector (4), if equipped.
Install the wire cover (2), if equipped.
Ensure the wire cover is tucked into the forward edge of the headliner (1).
Re-calibrate the compass. Refer to Compass Calibration and Variance Procedure .
