Installation Procedure

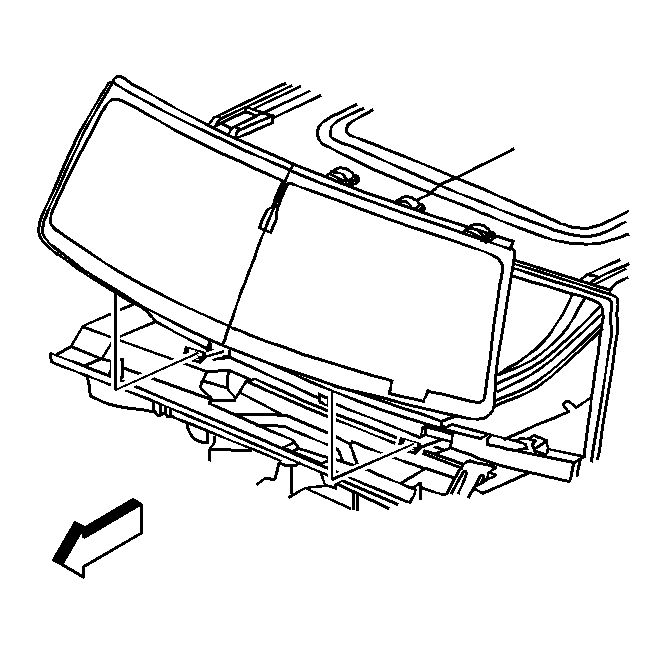

- Install the windshield into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
- Install the cowl air inlet grille panel. Refer to Air Inlet Grille Panel Replacement - Non Functional in Exterior Trim.
- Install the window side reveal moldings to the vehicle. Refer to Windshield Side Reveal Molding Replacement .
- Install the window wiper arms. Refer to Wiper Arm Replacement in Wipers/Washer Systems.
- Install the rear view mirror. Refer to Rearview Mirror Replacement .
- Close the hood.
- Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
