Removal Procedure

  1. Turn the ignition switch to the OFF position.
  2. Raise the Vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Disconnect the EBCM harness connector.
  4. Remove any dirt/debris from the assembly.

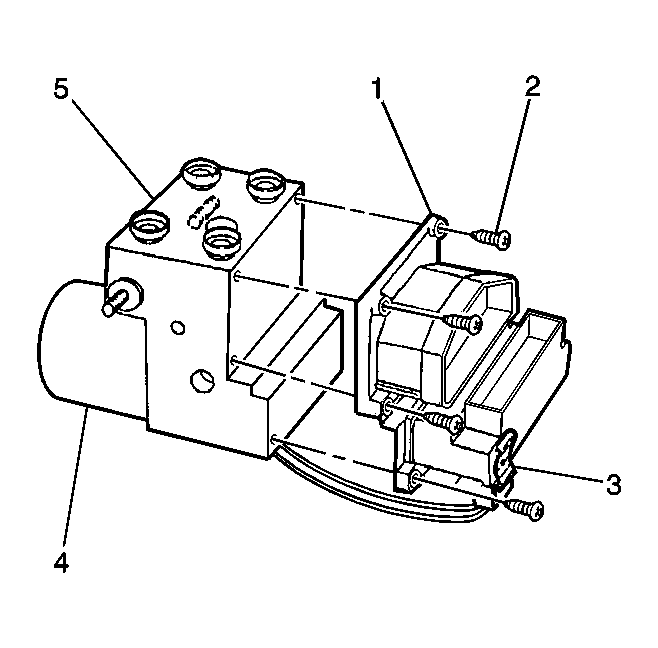

    5. Fig 1: EBCM & BPMV
    GM213438Courtesy of GENERAL MOTORS CORP.
  5. Remove the 6 retainers (2) that connect the EBCM to the BPMV.
    6. IMPORTANT: Do not pry apart using a tool. Be careful not to damage the BPMV surface.
    IMPORTANT: Do NOT damage the solenoid valves when you remove the EBCM from the BPMV.
  6. Separate the EBCM (1) from the BPMV (4) by gently pulling apart until separated.
  7. Disconnect the pump motor connector (3) at the bottom of the EBCM.
