Installation Procedure

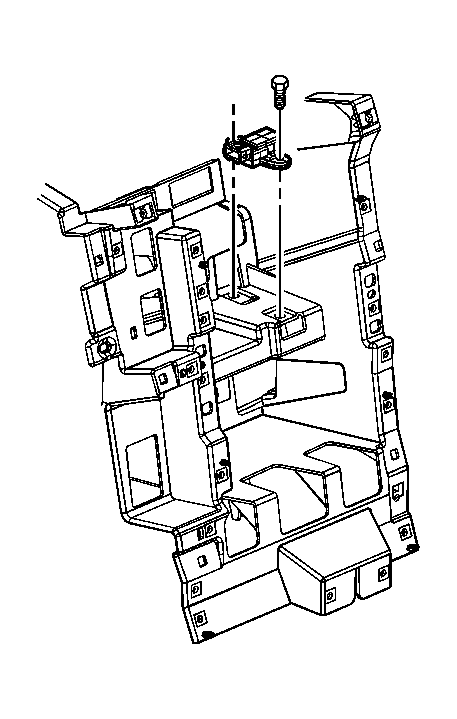

    Fig 1: Longitudinal Accelerometer
    GM930397Courtesy of GENERAL MOTORS CORP.
  1. Install the longitudinal accelerometer.
    2. NOTE: Refer to Fastener Notice .
  2. Install the longitudinal accelerometer retaining screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  3. Install I/P bezel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center .
