Installation Procedure

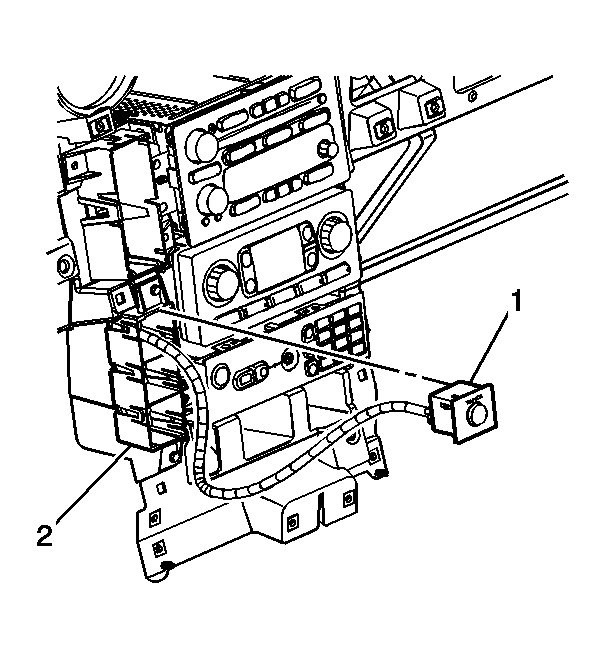

    Fig 1: Traction Control Switch & I/P Assembly
    GM793124Courtesy of GENERAL MOTORS CORP.
  1. Connect the harness connector to the traction control switch (1).
  2. Install the traction control switch (1) into the I/P assembly (2).
  3. Ensure that the switch (1) is secure into both retaining tabs.
  4. Install I/P bezel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center .
