ABS Schematics

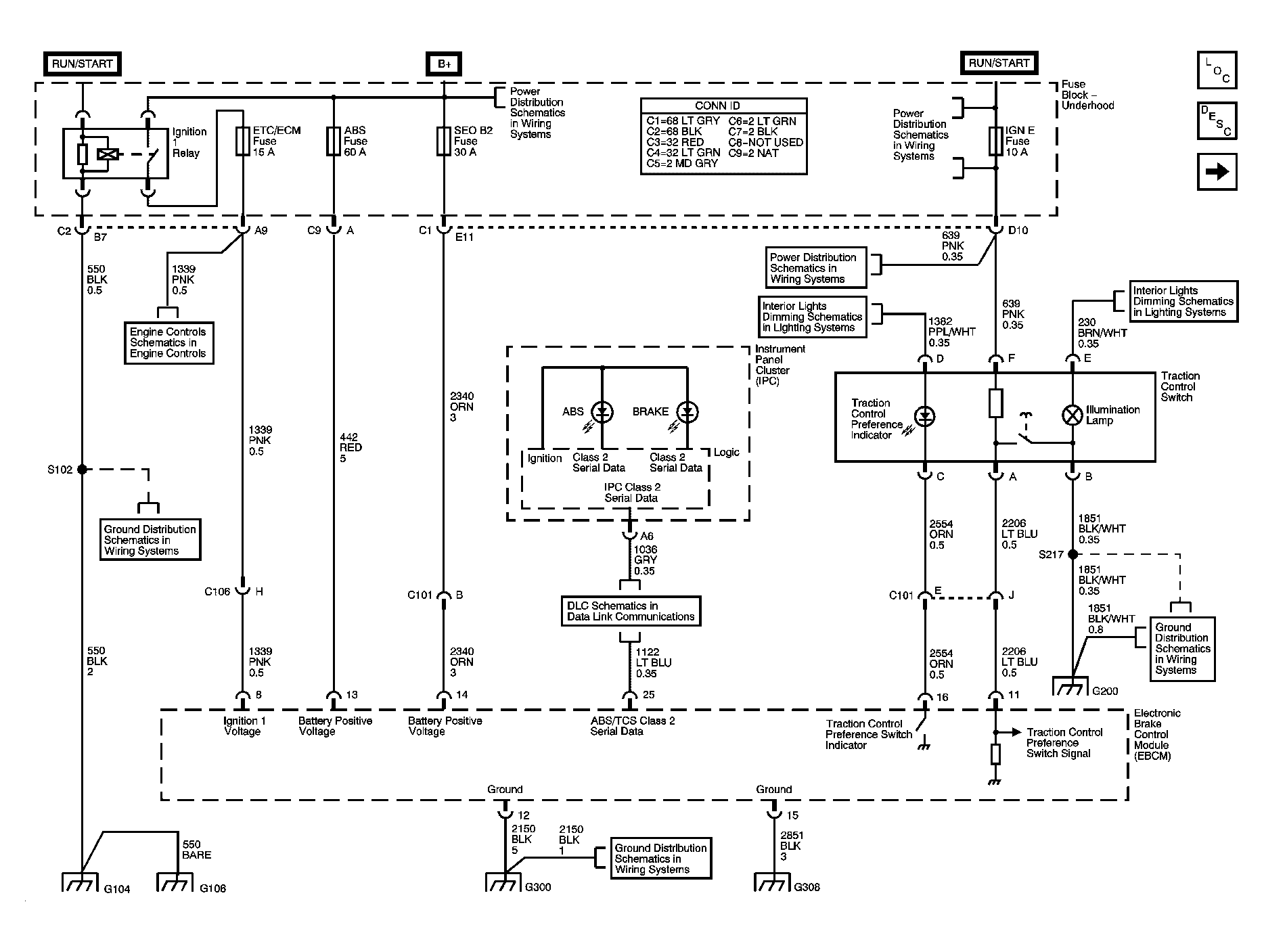

Fig 1: EBCM Power, Grounding, DLC, Indicator Lamps, & Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.

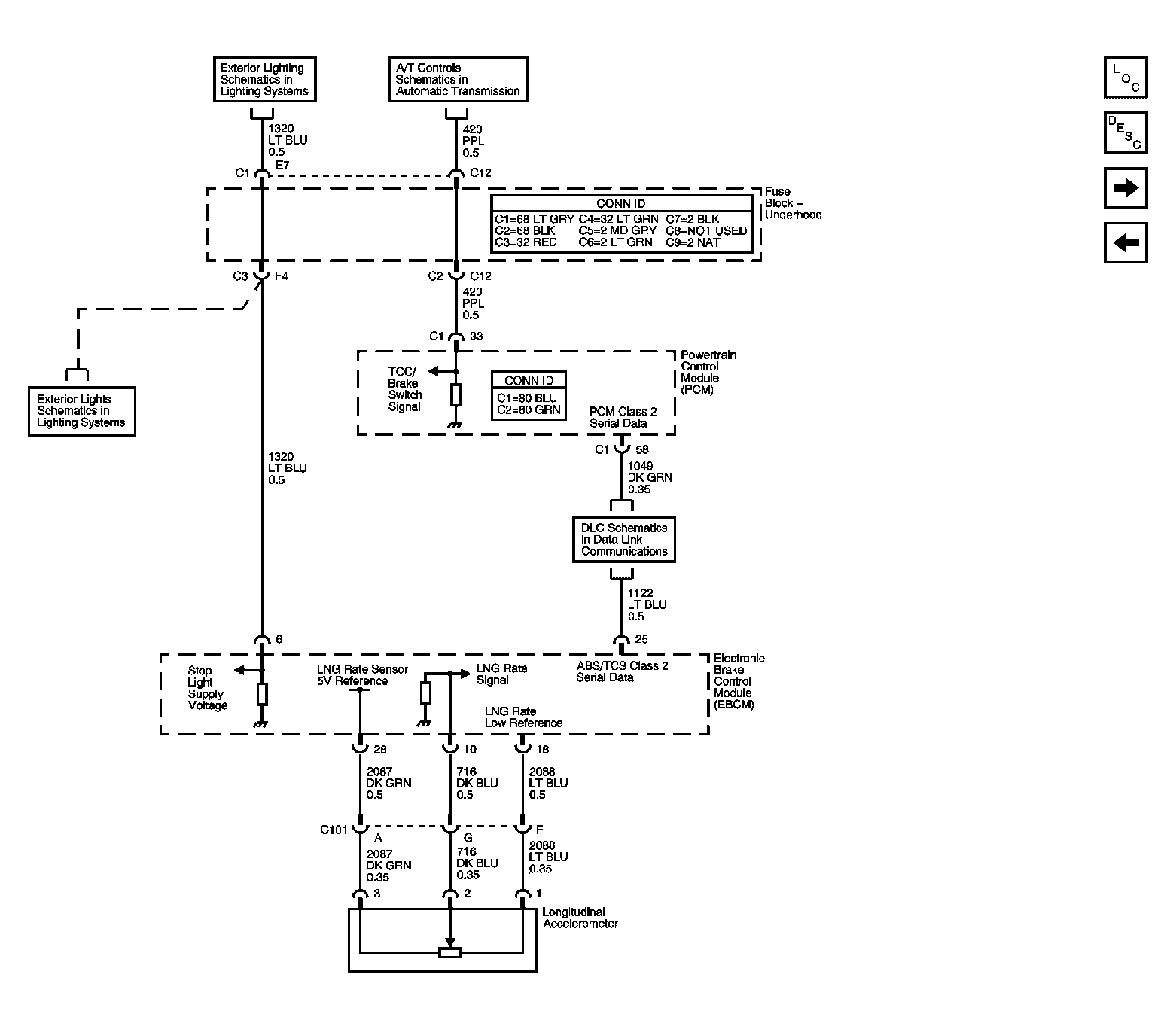

Fig 2: Stoplamp Switch & Longitudinal Accelerometer Inputs Schematic

Courtesy of GENERAL MOTORS CORP.

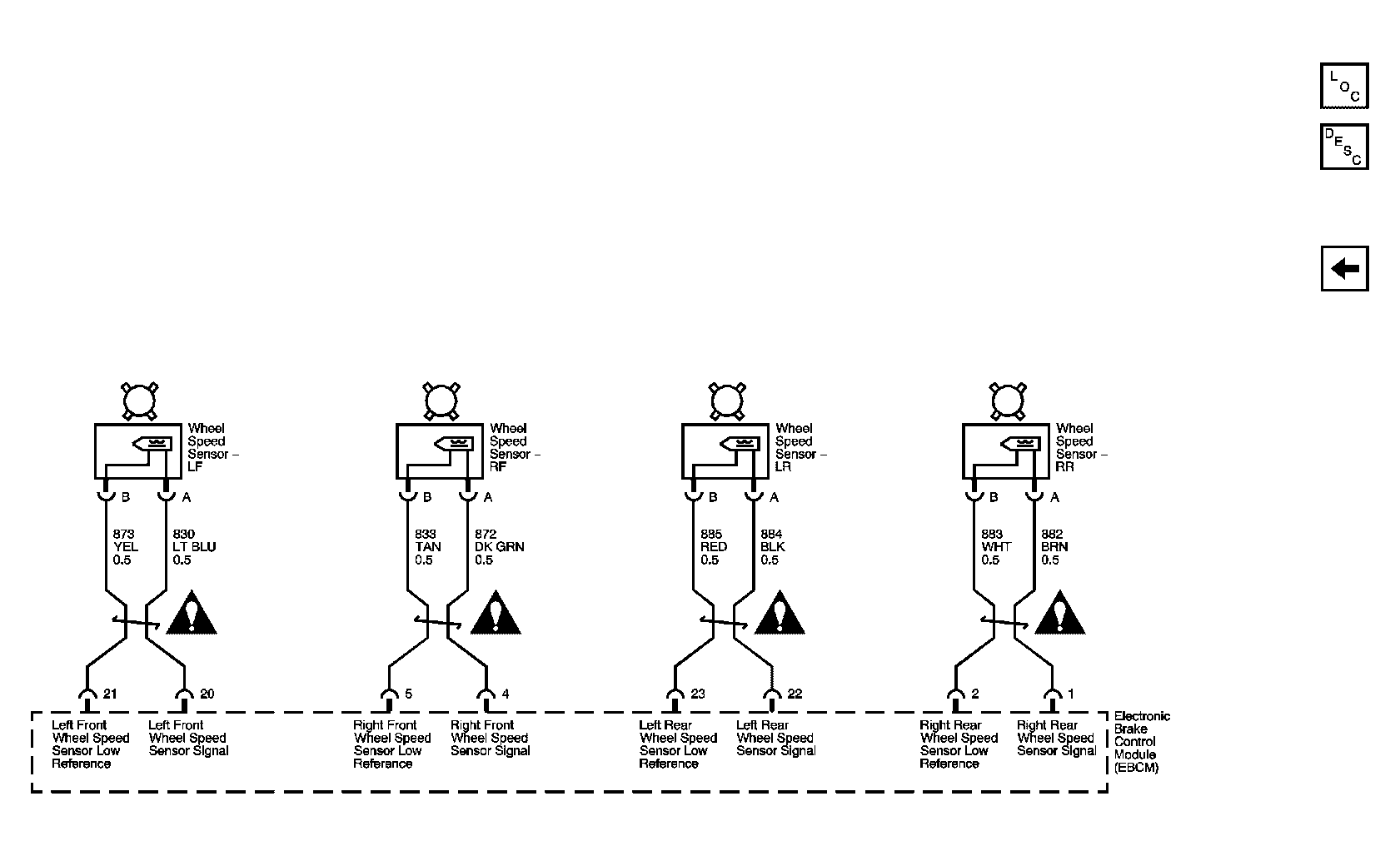

Fig 3: Wheel Speed Sensor Inputs Schematic

Courtesy of GENERAL MOTORS CORP.
