HVAC Control Module Connector End View - C2

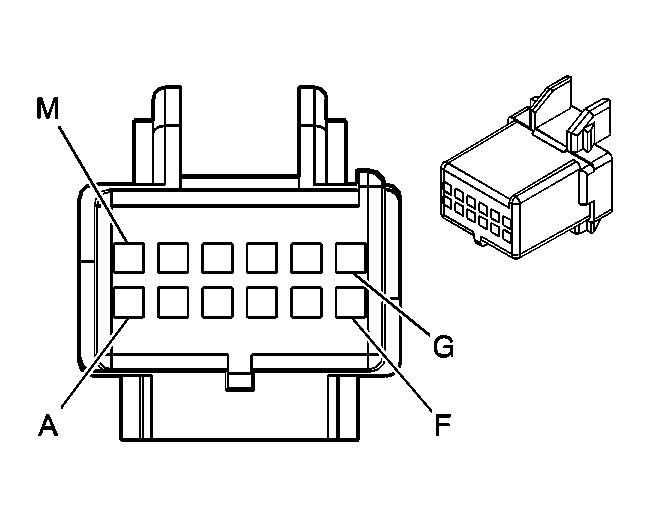

HVAC Control Module-C2 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15336594 12-Way F Micro Pack 100 (GRY)
Pin	Wire Color	Circuit No.	Function
A	DK GRN	734	Inside Air Temperature Sensor Signal
B	LT GRN/BLK	735	Ambient Air Temperature Sensor Signal
C	WHT	2338	Upper Left Air Temperature Sensor Signal
D	GRY	2336	Upper Right Air Temperature Sensor Signal
E	WHT/BLK	2339	Lower Left Air Temperature Sensor Signal
F	GRY/BLK	2337	Lower Right Air Temperature Sensor Signal
G	PPL	1838	Recirculation Door Position Signal
H-J	-	-	Not Used
K	BRN	718	Low Reference
L	WHT/BLK	5515	Inside Air Temperature Sensor Assembly Control
M	PPL/WHT	760	Blower Motor Speed Control
