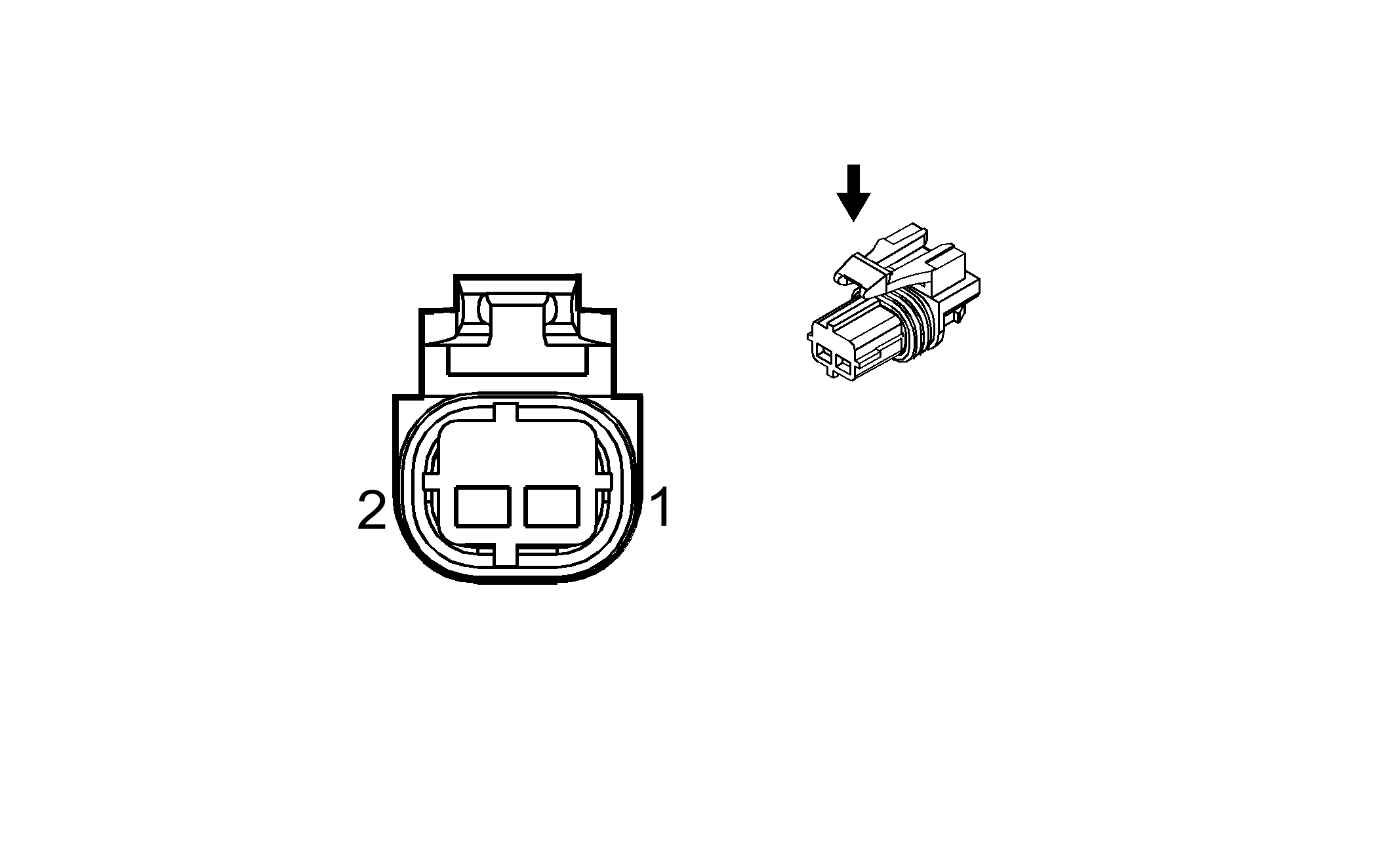

Inflatable Restraint Front End Discriminating Sensor Connector End View - Left
Inflatable Restraint Front End Discriminating Sensor-Left
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 15356718
- 2-Way F GT 150 Sealed 4.0 (YEL)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
GRY |
349 |
Discriminating Sensor - Left - Signal |
| 2 |
YEL |
354 |
Discriminating Sensor - Left-Low Reference |
