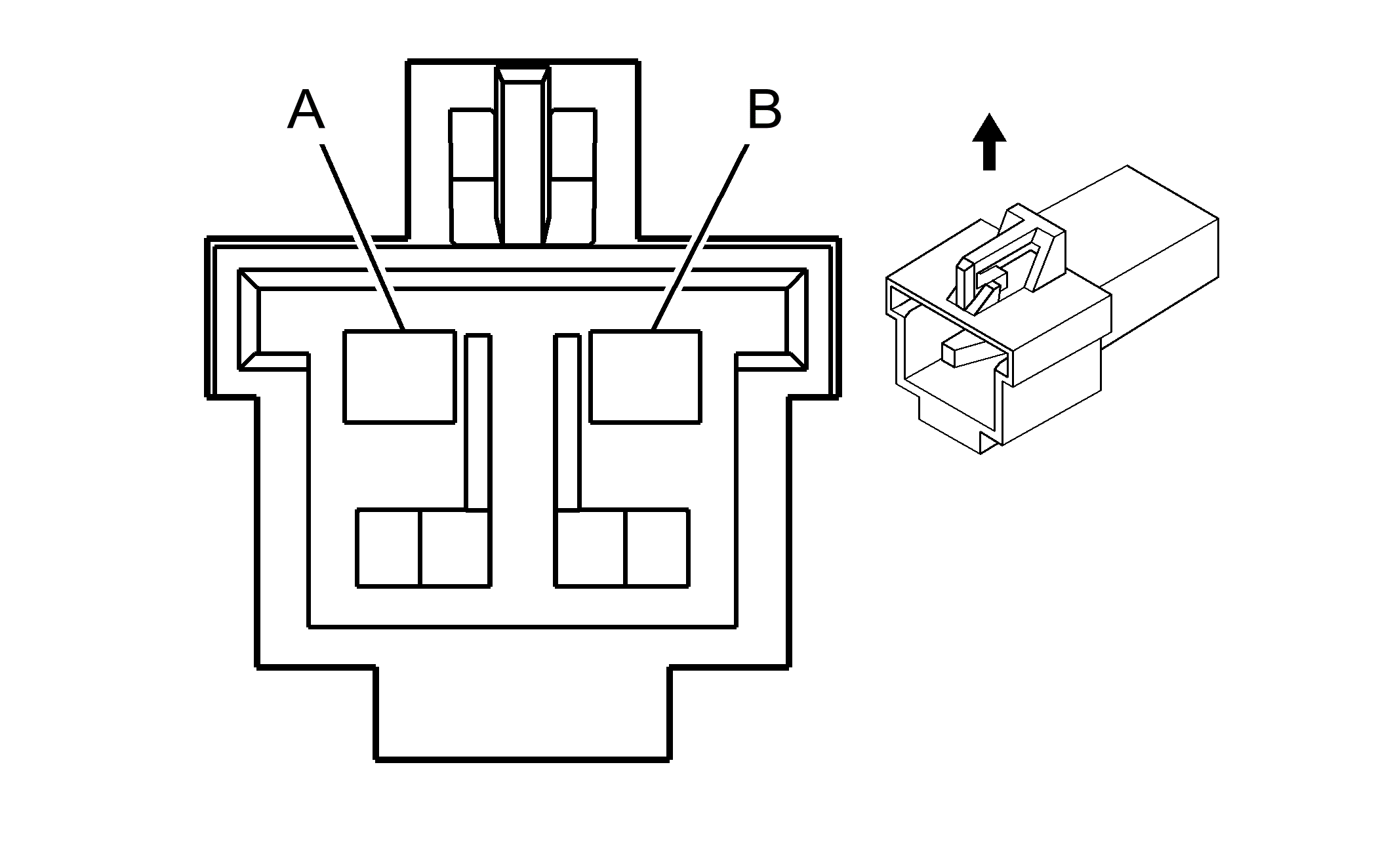

Inflatable Restraint I/P Module Connector End View
Inflatable Restraint I/P Module
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12186989
- 2-Way M Metri-Pack 280 Pull To Seat (YEL)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
WHT/BLK |
1403 |
I/P Module - High Control |
| B |
DK GRN/
WHT |
1404 |
I/P Module - LowControl |
