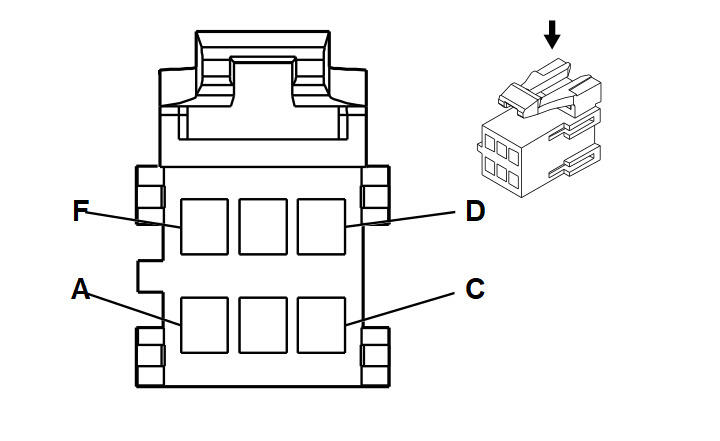

Inflatable Restraint I/P Module Disable Switch Connector End View

Inflatable Restraint I/P Module Disable Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15305286 6-Way F Metri-Pack 150 Series (YEL)
Pin	Wire Color	Circuit No.	Function
A	TAN/BLK	371	I/P Module Disable Switch - Signal
B	YEL	1139	Ignition 1 Voltage
C	BRN	2409	Interior Park Lamps Supply Voltage
D	BRN/WHT	230	Instrument Panel Lamps Dimming Control
E	PNK	353	I/P Module Suppression Indicator Control
F	BLK	1050	Ground
