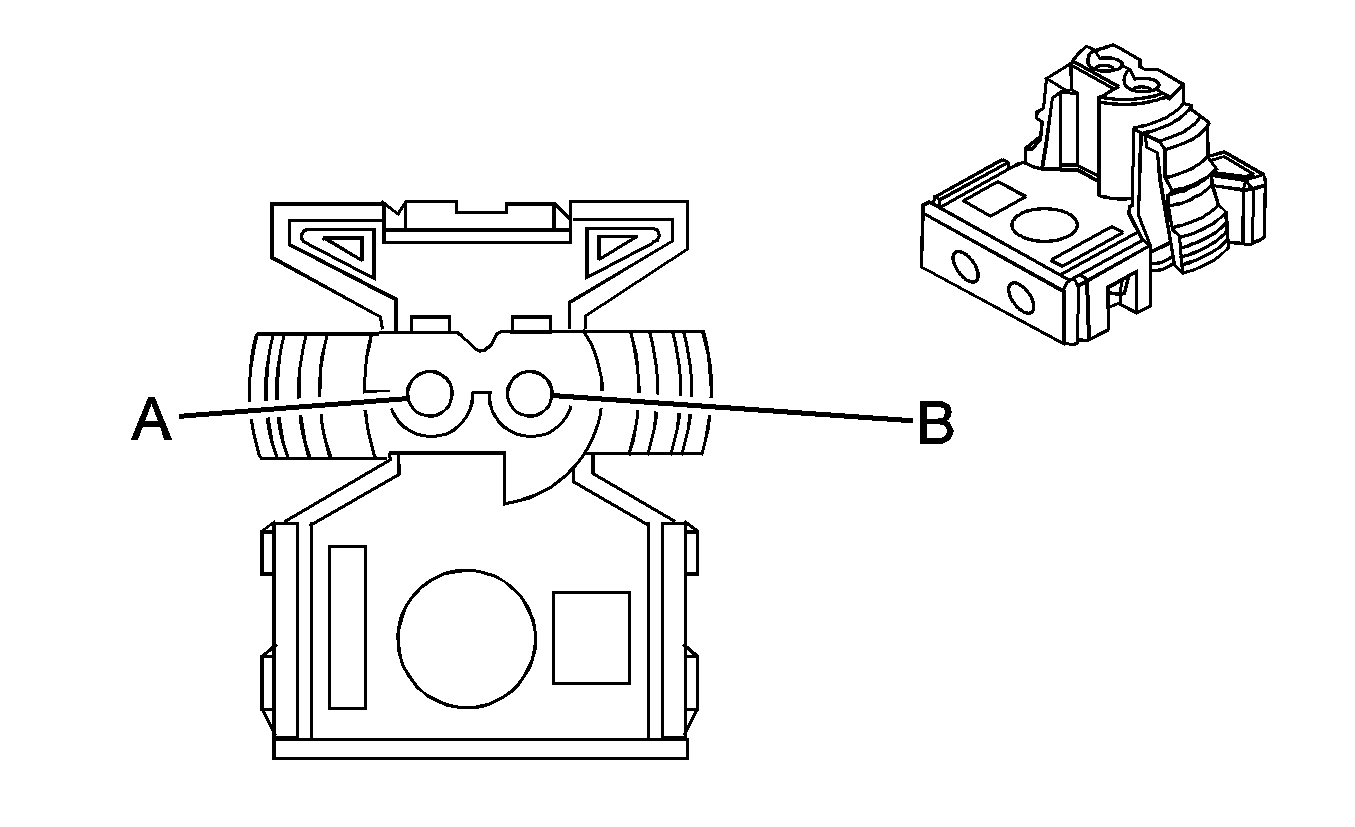

Inflatable Restraint Steering Wheel Module Connector End View
Inflatable Restraint Steering Wheel Module
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 54560210
- 2-Way F Framatone ABX-3 Code C (YEL)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
WHT |
347 |
Steering Wheel Module - High Control |
| B |
DK GRN |
348 |
Steering Wheel Module - Low Control |
