MAP Sensor Connector End View

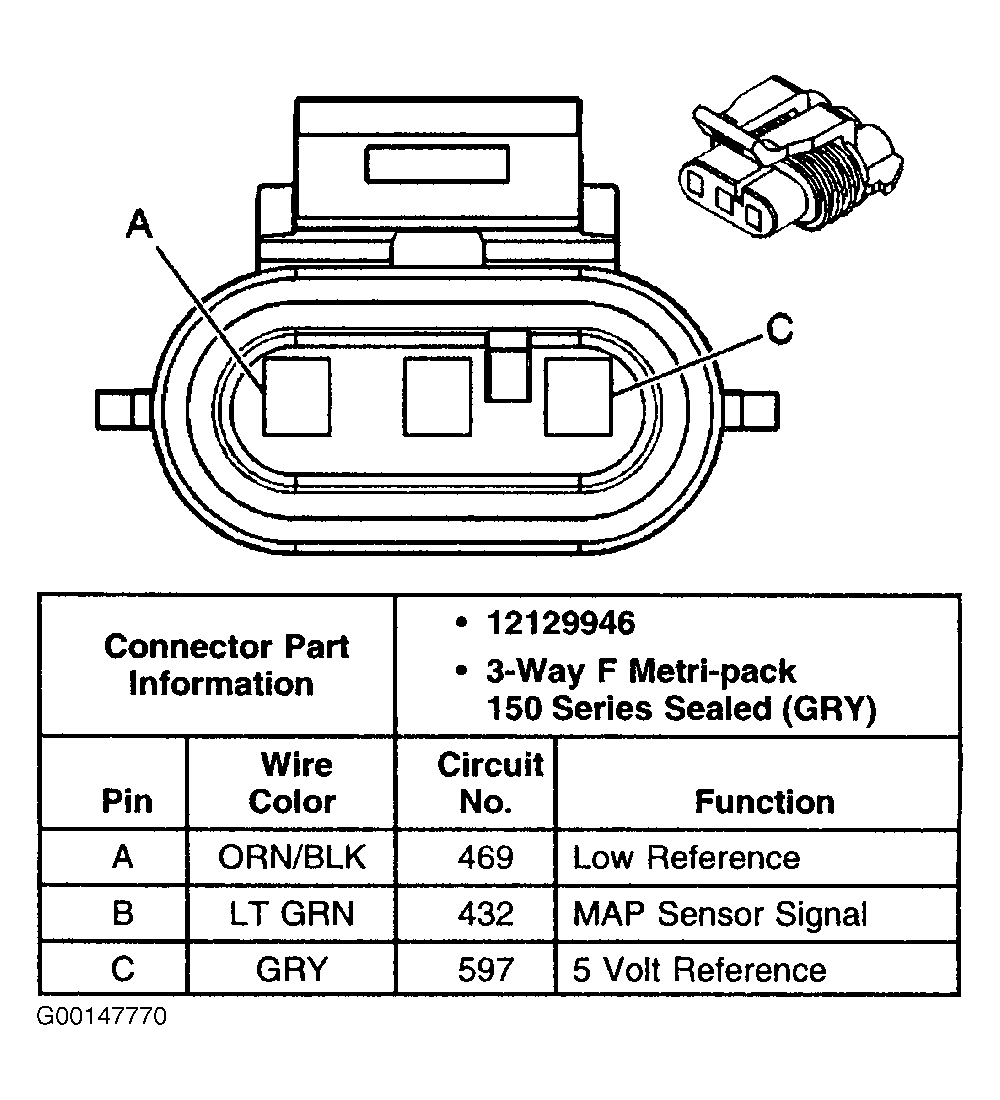

Fig 1: MAP Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
