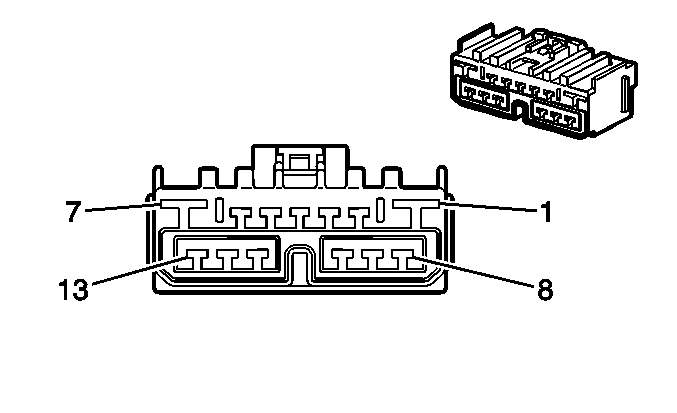

Memory Seat Module Connector End View - Driver-C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7283-5625-40 13-Way F Yazaki Hybrid Unsealed (LT GRY)
Pin	Wire Color	Circuit No.	Function
1	ORN	1440	Battery Positive Voltage
2-3	-	-	Not Used
4	DK BLU	611	Driver Seat Lumbar Motor Forward Control
5	PNK	610	Driver Seat Lumbar Motor Rearward Control
6	-	-	Not Used
7	BLK	1150	Ground
8	-	-	Not Used
9	YEL	1257	Driver Seat Torso Bolster In Control
10	PPL	1258	Driver Seat Torso Bolster Out Control
11-13	-	-	Not Used
