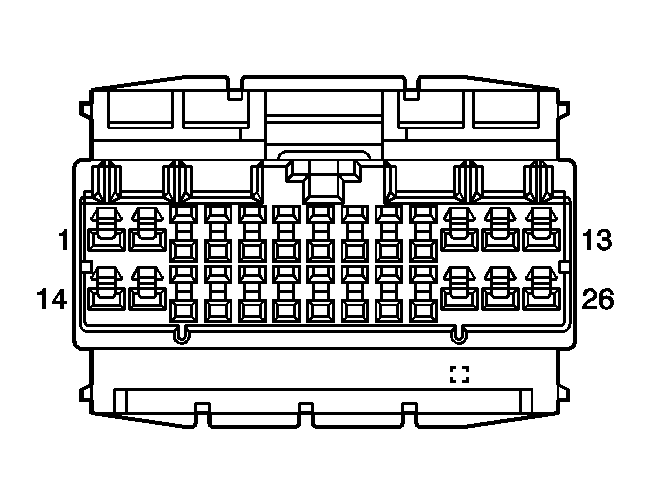

Memory Seat Module Connector End View - Driver-C3

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		174516-2 26-Way F AMP Hybrid (BLK)
Pin	Wire Color	Circuit No.	Function
1	RED/WHT	2077	Heated Seat Cushion Element Supply Voltage-w/KA7
2-3	-	-	Not Used
4	TAN	2408	Driver Seat Lumbar Motor Rearward Control
5	GRY/RED	5702	Driver Seat Torso Bolster Out Switch Signal
6	DK GRN/WHT	1270	Power Seat Recline Rearward Switch Signal
7	-	-	Not Used
8	LT GRN	1523	Power Seat Horizontal Rearward Switch Signal
9	LT BLU	1521	Power Seat Rear Vertical Down Switch Signal
10	DK BLU	1520	Power Seat Front Vertical Down Switch Signal
11	-	-	Not Used
12	WHT	5287	Voltage Reference
13	WHT	570B	Driver Seat Recline Motor Position Sensor Voltage Reference
14	BRN	2432	Driver Heated Seat Back Element Supply Voltage-w/KA7
15-16	-	-	Not Used
17	YEL	2407	Driver Seat Lumbar Motor Forward Switch Signal
18	WHT/RED	5701	Driver Seat Torso Bolster In Switch Signal
19	GRY/BLK	1269	Power Seat Recline Forward Switch Signal
20	-	-	Not Used
21	TAN	1522	Power Seat Horizontal Forward Switch Signal
22	YEL	1519	Power Seat Rear Vertical Up Switch Signal
23	DK GRN	1518	Power Seat Front Vertical Up Switch Signal
24	ORN	1540	Switch Voltage Supply
25	BRN/WHT	5288	Low Reference
26	BLK	570A	Low Reference
