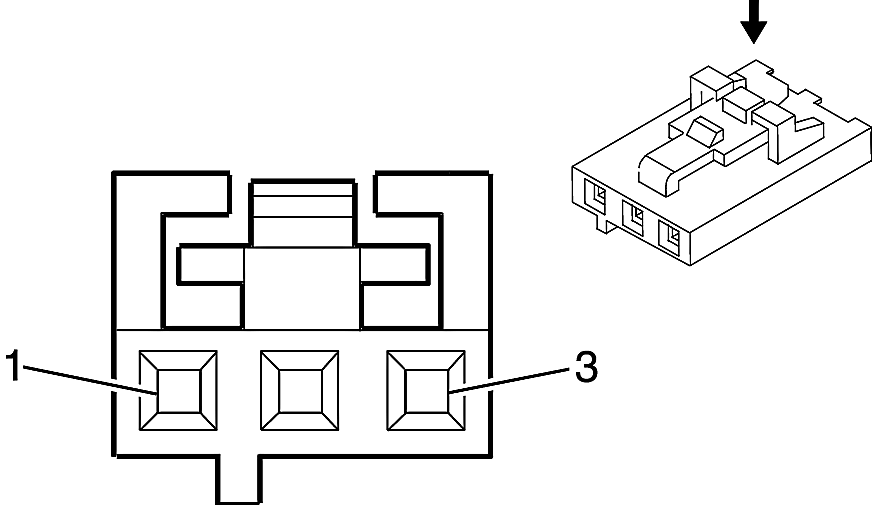

Passlock Sensor Connector End View
Passlock Sensor Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 50579403
- 3-Way F Molex 70066 Series (BLK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
YEL |
1836 |
Security System Sensor Signal |
| 2 |
ORN/BLK |
1835 |
Security System Sensor Low Reference |
| 3 |
RED/WHT |
812 |
12 Volt Reference |
