Rear Window Wiper Module Connector End View

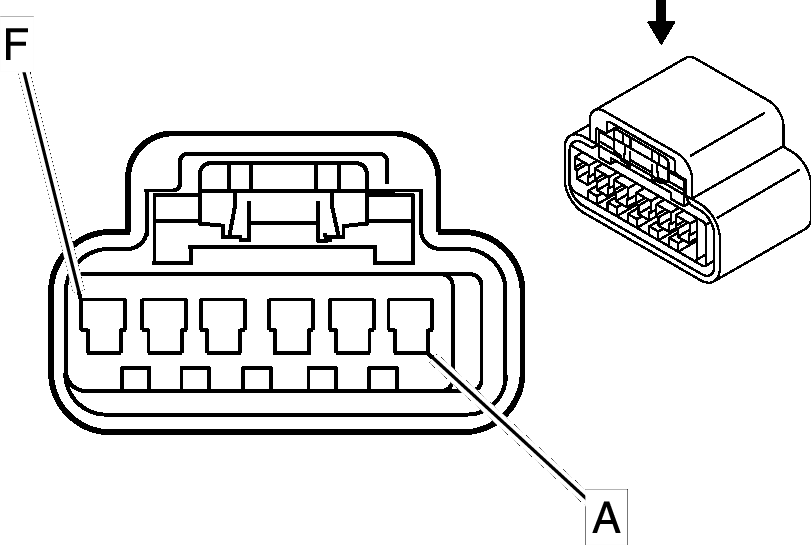

Rear Window Wiper Module

GM831380Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332141
  • 6-Way F GT 150 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 2040 Battery Positive Voltage
B BLK 1450 Ground
C - - Not Used
D WHT 393 Rear Window Washer Switch Signal
E GRY 391 Rear Window Wiper Switch Signal
F PNK/BLK 1303 Liftgate Ajar Switch Signal
