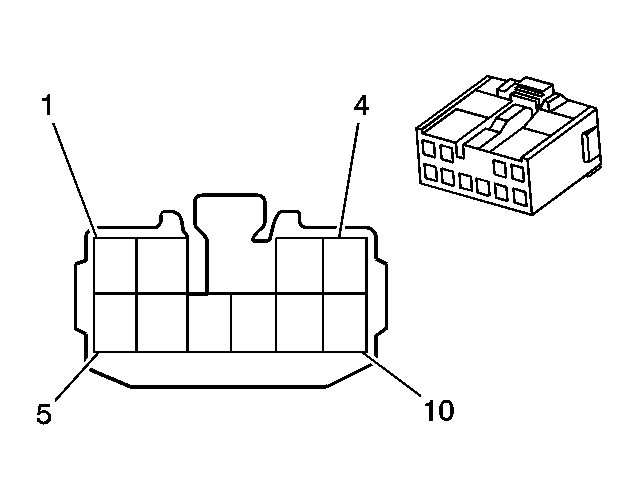

Sunroof Module Connector End View
Sunroof Module Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1-4 | - | - | Not Used |
| 5 | TAN | 755 | Sunroof Relay Switched Output |
| 6 | - | - | Not Used |
| 7 | BLK | 1050 | Ground |
| 8 | - | - | Not Used |
| 9 | BRN | 100 | Sunroof Switch Open Signal |
| 10 | ORN | 110 | Sunroof Switch Close Signal |
