Throttle Actuator Control Module Connector End View C1

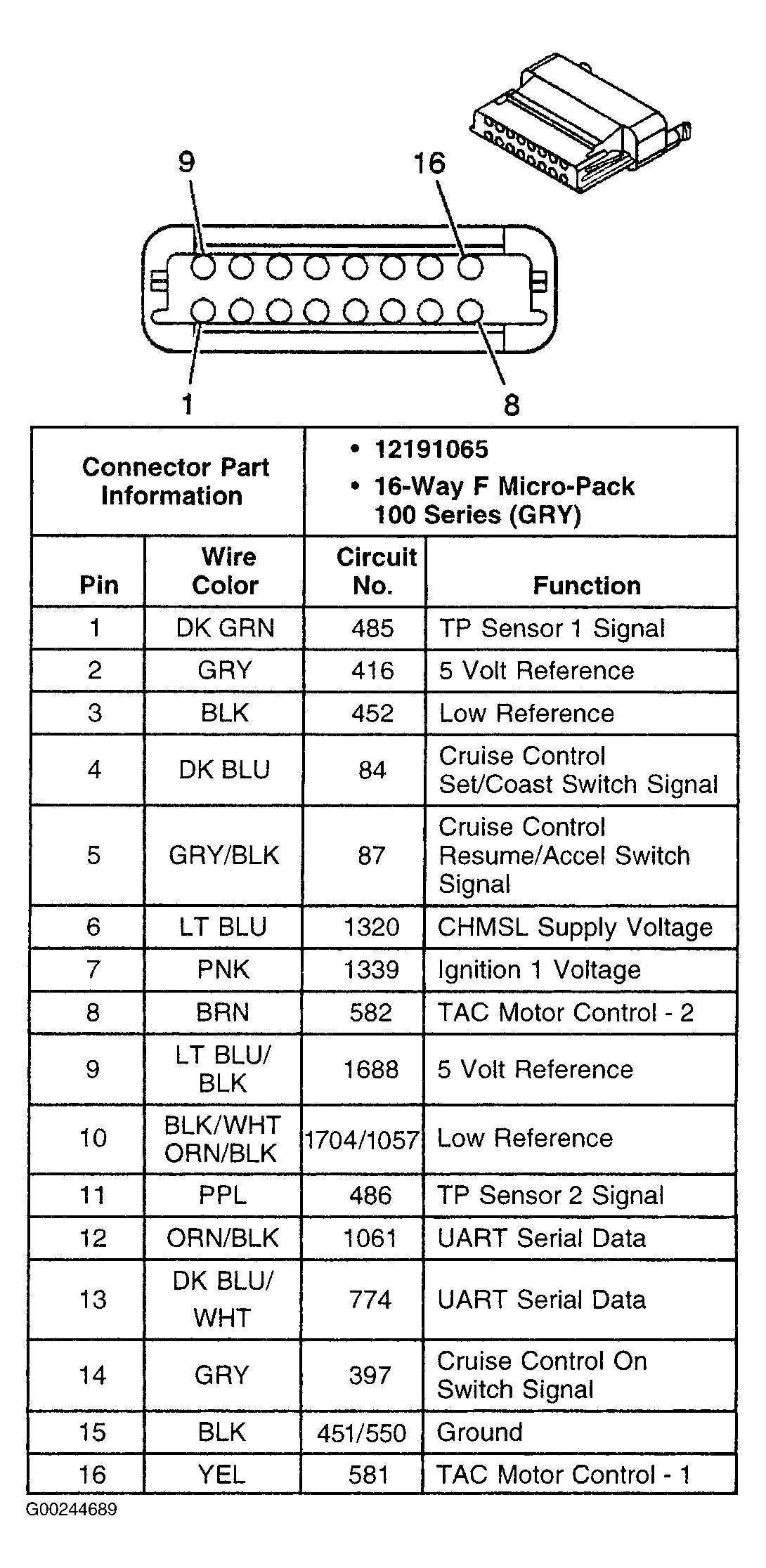

Fig 1: Throttle Actuator Control Module C1 Connector End View
G00244689Courtesy of GENERAL MOTORS CORP.
