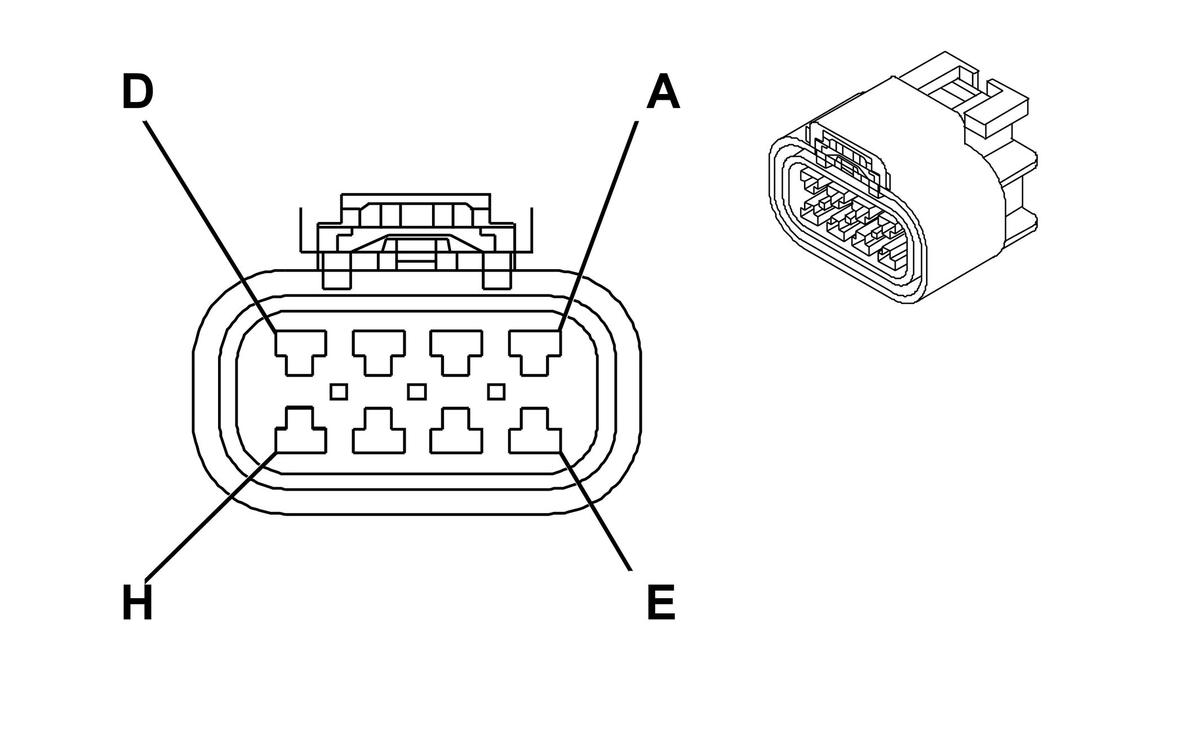

Transfer Case Encoder Motor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326906 8-Way F GT 280 SLD (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK/WHT	1554	Encoder Low Reference
B	BRN/WHT	1555	Channel P Encoder - Signal
C	RED/WHT	1556	Channel C Encoder - Signal
D	BLK	1552	Motor Control B
E	RED	1553	Motor Control A
F	-	-	Not Used
G	YEL/BLK	1558	Channel B Encoder - Signal
H	DK BLU/WHT	1557	Channel A Encoder - Signal
