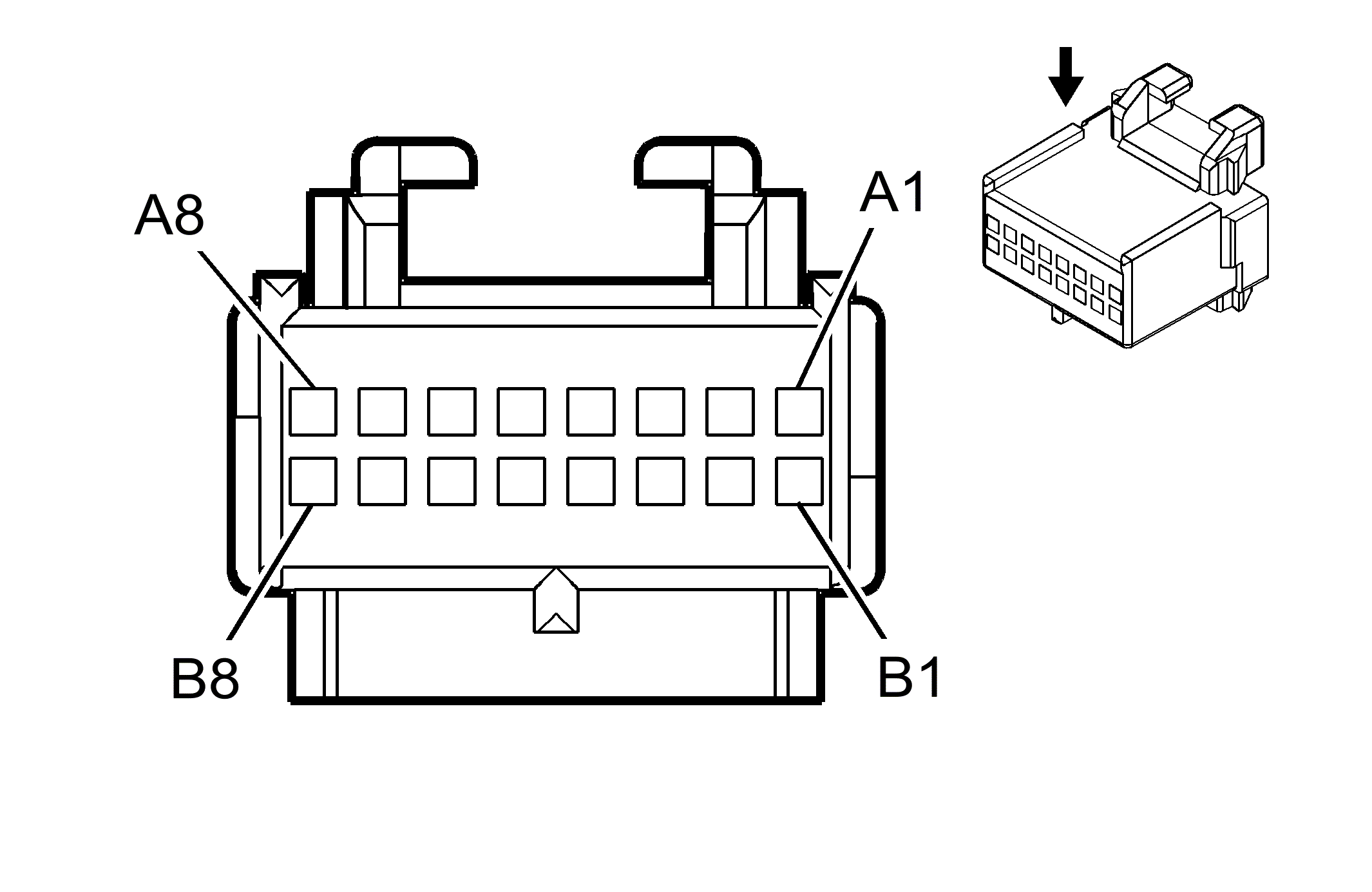

Transfer Case Shift Control Module Connector End View - C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12084944 16-Way F Micro-Pack 100 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A1	DK GRN/WHT	1133	ATC Class 2 Serial Data
A2	LT GRN	2659	Rear Differential Lock - High - Control
A3	PNK	1561	Rear Differential Lock Indicator Control
A4	PPL/WHT	1565	4 'LO' Indicator - Control
A5	TAN/BLK	1566	4 'HI' Indicator - Control
A6	LT BLU	1693	Switch Signal
A7	RED/WHT	1556	Channel C Encoder - Signal
A8	-	-	Not Used
B1	-	-	Not Used
B2	YEL/BLK	1558	Channel B Encoder - Signal
B3	LT GRN/BLK	1563	4 'HI' Indicator - Control
B4	BRN	1560	Neutral Indicator Control
B5	GRY/BLK	1694	4WD Low Signal
B6	BRN/WHT	1555	Channel P Encoder - Signal
B7	-	-	Not Used
B8	BLK	1725	Rear Diffeential Lock - Low - Reference

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12084944 16-Way F Micro-Pack 100 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A1	DK GRN/WHT	1133	ATC Class 2 Serial Data
A2	LT GRN	2659	Rear Differential Lock - High - Control
A3	PNK	1561	Differential Lock Indicator Control
A4	PPL/WHT	1565	4 'LO' Indicator - Control
A5	TAN/BLK	1566	4 'HI' Indicator - Control
A6	LT BLU	1693	Switch Signal
A7	RED/WHT	1556	Channel C Encoder - Signal
A8	-	-	Not Used
B1	-	-	Not Used
B2	YEL/BLK	1558	Channel B Encoder - Signal
B3	LT GRN/BLK	1563	4 HI Indicator - Control
B4	BRN	1560	Neutral Indicator Control
B5	GRY/BLK	1694	4WD Low Signal
B6	BRN/WHT	1555	Channel P Encoder - Signal
B7	-	-	Not Used
B8	BLK	1725	Rear Differential Lock-Low-Reference
