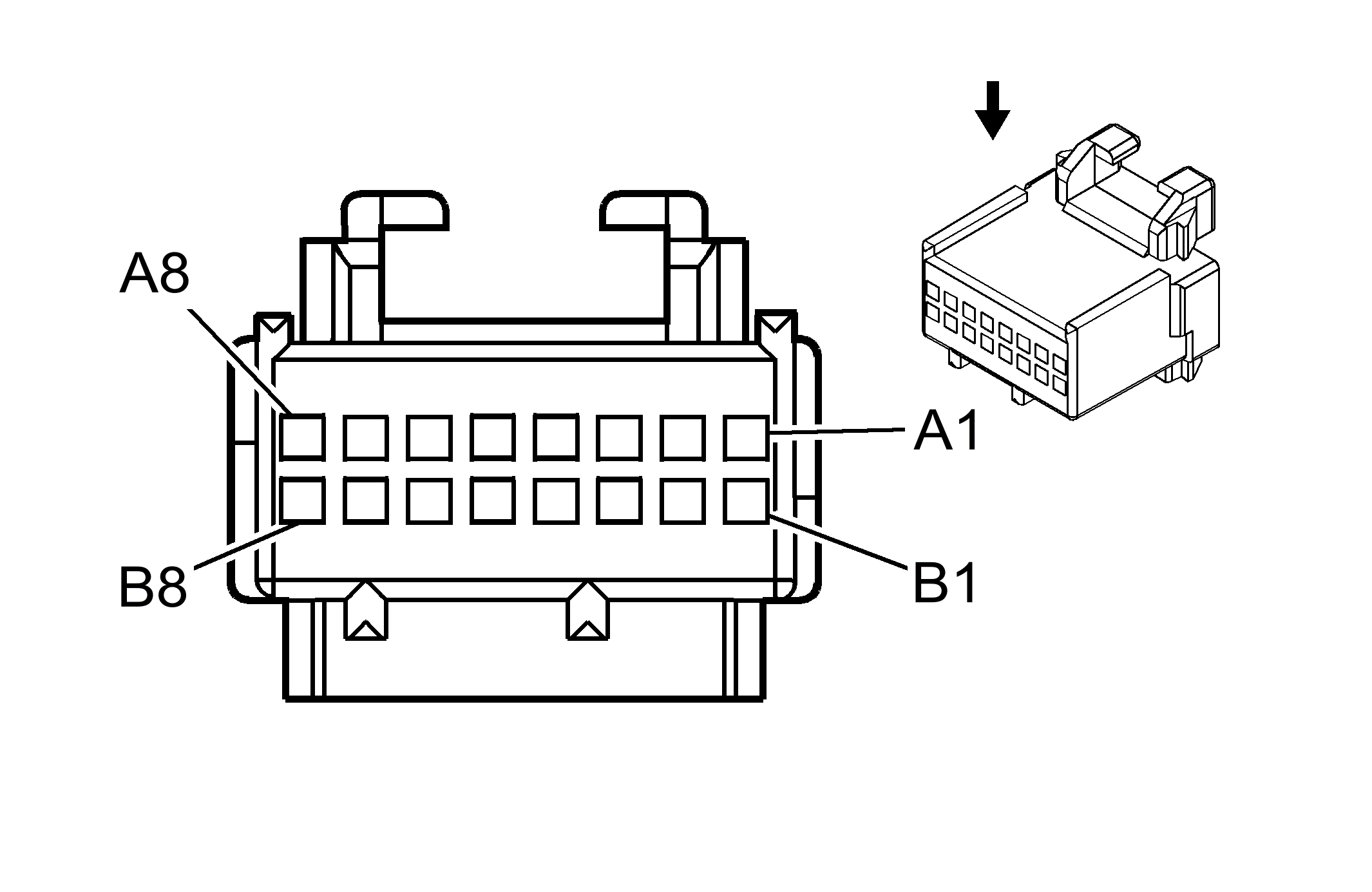

Transfer Case Shift Control Module Connector End View - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12110259 16-Way F Micro-Pack 100 Series (GRN)
Pin	Wire Color	Circuit No.	Function
A1-A7	-	-	Not Used
A8	BLK/WHT	1554	Encoder Low Reference
B1-B5	-	-	Not Used
B6	DK BLU/WHT	1557	Channel A Encoder - Signal
B7	-	-	Not Used
B8	GRY	596	5-Volt Reference

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12110259 16-Way F Micro-Pack 100 Series (GRN)
Pin	Wire Color	Circuit No.	Function
A1-A7	-	-	Not Used
A8	BLK/WHT	1554	Encoder Signal Ground
B1-B5	-	-	Not Used
B6	DK BLU/WHT	1557	Channel A Encoder - Signal
B7	-	-	Not Used
B8	GRY	596	5-Volt Reference
