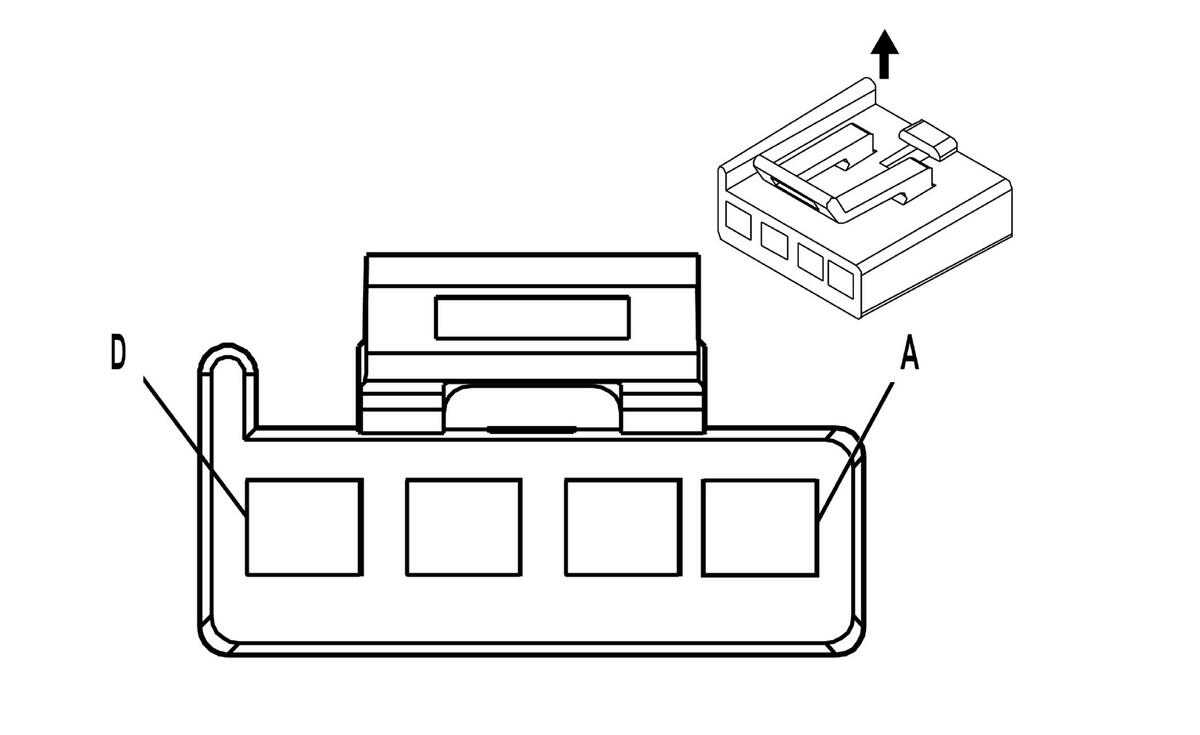

Transfer Case Shift Control Module Connector End View - C3

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052856 4-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1550	Ground
B	ORN	1640	Battery Positive Voltage
C	RED	1553	Motor Control A
D	BLK	1552	Motor Control B

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052856 4-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1550	Ground
B	ORN	1640	Battery Positive Voltage
C	RED	1553	Motor Control B
D	BLK	1552	Motor Control A
