Power Distribution Schematics

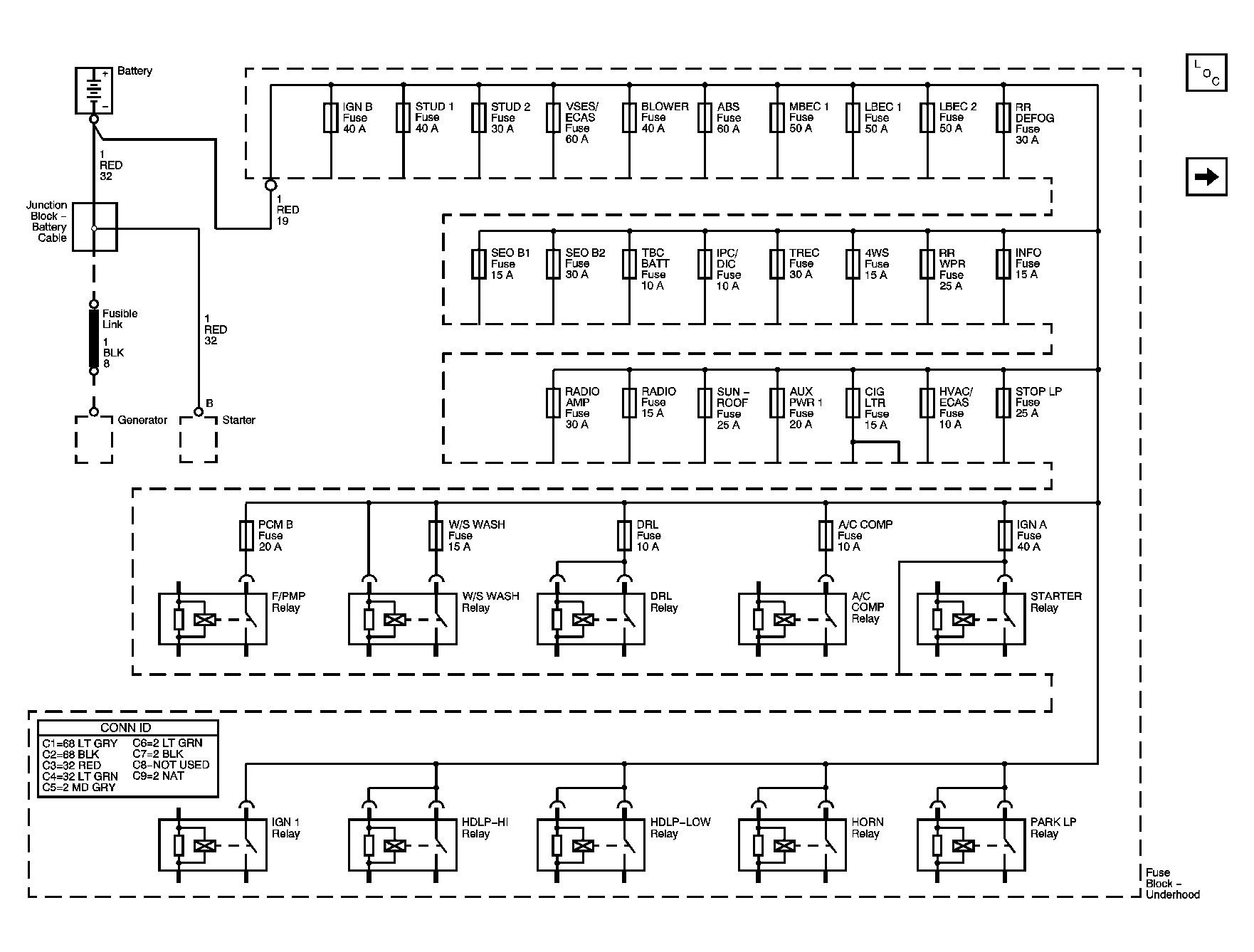

Fig 1: B+ Bus

Courtesy of GENERAL MOTORS CORP.

Fig 2: ACCY/RUN/START, RUN, & START Bus Bars, CRANK Fuse

Courtesy of GENERAL MOTORS CORP.

Fig 3: ACCY/RUN, & RUN/START Bus Bars

Courtesy of GENERAL MOTORS CORP.

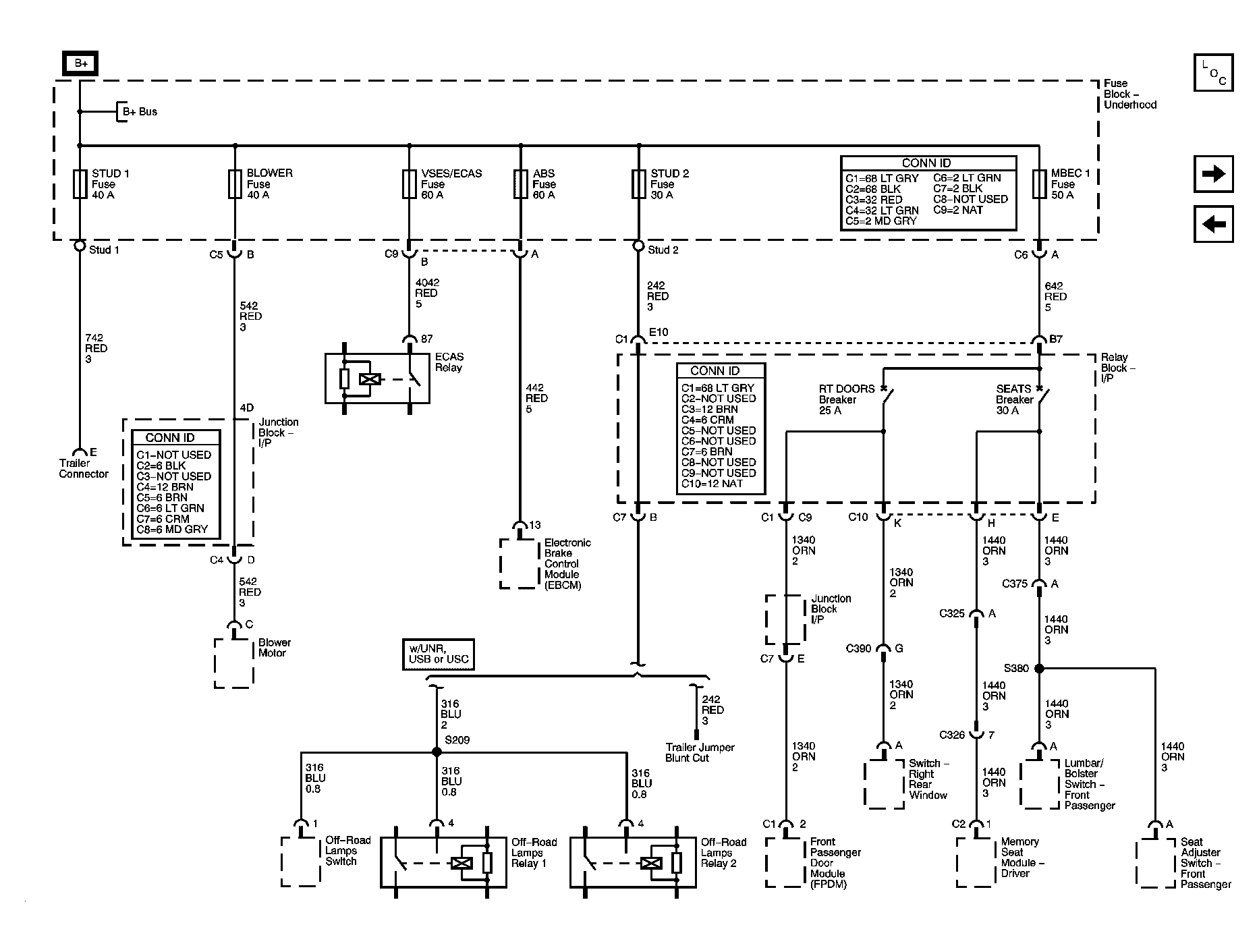

Fig 4: STUD 1, STUD 2, VSES/ECAS, BLOWER, ABS, & MBEC 1 Fuses, RT Doors & Seats Circuit Breakers

Courtesy of GENERAL MOTORS CORP.

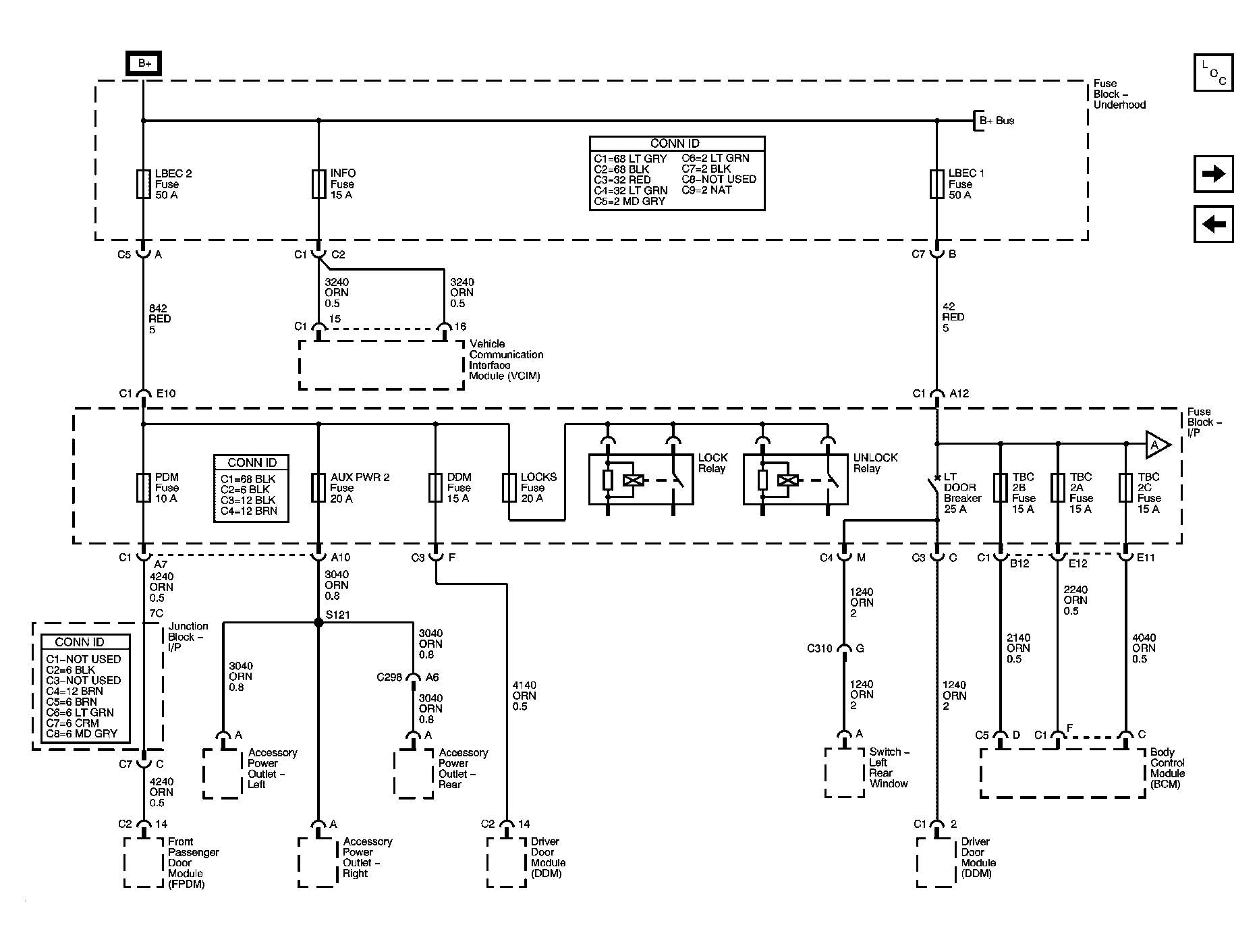

Fig 5: LBEC 1, LBEC 2, INFO, PDM, AUX PWR, DDM, LOCKS, TBC 2A, 2B, & 2C Fuses, & LT DOORS Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

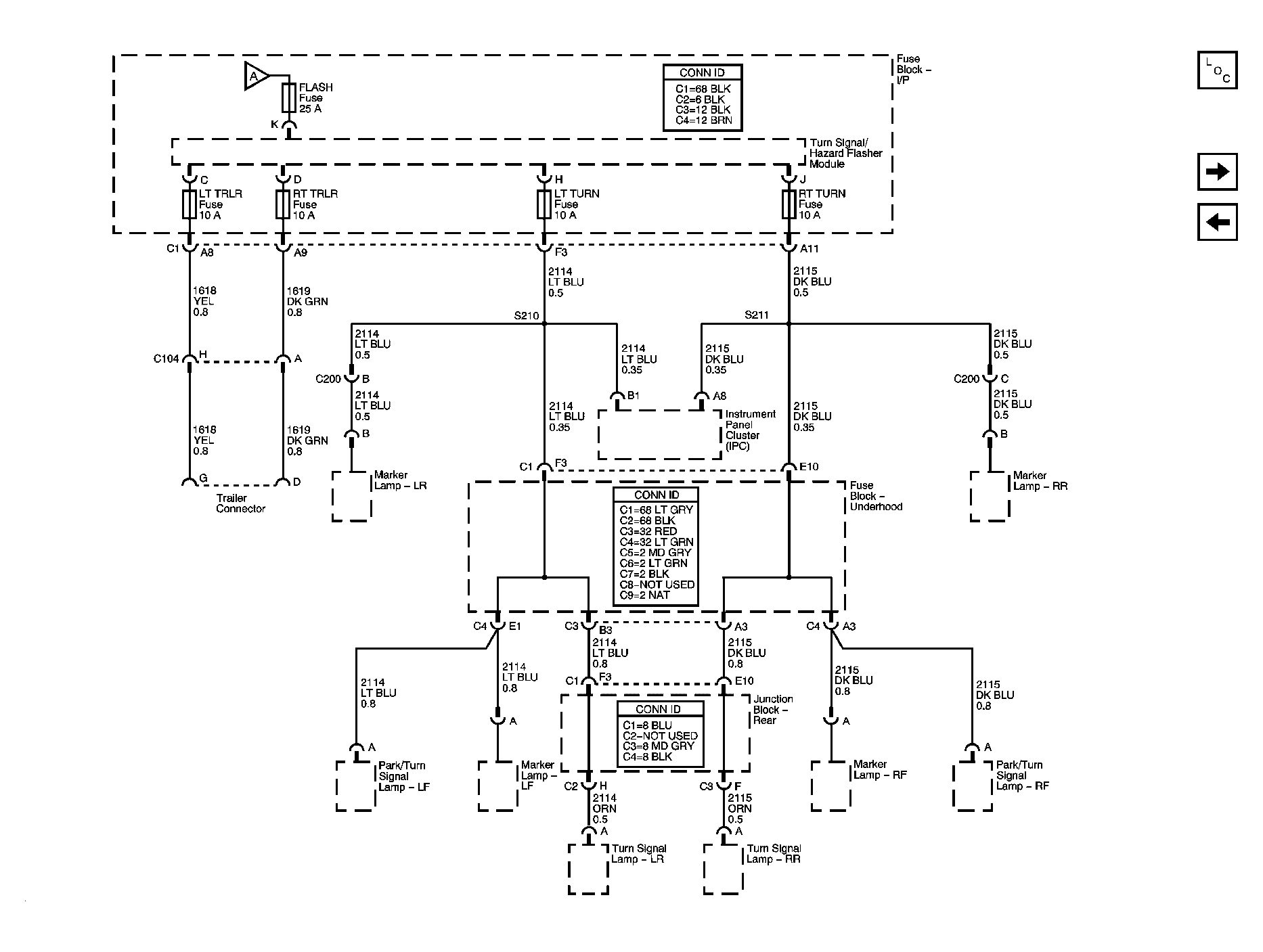

Fig 6: FLASH, LT TRLR, RT TRLR, LT TURN, & RT TURN Fuses

Courtesy of GENERAL MOTORS CORP.

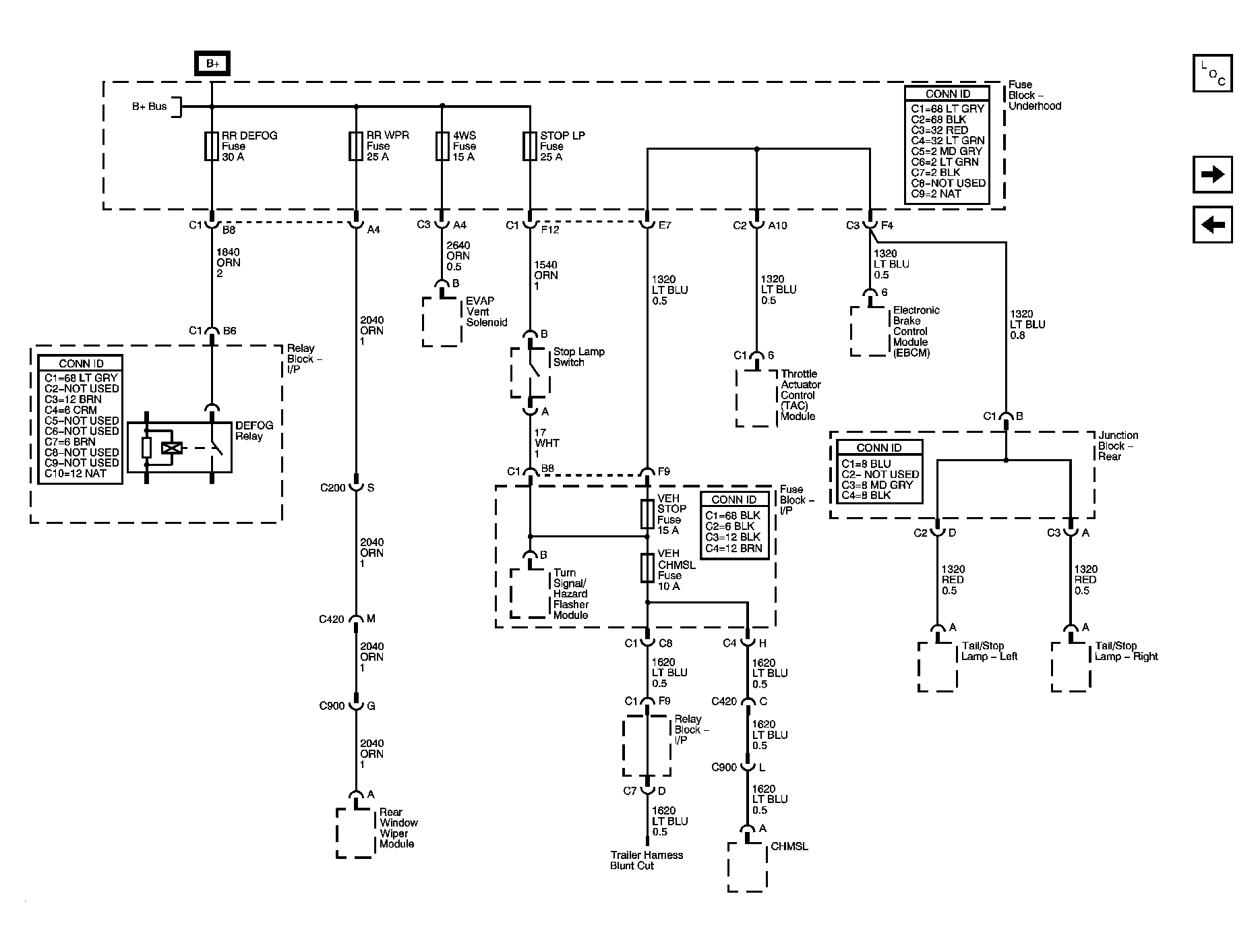

Fig 7: RR DEFOG, RR WPR, STOP LP, STOP, & CHMSL Fuses

Courtesy of GENERAL MOTORS CORP.

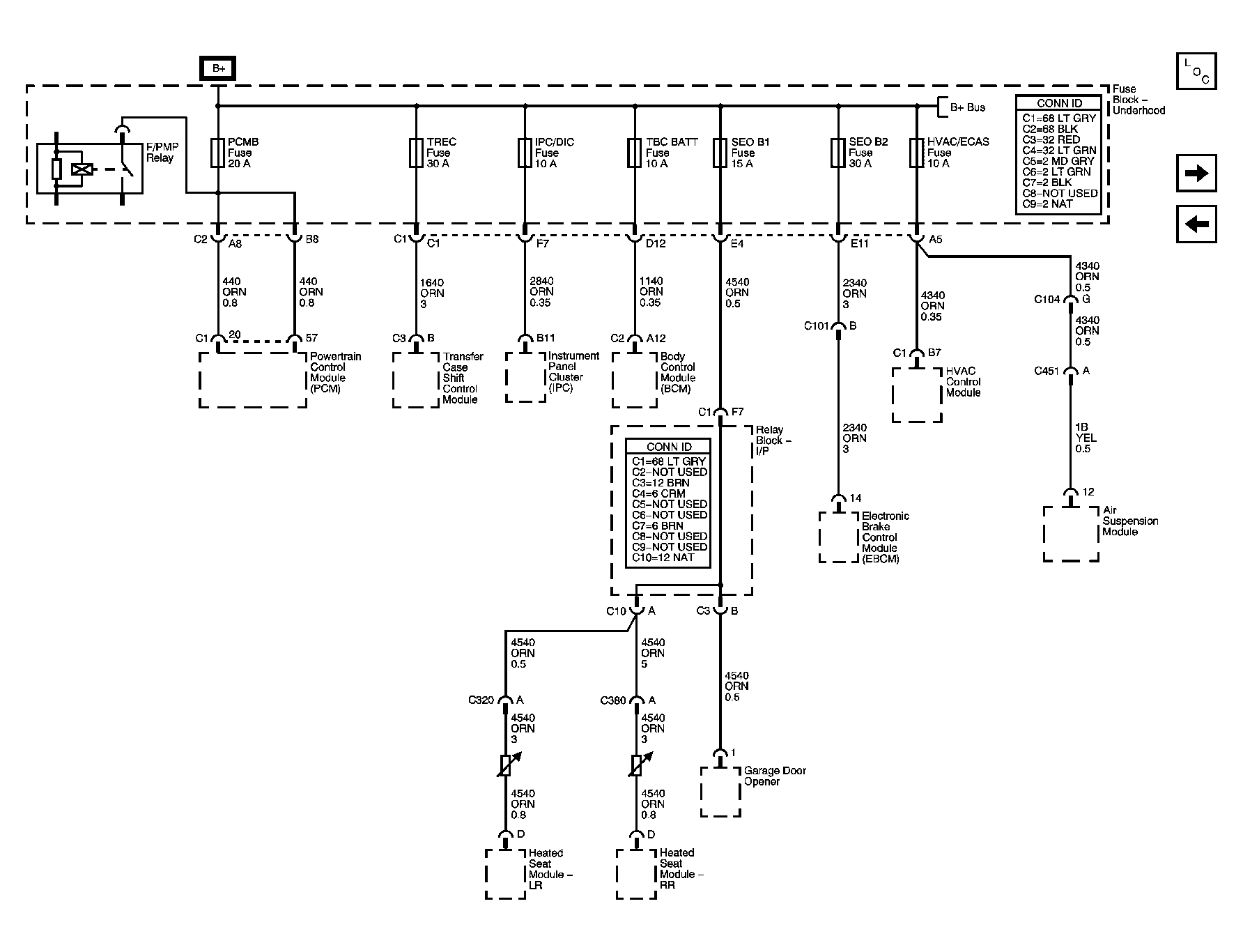

Fig 8: PCMB, TREC, IPC/DIC, TBC BATT, SEO B1, SEO B2, & HVAC/ECAS Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 9: CIG LTR, AUX PWR 1, SUNROOF, RADIO, & RADIO AMP Fuses

Courtesy of GENERAL MOTORS CORP.

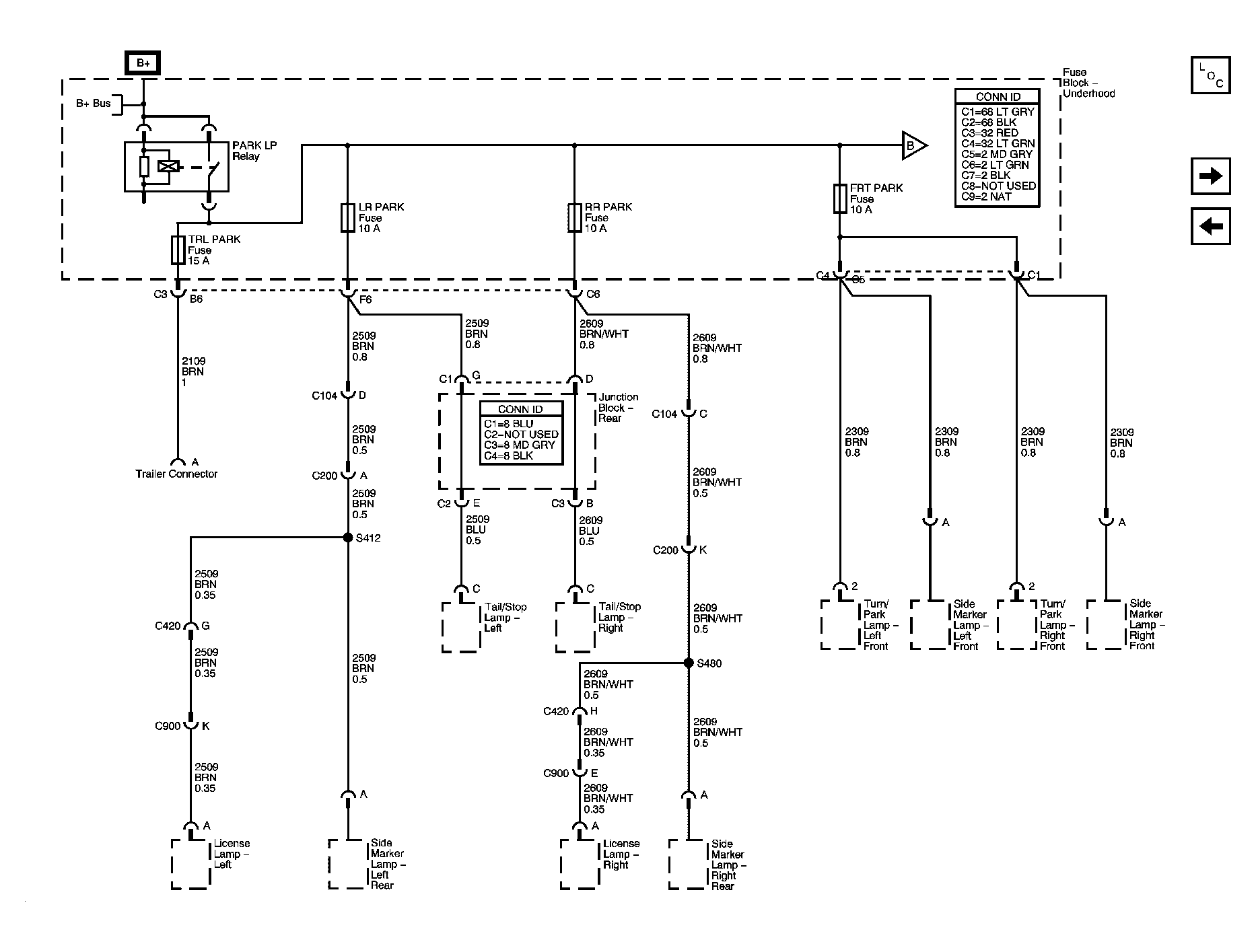

Fig 10: TRL PARK, LR PARK, RR PARK, & FRT PARK Fuses

Courtesy of GENERAL MOTORS CORP.

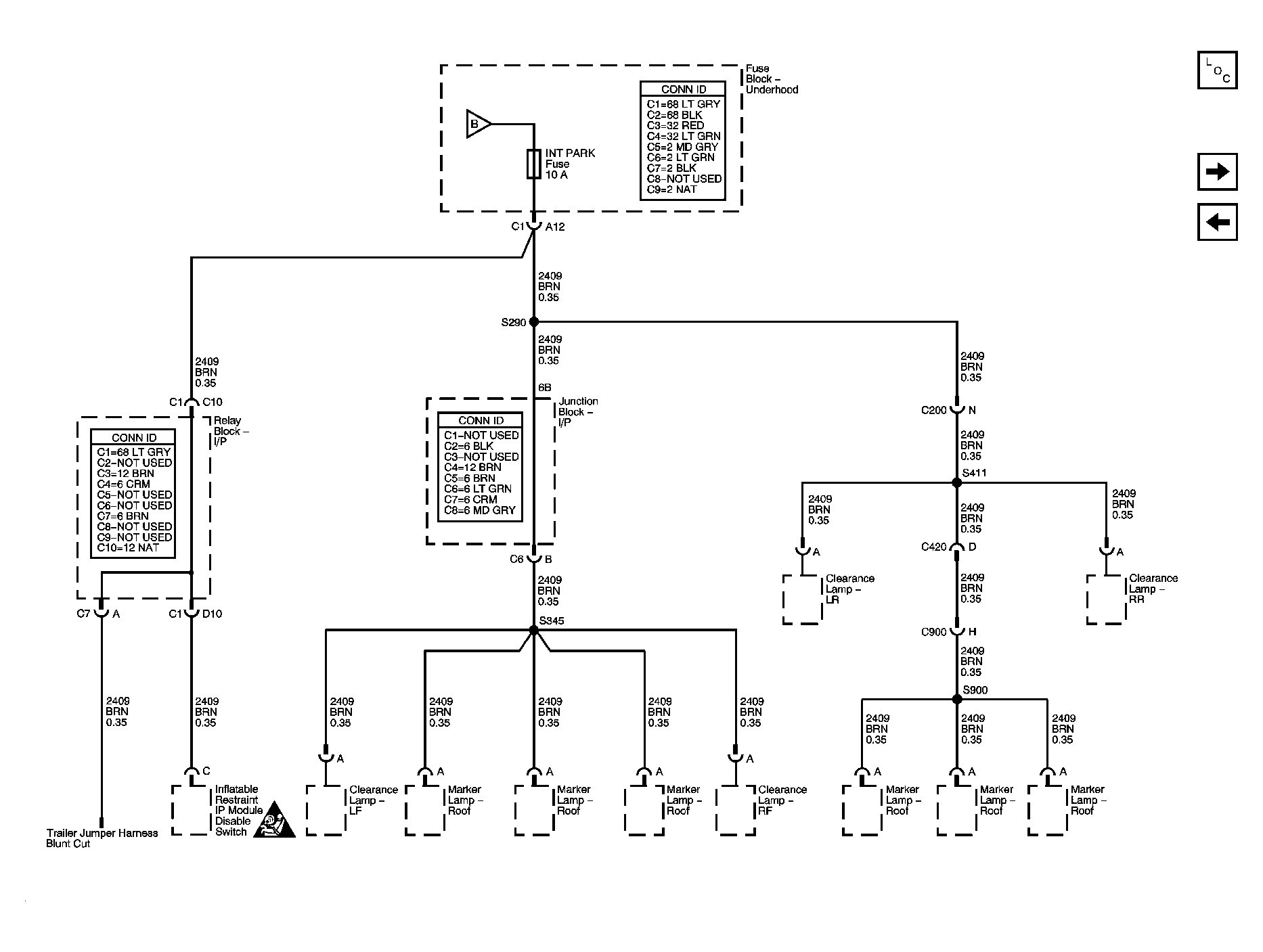

Fig 11: INT PARK Fuse

Courtesy of GENERAL MOTORS CORP.

Fig 12: HORN, LO HDLP LT, LO HDLP RT, HI HDLP RT, & HI HDLP LT Fuses

Courtesy of GENERAL MOTORS CORP.

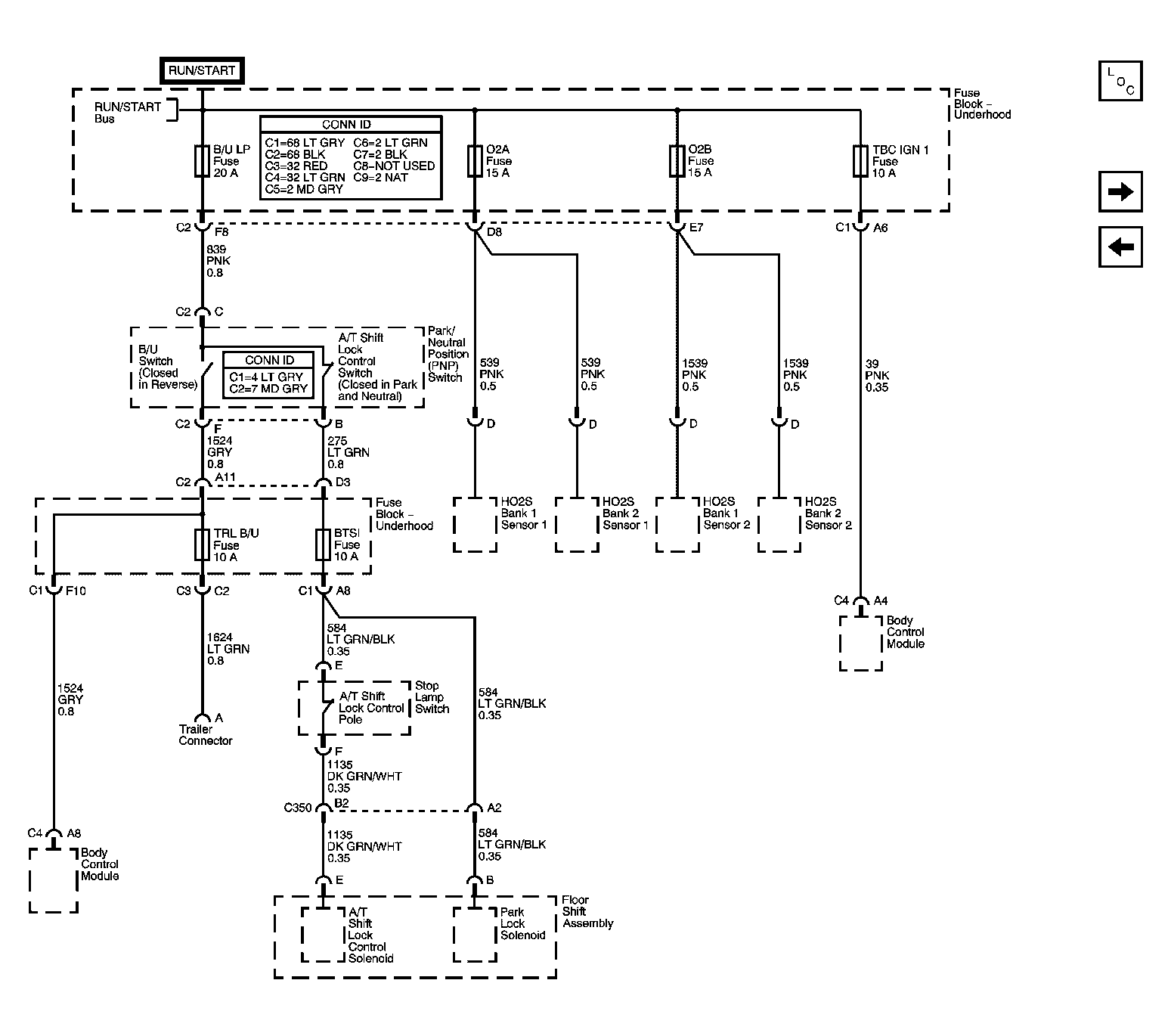

Fig 13: B/U LP, O2A, O2B, TBC IGN1, TRL B/U, & BTSI Fuses

Courtesy of GENERAL MOTORS CORP.

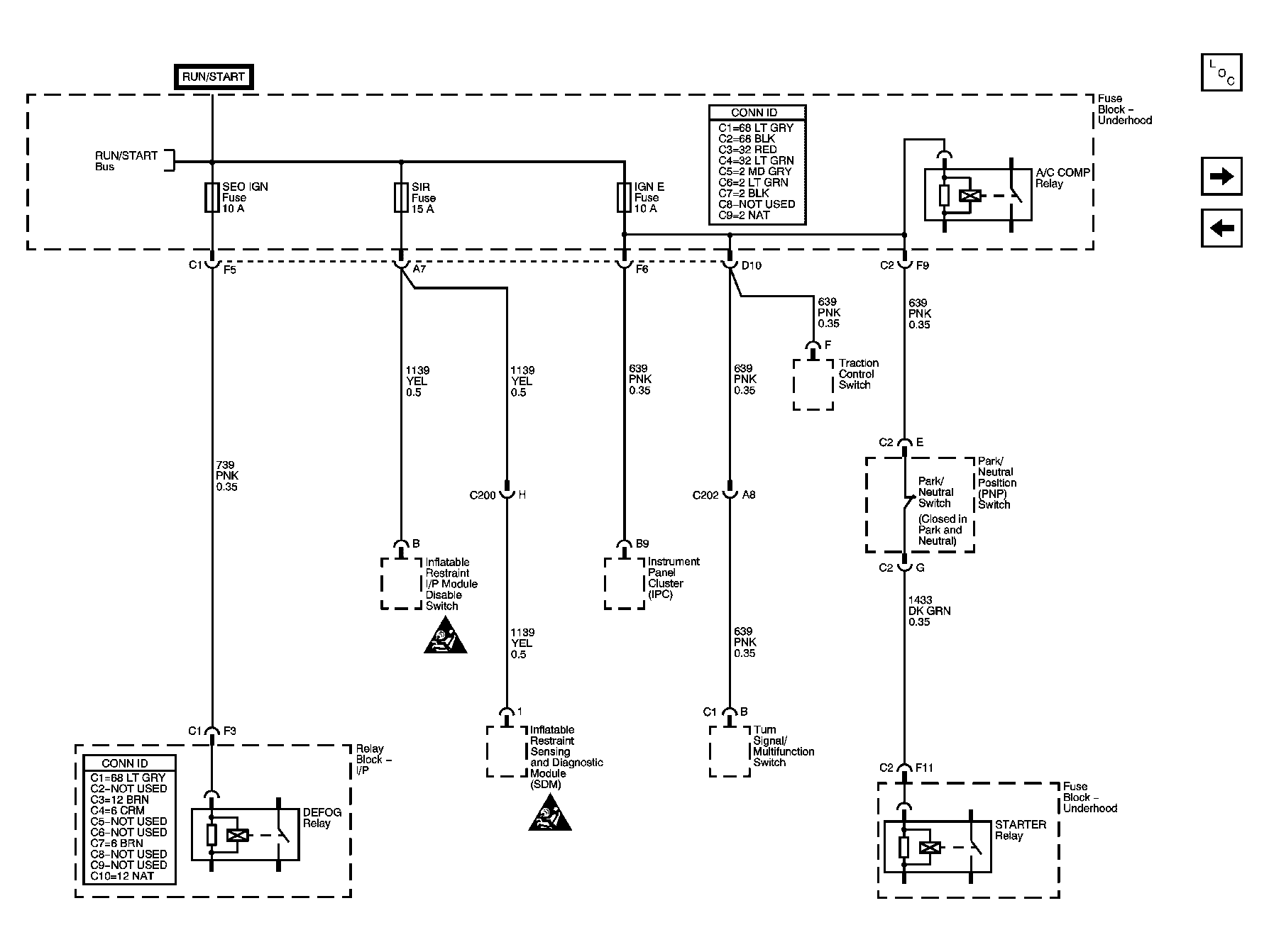

Fig 14: SEO IGN, SIR, & IGN E Fuses

Courtesy of GENERAL MOTORS CORP.

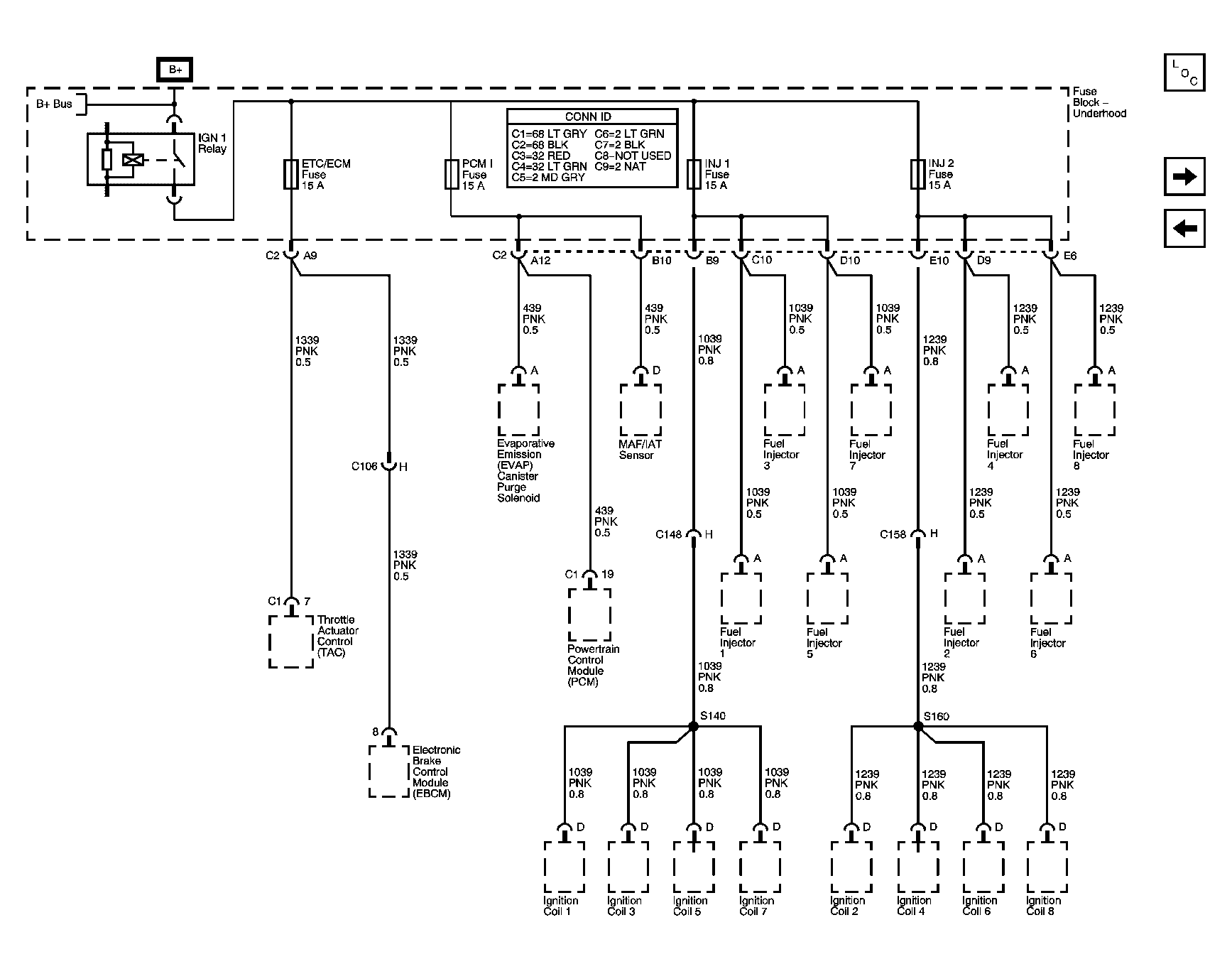

Fig 15: ETC/ECM, PCM I, INJ 1, & INJ 2 Fuses

Courtesy of GENERAL MOTORS CORP.

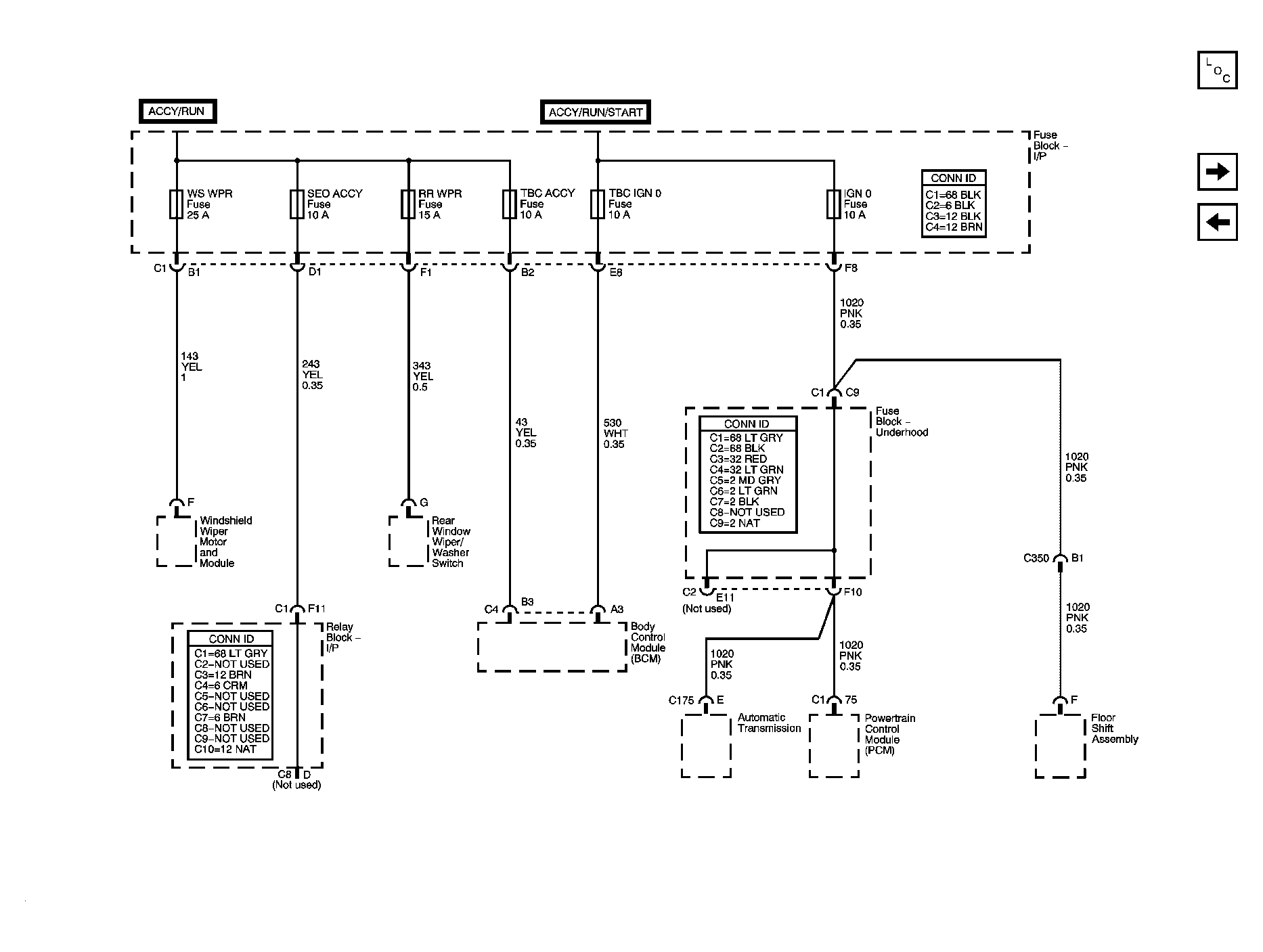

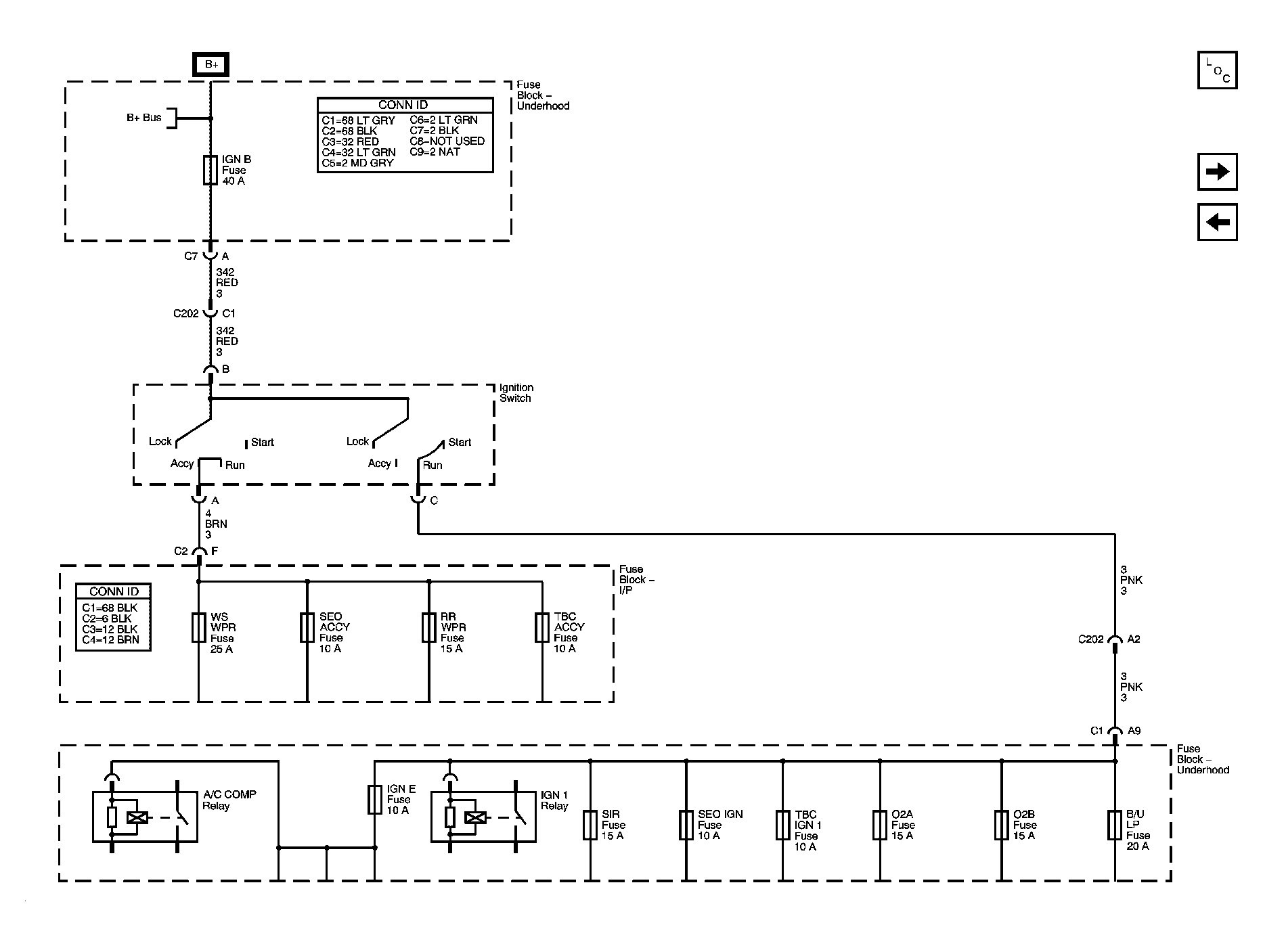

Fig 16: WS WPR, SEO ACCY, RR WPR, TBC ACCY, TBC IGN 0, & IGN 0 Fuses

Courtesy of GENERAL MOTORS CORP.

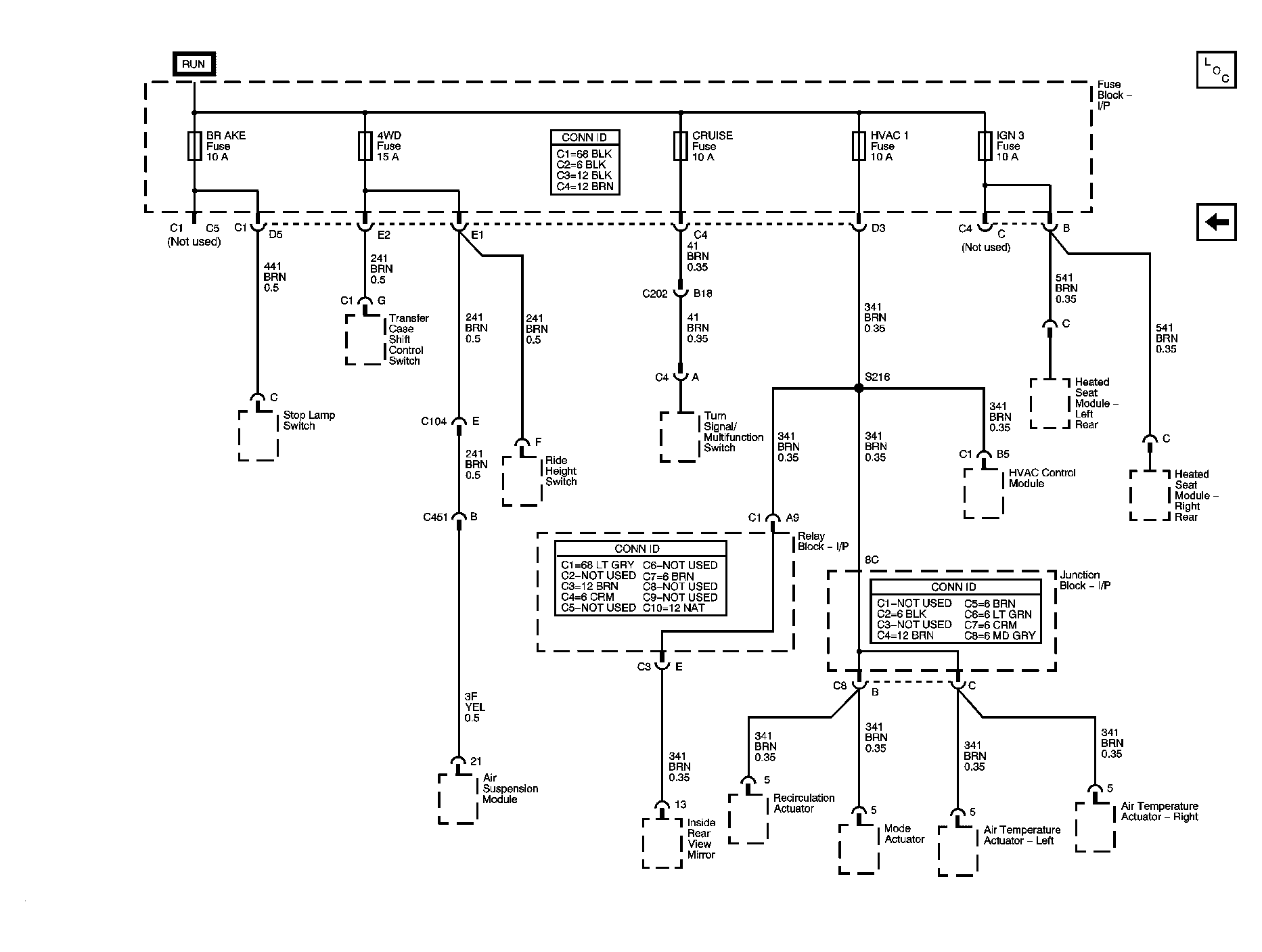

Fig 17: BRAKE, 4WD, CRUISE, HVAC 1, & IGN 3 Fuses

Courtesy of GENERAL MOTORS CORP.
