Engine Electrical Component Views

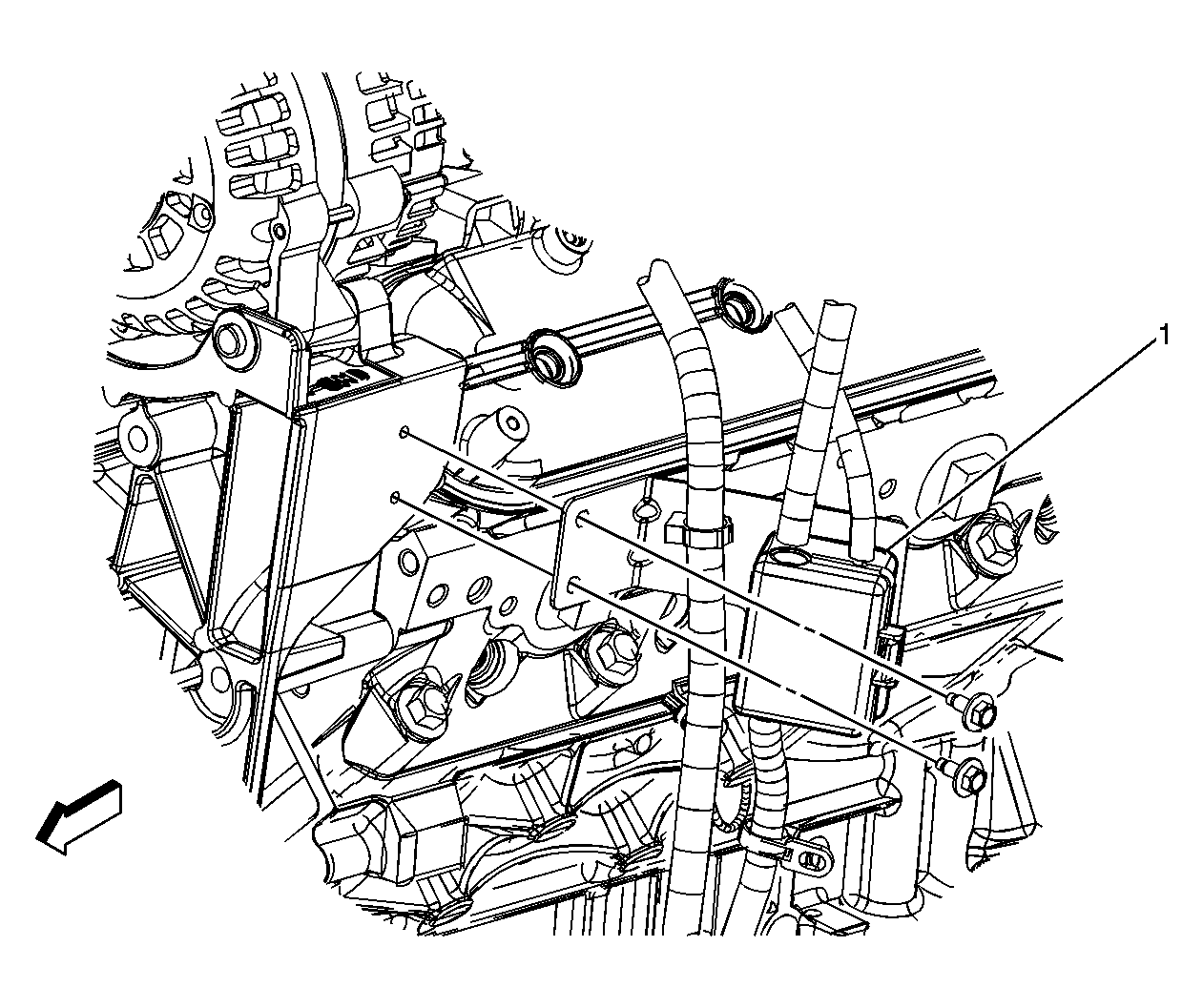

Fig 1: Junction Block-Battery Cable Component View
GM861556Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Junction Block-Battery Cable

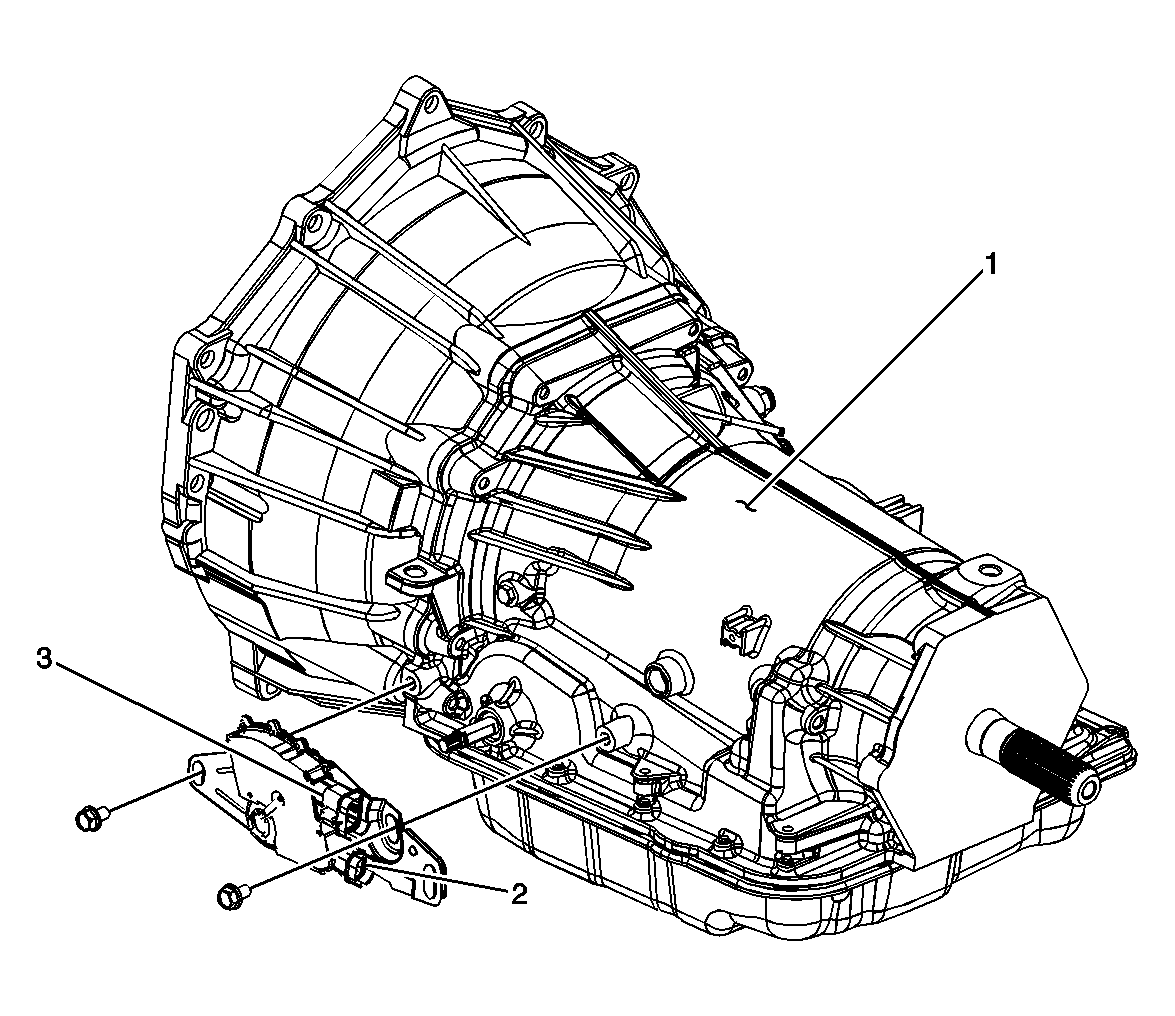

Fig 2: Park Neutral Position (PNP) Switch Component View
GM828735Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Transmission 4L60-E
2 PNP Switch-C1
3 PNP Switch-C2
