Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| Air Temperature Actuator (Left) | Attached to lower middle underside of HVAC assembly, below evaporator. See Figure . |
| Air Temperature Actuator (Right) | At middle top of HVAC assembly, above evaporator. See Figure . |
| Blower Motor | At right lower side of dash, on HVAC assembly. |

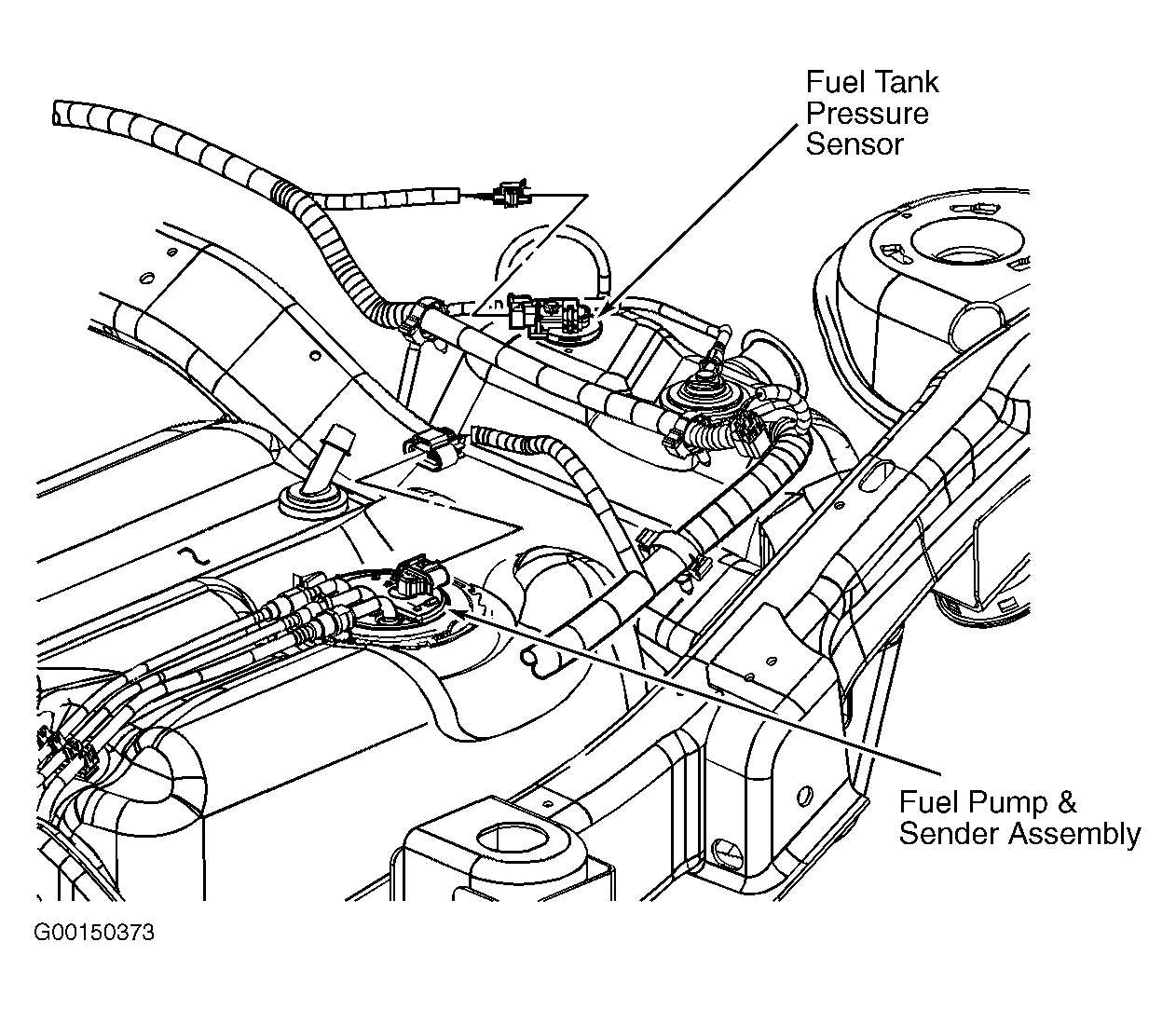

| Fuel Pump & Sender Assembly | In fuel tank. See Figure . |
| Mode Actuator | On left side of HVAC assembly. See Figure . |
| Recirculation Actuator | On top front of HVAC assembly. See Figure . |
| Throttle Actuator Control Assembly | Mounted to throttle body assembly, on top of engine. |
| Throttle Actuator Control Motor | Mounted to throttle body assembly, on top of engine. |
| Windshield Washer Fluid Pump (Reversible) | In washer fluid reservoir. |
