Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|

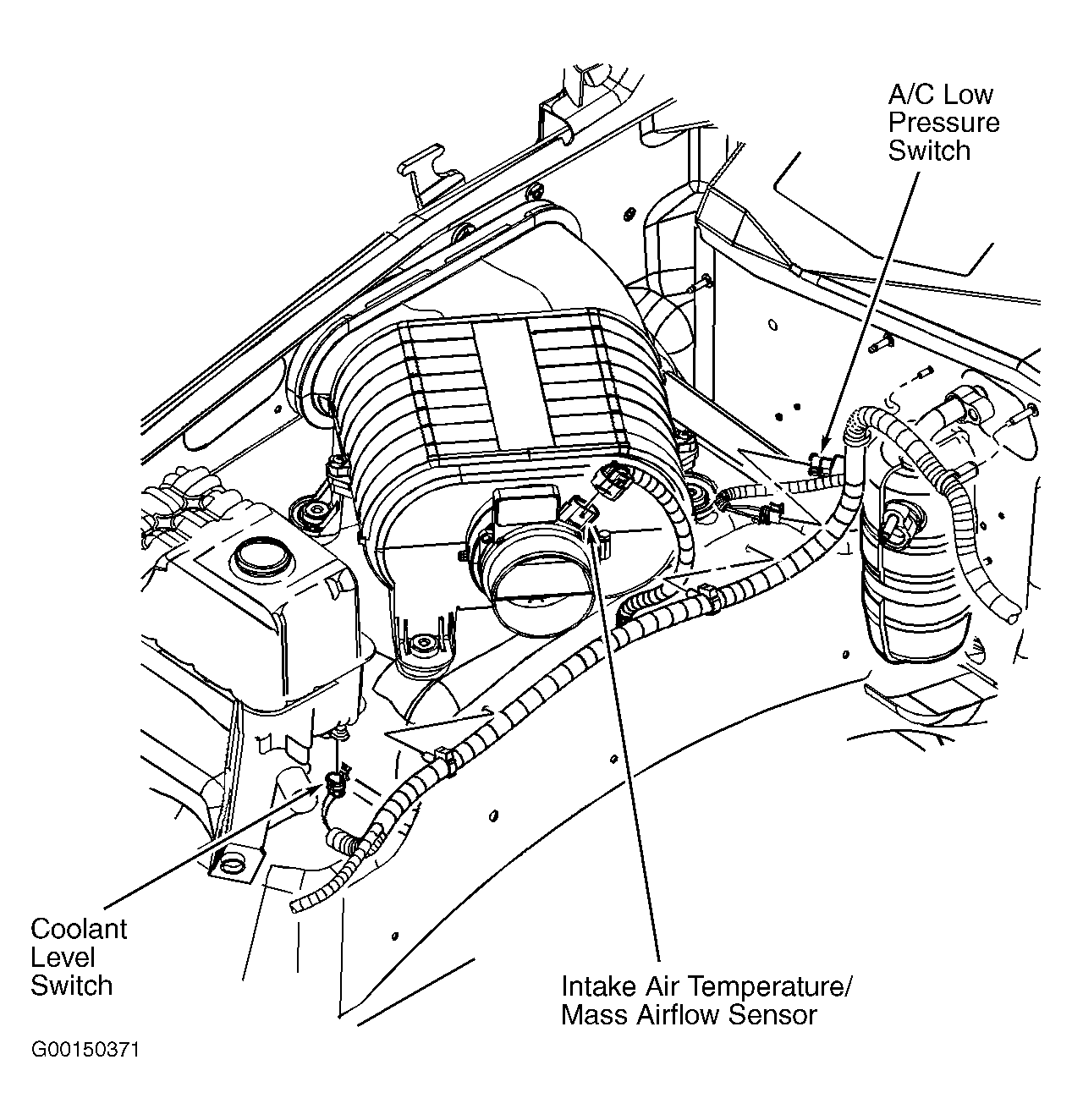

| A/C Low Pressure Switch | On right side of accumulator. See Figure . |
| Automatic Transmission Fluid Pressure Manual Valve Position Switch | In automatic transmission. |
| Brake Fluid Level Switch | On left side of brake fluid reservoir. |
| Coolant Level Switch | In coolant reservoir. See Figure . |
| Engine Oil Level Switch | On lower right side of oil pan. |
| Ignition Key Alarm Switch | On ignition key cylinder. |
| Malfunction Switch | At left side of steering column. |
| Park Brake Switch | Part of park brake assembly. |
| Park/Neutral Position Switch | On left side of transmission. |
| Stoplamp Switch | On top of brake pedal bracket. |
| Turn Signal/Multifunction Switch | On left side of steering assembly. |
